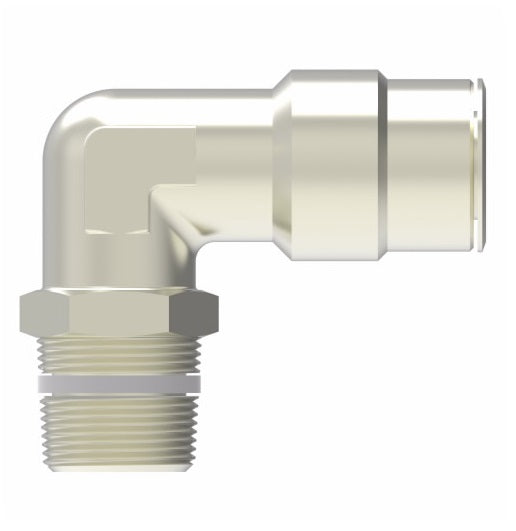

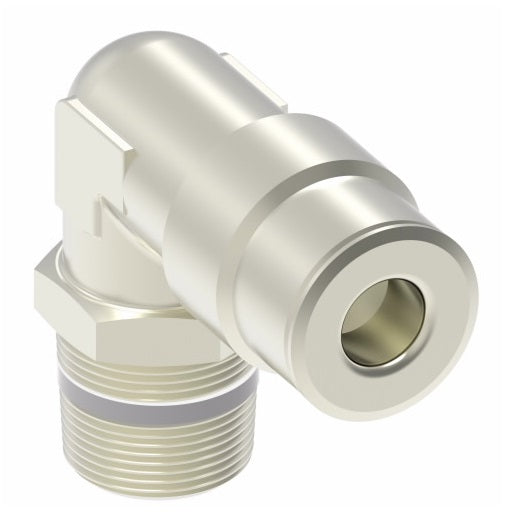

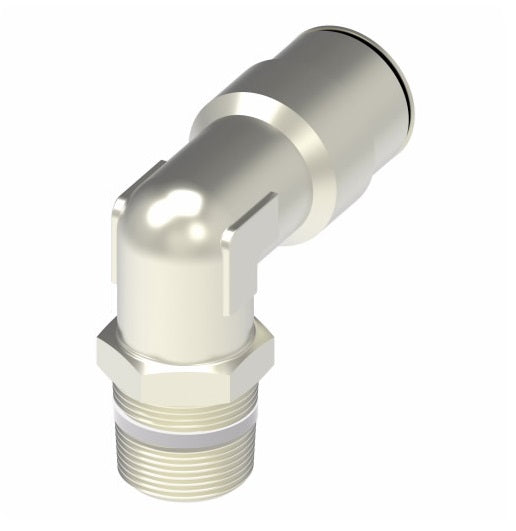

1169x6Mx4PT Aeroquip by Danfoss | -06 Universal BSPT/BSPP x 1/4" Thread Size | 90° Elbow | Brass
1169x6Mx4PT Aeroquip by Danfoss | -06 Universal BSPT/BSPP x 1/4" Thread Size | 90° Elbow | Brass
1169x6Mx4PT Aeroquip by Danfoss | -06 Universal BSPT/BSPP x 1/4" Thread Size | 90° Elbow | Brass

1169x6Mx4PT Aeroquip by Danfoss | -06 Universal BSPT/BSPP x 1/4" Thread Size | 90° Elbow | Brass

Sale price$8.88

Push to Connect - Metric

Male Elbow (Universal BSPT/BSPP)- Brass
Buy More, Save More!
Quantity Price Each
10–39 $8.35
40–79 $7.55
80+ $6.66
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Material(s):
  • Nickel-Plated Brass
Typical Applications:
  • Compressed air
  • Pneumatic instrumentation
  • Circuit
  • Lubricant and cooling lines
Advantages: Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Hex Dimensions: All hexes are in inches.
Pressure: Up to 250 psi depending on tube size.
Sealing Method: O-Ring of Buna-N construction
TemperatureRange: When using compatible plastic tubing do not exceed the tubing temperature range. (Refer to tubing temperature range.)
Vacuum: Fittings rated at 29.5 inches of mercury vacuum.
Material: Brass, Nickel Plated
Used with: PT230 and TP160 nylon and PT240 Polyethylene tubing. Material Compatibility
Tube O.D.mm Thread Size BSP Part No.
6 1/4 1169x6Mx4PT


Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
