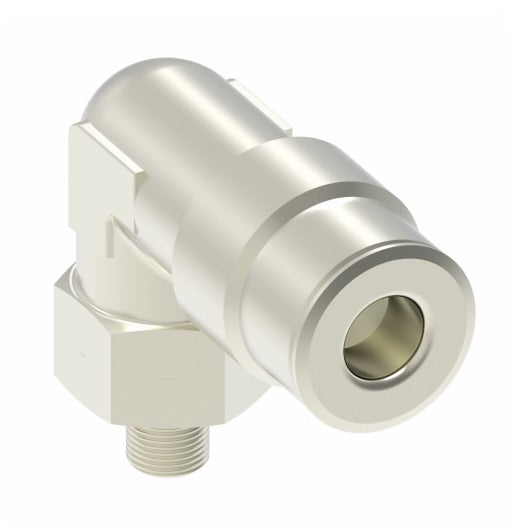

1169X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male 90° Elbow | 4mm Tube OD x M5 Male Metric | Nickel Plated Brass
1169X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male 90° Elbow | 4mm Tube OD x M5 Male Metric | Nickel Plated Brass
1169X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male 90° Elbow | 4mm Tube OD x M5 Male Metric | Nickel Plated Brass

1169X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male 90° Elbow | 4mm Tube OD x M5 Male Metric | Nickel Plated Brass

Sale price$14.17

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male

Buy More, Save More!
Quantity Price Each
10–39 $13.32
40–79 $12.04
80+ $10.63
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Material(s):
  • Nickel Plated Brass
Special Properties:
  • Swivel
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male Metric
Screw Thread Size		 C E F H M SW
(mm)		 SW1
(mm)
1169X4MX5MMS 4mm M5* 6mm 12.5mm 11.0mm 4mm 21mm 9mm 8mm
1169X5MX5MMS 5mm M5* 4mm 13.0mm 12.7mm 4mm 20mm 9mm 10mm
