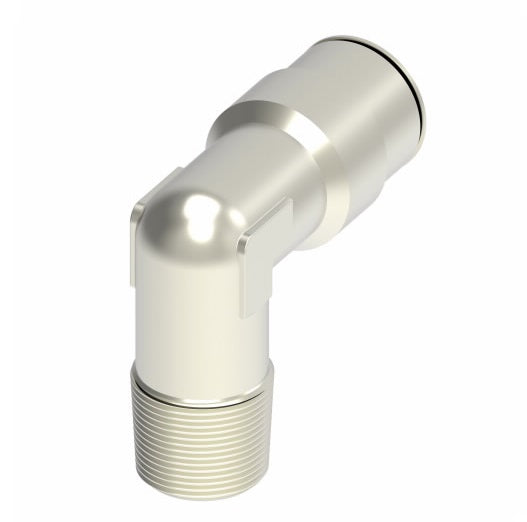

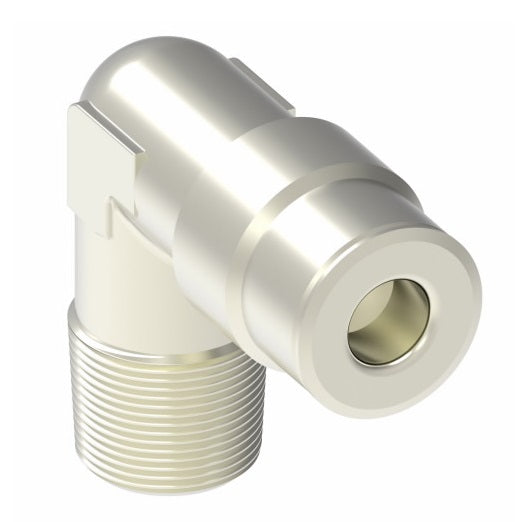

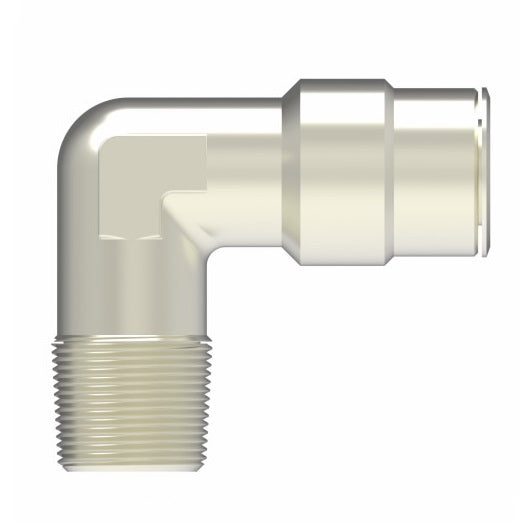

1169X4 by Danfoss | Push to Connect Adapter | Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Nickel Plated Brass
1169X4 by Danfoss | Push to Connect Adapter | Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Nickel Plated Brass
1169X4 by Danfoss | Push to Connect Adapter | Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Nickel Plated Brass

1169X4 by Danfoss | Push to Connect Adapter | Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Nickel Plated Brass

Minimum Order Quantity: 5 Units

Sale price$7.81

Aeroquip® by Danfoss
Push to Connect Adapter - Male Pipe
Buy More, Save More!
Quantity Price Each
20–39 $7.34
40–79 $6.64
80+ $5.86
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/8in Male NPTF
Material(s):
  • Nickel Plated Brass
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Male Pipe Thread C E F H M SW
(mm)
1169X4 1/4" 1/8" 0.16" 0.57" 0.50" 0.47" 0.79" 9
1169X4X4 1/4" 1/4" 0.16" 0.47" 0.50" 0.47" 0.79" 9
1169X6 3/8" 1/4" 0.26" 0.55" 0.65" 0.47" 1.04" 13
1169X6X6 3/8" 3/8" 0.26" 0.51" 0.65" 0.47" 1.04" 13
