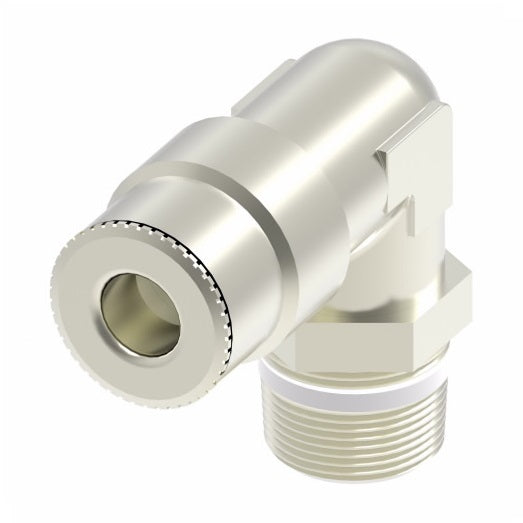

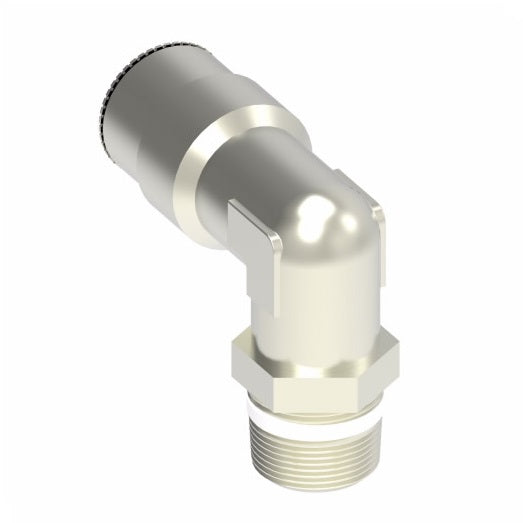

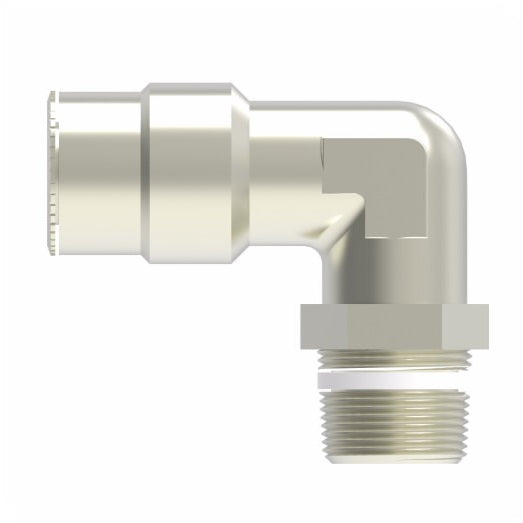

1169PX5X4S by Danfoss | Push to Connect Plus Adapter | Swivel Male 90° Elbow | 5/16" Tube OD x 1/4" Male Pipe | Nickel Plated Brass
Aeroquip® by Danfoss
Push to Connect Plus Adapter - Swivel Male
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.60 |
| 40–79 | $10.49 |
| 80+ | $9.26 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
| Overview: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nickel Plated Brass Part Number |
Tube O.D. | Male Pipe Thread |
C | E | F | H | M | SW mm |
SW1 mm |
| 1169PX2S | 1/8" | 1/8" | 0.14" | 0.59" | 0.35" | 0.20" | 0.69" | 8mm | 12mm |
| 1169PX2X4S | 1/8" | 1/4" | 0.14" | 0.63" | 0.35" | 0.26" | 0.69" | 8mm | 14mm |
| 1169PX2.5S | 5/32" | 1/8" | 0.14" | 0.59" | 0.35" | 0.20" | 0.69" | 8mm | 12mm |
| 1169PX2.5X4S | 5/32" | 1/4" | 0.14" | 0.63" | 0.35" | 0.26" | 0.69" | 8mm | 14mm |
| 1169PX4S | 1/4" | 1/8" | 0.16" | 0.63" | 0.46" | 0.20" | 0.79" | 9mm | 12mm |
| 1169PX4X4S | 1/4" | 1/4" | 0.16" | 0.65" | 0.46" | 0.26" | 0.79" | 9mm | 14mm |
| 1169PX4X6S | 1/4" | 3/8" | 0.16" | 0.65" | 0.46" | 0.29" | 0.79" | 9mm | 19mm |
| 1169PX5S | 5/16" | 1/8" | 0.20" | 0.65" | 0.54" | 0.20" | 0.89" | 11mm | 12mm |
| 1169PX5X4S | 5/16" | 1/4" | 0.20" | 0.69" | 0.54" | 0.26" | 0.89" | 11mm | 14mm |
| 1169PX5X6S | 5/16" | 3/8" | 0.20" | 0.69" | 0.54" | 0.29" | 0.89" | 11mm | 19mm |
| 1169PX6X2S | 3/8" | 1/8" | 0.26" | 0.75" | 0.64" | 0.20" | 1.04" | 13mm | 14mm |
| 1169PX6S | 3/8" | 1/4" | 0.26" | 0.77" | 0.64" | 0.26" | 1.04" | 13mm | 14mm |
| 1169PX6X6S | 3/8" | 3/8" | 0.26" | 0.77" | 0.64" | 0.29" | 1.04" | 13mm | 19mm |
| 1169PX6X8S | 3/8" | 1/2" | 0.26" | 0.79" | 0.64" | 0.34" | 1.04" | 13mm | 22mm |
| 1169PX8X4S | 1/2" | 1/4" | 0.32" | 0.81" | 0.72" | 0.26" | 1.12" | 15mm | 17mm |
| 1169PX8S | 1/2" | 3/8" | 0.32" | 0.81" | 0.72" | 0.29" | 1.12" | 15mm | 19mm |
| 1169PX8X8S | 1/2" | 1/2" | 0.32" | 0.83" | 0.72" | 0.36" | 1.12" | 15mm | 22mm |
