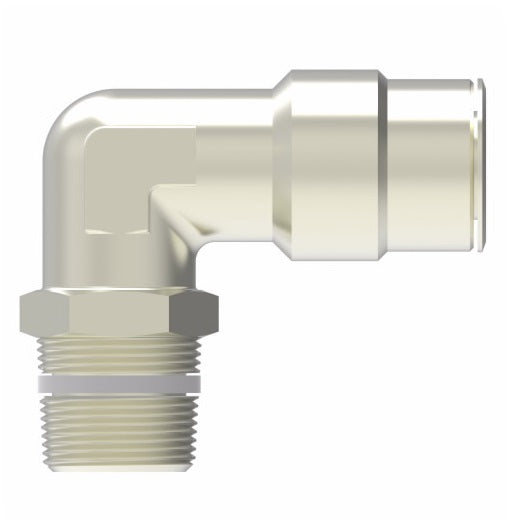

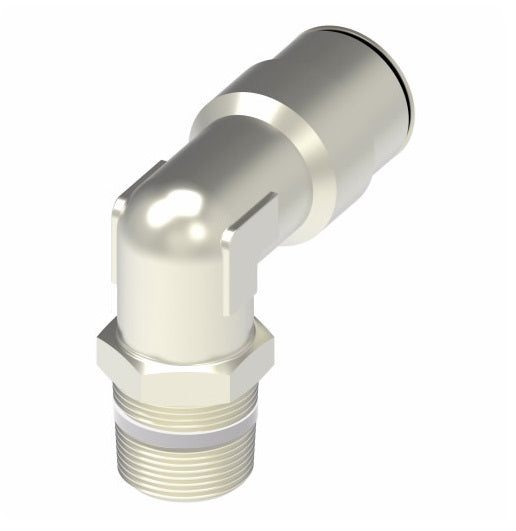

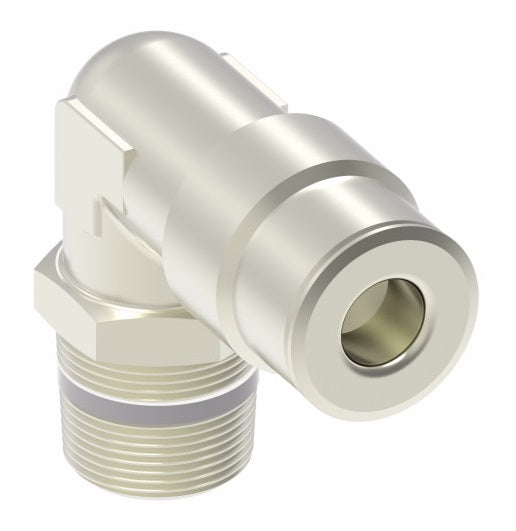

1169X4MX2PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Connector 90° Elbow (Universal BSPT/BSPP) | 4mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass
1169X4MX2PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Connector 90° Elbow (Universal BSPT/BSPP) | 4mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass
1169X4MX2PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Connector 90° Elbow (Universal BSPT/BSPP) | 4mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass

1169X4MX2PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Connector 90° Elbow (Universal BSPT/BSPP) | 4mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass

Sale price$10.87

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Connector (Universal BSPT/BSPP)
Buy More, Save More!
Quantity Price Each
10–39 $10.22
40–79 $9.24
80+ $8.15
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/8in Male BSPT
Material(s):
  • Nickel Plated Brass
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPT
Thread Size		 C E F H M SW
(mm)		 SW1
(mm)
1169X4MX2PTS 4mm 1/8" 3.5mm 14.5mm 9.0mm 5.5mm 17.5mm 8mm 12mm
1169X4MX4PTS 4mm 1/4" 3.5mm 14.5mm 9.0mm 7.0mm 17.5mm 8mm 14mm
1169X5MX2PTS 5mm 1/8" 6.0mm 14.5mm 11.0mm 5.5mm 21.0mm 9mm 12mm
1169X5MX4PTS 5mm 1/4" 6.0mm 14.5mm 11.0mm 7.0mm 21.0mm 9mm 14mm
1169X6MX2PTS 6mm 1/8" 4.0mm 15.0mm 12.7mm 5.5mm 20.0mm 9mm 12mm
1169X6MX4PTS 6mm 1/4" 4.0mm 15.0mm 12.7mm 7.0mm 20.0mm 9mm 14mm
1169X8MX2PTS 8mm 1/8" 5.0mm 16.0mm 14.0mm 5.5mm 22.5mm 11mm 12mm
1169X8MX4PTS 8mm 1/4" 5.0mm 16.0mm 14.0mm 7.0mm 22.5mm 11mm 14mm
1169X8MX6PTS 8mm 3/8" 5.0mm 16.5mm 14.0mm 8.0mm 22.5mm 11mm 19mm
1169X10MX4PTS 10mm 1/4" 6.5mm 18.5mm 16.5mm 7.0mm 26.5mm 13mm 14mm
1169X10MX6PTS 10mm 3/8" 6.5mm 19.0mm 16.5mm 8.0mm 26.5mm 13mm 19mm
1169X10MX8PTS 10mm 1/2" 6.5mm 19.5mm 16.5mm 9.0mm 26.5mm 13mm 22mm
1169X12MX4PTS 12mm 1/4" 7.5mm 20.0mm 19.5mm 7.0mm 28.5mm 15mm 17mm
1169X12MX6PTS 12mm 3/8" 7.5mm 20.0mm 19.5mm 8.0mm 28.5mm 15mm 19mm
1169X12MX8PTS 12mm 1/2" 7.5mm 20.5mm 19.5mm 9.0mm 28.5mm 15mm 22mm
