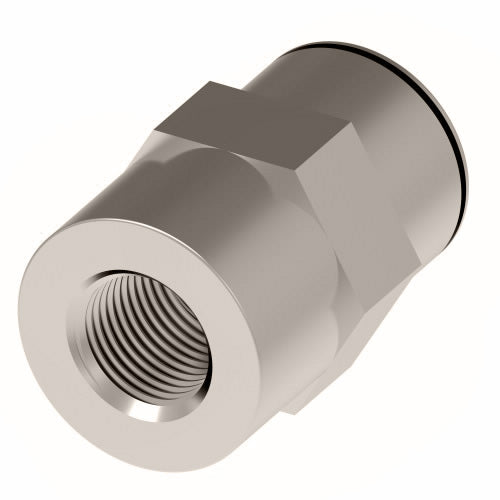

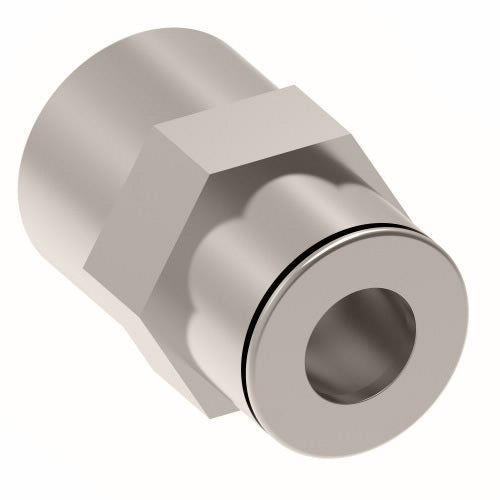

1166X2X4 by Danfoss | Push to Connect Adapter | Female Connector | 1/8" Tube OD x 1/4" Female Pipe | Nickel Plated Brass
Aeroquip® by Danfoss
Push to Connect Adapter - Female Connector
Female Pipe x Push to Connect End
Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.45 |
| 40–79 | $10.35 |
| 80+ | $9.14 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Vacuum: | |||
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Nickel Plated Brass Part Number |
Tube O.D. | Female Pipe Thread | C | F | G | H | L | SW (mm) |
| 1166X2 | 1/8" | 1/8" | 0.39" | 0.35" | 0.51" | 0.34" | 0.95" | 12 |
| 1166X2X4 | 1/8" | 1/4" | 0.55" | 0.35" | 0.65" | 0.47" | 1.10" | 15 |
| 1166X2.5 | 5/32" | 1/8" | 0.39" | 0.35" | 0.51" | 0.34" | 0.95" | 12 |
| 1166X2.5X4 | 5/32" | 1/4" | 0.55" | 0.35" | 0.65" | 0.47" | 1.10" | 15 |
| 1166X4 | 1/4" | 1/8" | 0.39" | 0.46" | 0.51" | 0.34" | 1.02" | 12 |
| 1166X4X4 | 1/4" | 1/4" | 0.54" | 0.47" | 0.65" | 0.47" | 1.18" | 15 |
| 1166X6 | 3/8" | 1/4" | 0.51" | 0.60" | 0.73" | 0.47" | 1.30" | 17 |
| 1166X6X6 | 3/8" | 3/8" | 0.55" | 0.60" | 0.79" | 0.49" | 1.34" | 17 |
