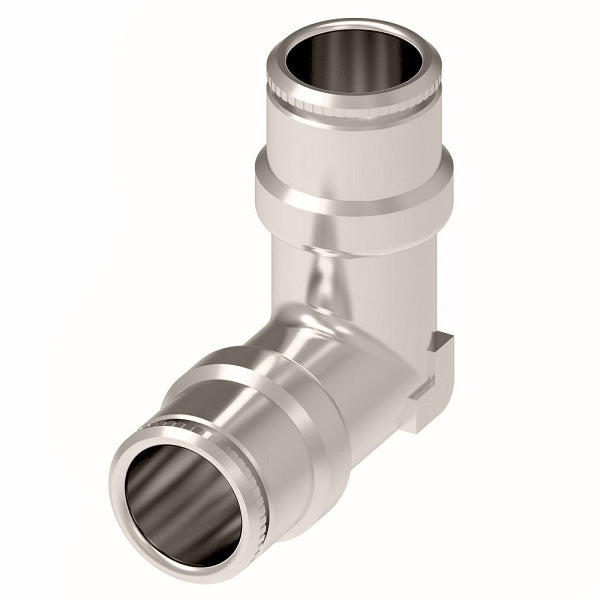

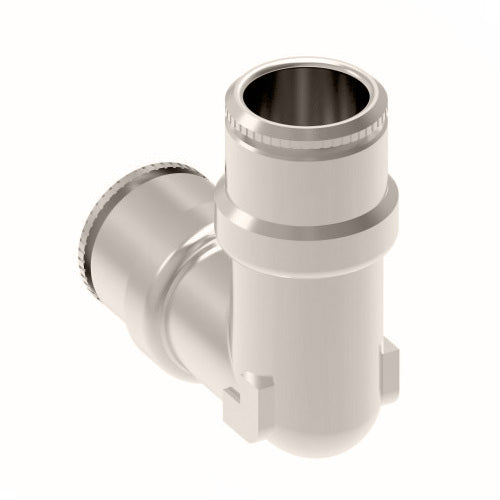

1165X10M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1165X10M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
1165X10M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass

1165X10M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass

Sale price$15.43
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 C F M SW
(mm)
1165X4M 4mm 3.5mm 9.0mm 17.5mm 8mm
1165X5M 5mm 6.0mm 11.0mm 21.0mm 9mm
1165X6M 6mm 4.0mm 12.7mm 20.0mm 9mm
1165X8M 8mm 5.0mm 14.0mm 22.5mm 11mm
1165X10M 10mm 6.5mm 16.5mm 26.5mm 13mm
1165X12M 12mm 7.5mm 19.5mm 28.5mm 15mm

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 10mm Push-to-Connect
  • 10mm Push-to-Connect
  • Some Ends Match
Material(s):
  • Nickel Plated Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
