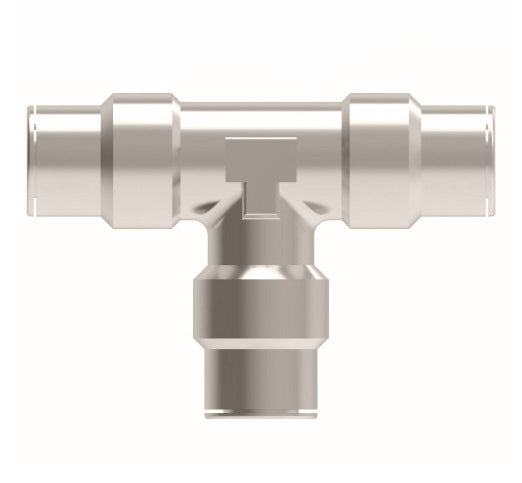

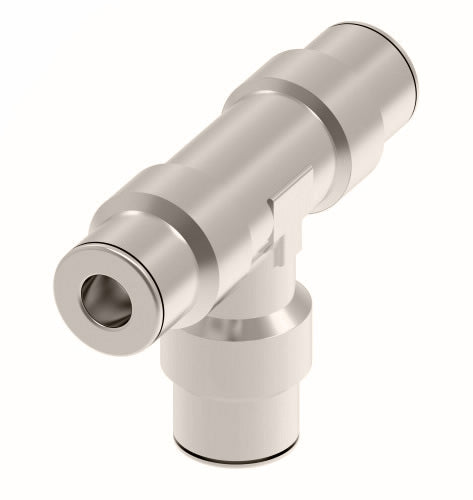

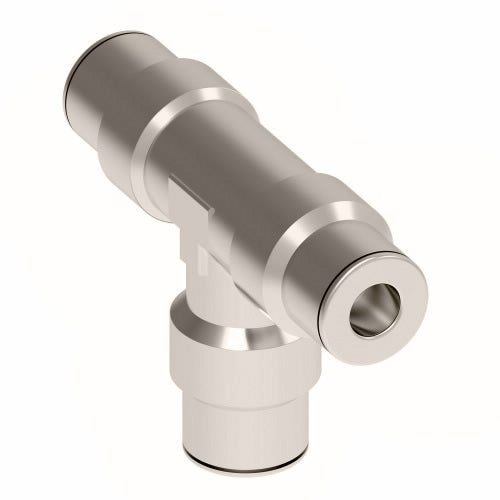

1164X5 by Danfoss | Push to Connect Adapter | Union Tee | 5/16" Tube OD x 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass
1164X5 by Danfoss | Push to Connect Adapter | Union Tee | 5/16" Tube OD x 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass
1164X5 by Danfoss | Push to Connect Adapter | Union Tee | 5/16" Tube OD x 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass

1164X5 by Danfoss | Push to Connect Adapter | Union Tee | 5/16" Tube OD x 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass

Sale price$12.45

Aeroquip® by Danfoss
Push to Connect Adapter - Union Tee
Buy More, Save More!
Quantity Price Each
10–39 $11.70
40–79 $10.58
80+ $9.34
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 5/16in Push-to-Connect
  • 5/16in Push-to-Connect
  • 5/16in Push-to-Connect
  • Some Ends Match
Material(s):
  • Nickel Plated Brass
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. C F L M SW
(mm)
1164X2 1/8" 0.14" 0.35" 1.38" 0.69" 8
1164X2.5 5/32" 0.14" 0.35" 1.38" 0.69" 8
1164X4 1/4" 0.16" 0.50" 1.57" 0.79" 9
1164X5 5/16" 0.20" 0.55" 1.77" 0.89" 11
1164X6 3/8" 0.26" 0.65" 2.09" 1.04" 13
1164X8 1/2" 0.32" 0.77" 2.24" 1.12" 15

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
