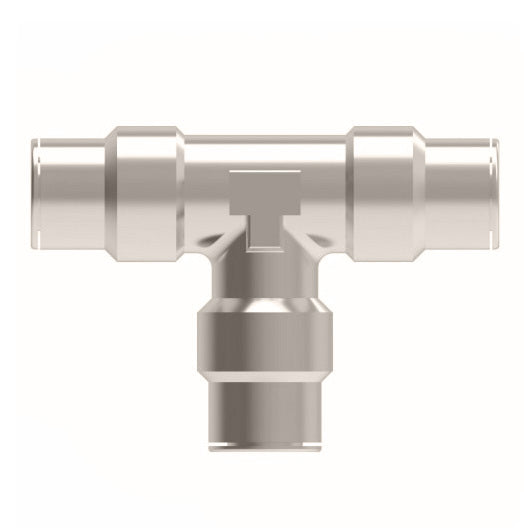

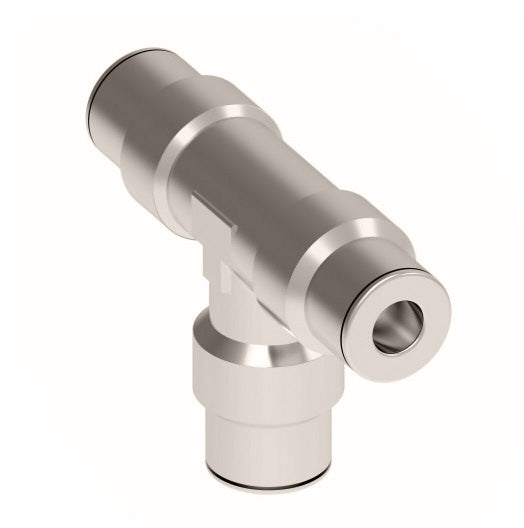

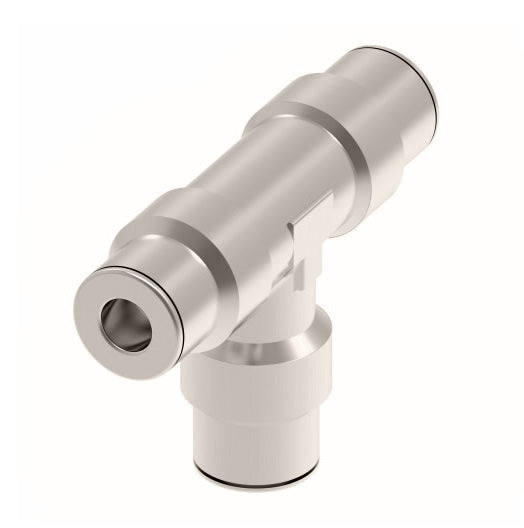

1164X12M by Danfoss | Metric Push to Connect Adapter | Union Tee | 12mm Tube OD x 12mm Tube OD x 12mm Tube OD | Nickel Plated Brass
1164X12M by Danfoss | Metric Push to Connect Adapter | Union Tee | 12mm Tube OD x 12mm Tube OD x 12mm Tube OD | Nickel Plated Brass
1164X12M by Danfoss | Metric Push to Connect Adapter | Union Tee | 12mm Tube OD x 12mm Tube OD x 12mm Tube OD | Nickel Plated Brass

1164X12M by Danfoss | Metric Push to Connect Adapter | Union Tee | 12mm Tube OD x 12mm Tube OD x 12mm Tube OD | Nickel Plated Brass

Sale price$24.74

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union Tee
Buy More, Save More!
Quantity Price Each
10–39 $23.26
40–79 $21.03
80+ $18.56
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 12mm Push-to-Connect
  • 12mm Push-to-Connect
  • 12mm Push-to-Connect
  • Some Ends Match
Material(s):
  • Nickel Plated Brass
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 C F L M SW
(mm)
1164X4M 4mm 3.5mm 9.0mm 35mm 17.5mm 8mm
1164X5M 5mm 6.0mm 11.0mm 42mm 21.0mm 9mm
1164X6M 6mm 4.0mm 12.7mm 40mm 20.0mm 9mm
1164X8M 8mm 5.0mm 14.0mm 45mm 22.5mm 11mm
1164X10M 10mm 6.5mm 16.5mm 53mm 26.5mm 13mm
1164X12M 12mm 7.5mm 19.5mm 57mm 28.5mm 15mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
