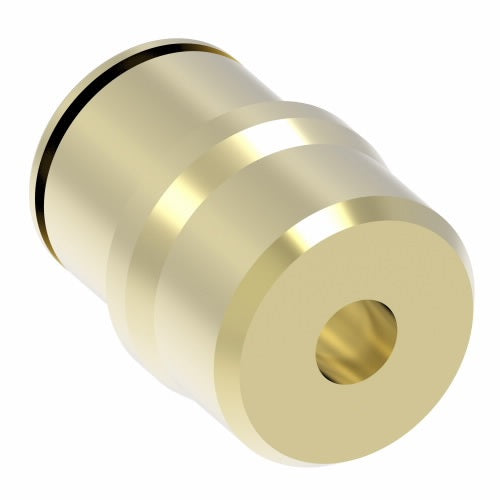

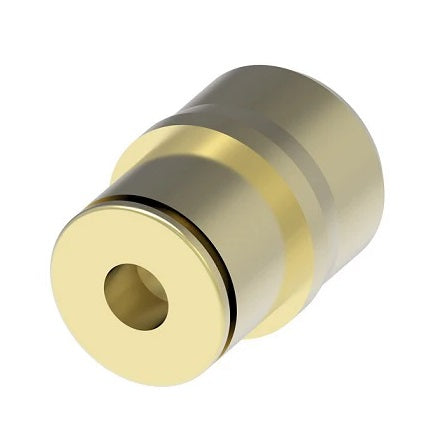

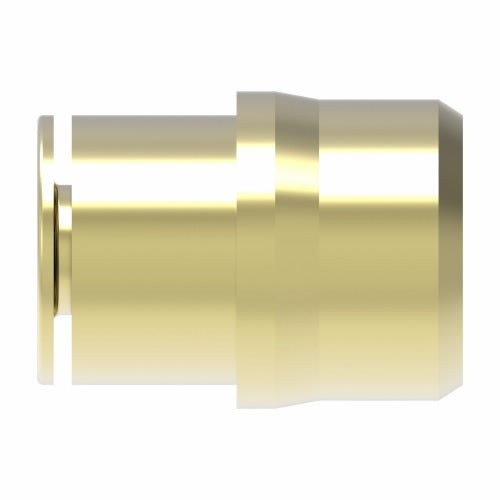

1161X8 by Danfoss | Push to Connect Adapter | Cartridge | 1/2" Tube OD | Brass
1161X8 by Danfoss | Push to Connect Adapter | Cartridge | 1/2" Tube OD | Brass
1161X8 by Danfoss | Push to Connect Adapter | Cartridge | 1/2" Tube OD | Brass

1161X8 by Danfoss | Push to Connect Adapter | Cartridge | 1/2" Tube OD | Brass

Sale price$10.24

Aeroquip® by Danfoss
Push to Connect Adapter - Cartridge

Cartridge body is not Nickel-plated.
Buy More, Save More!
Quantity Price Each
10–39 $9.63
40–79 $8.70
80+ $7.68
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • Brass
Compatible Series:
  • PT230 Series
  • TP160 Series
  • PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Brass
Part Number		 Tube O.D. F G L S H B
1161X2 1/8" 0.34" 0.35" 0.59" 0.344" 0.433" 0.14"
1161X2.5 5/32" 0.34" 0.35" 0.57" 0.344" 0.433" 0.14"
1161X4 1/4" 0.46" 0.48" 0.65" 0.470" 0.472" 0.16"
1161X5 5/16" 0.54" 0.56" 0.67" 0.549" 0.551" 0.25"
1161X8 1/2" 0.74" 0.76" 0.83" 0.746" 0.629" 0.42"
