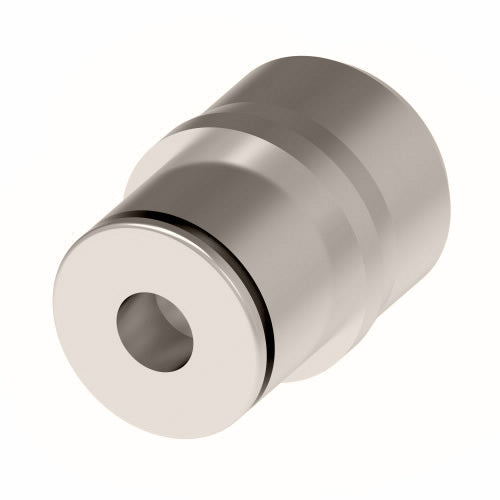

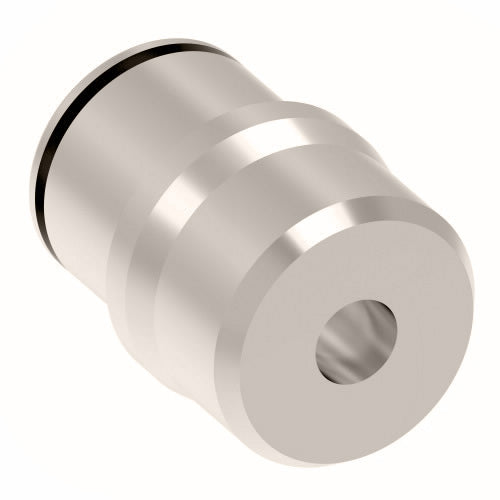

1161X6M by Danfoss | Metric Push to Connect Adapter | Cartridge | 6mm Tube OD | Nickel Plated Brass
1161X6M by Danfoss | Metric Push to Connect Adapter | Cartridge | 6mm Tube OD | Nickel Plated Brass
1161X6M by Danfoss | Metric Push to Connect Adapter | Cartridge | 6mm Tube OD | Nickel Plated Brass

1161X6M by Danfoss | Metric Push to Connect Adapter | Cartridge | 6mm Tube OD | Nickel Plated Brass

Sale price$12.52

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Cartridge
Buy More, Save More!
Quantity Price Each
10–39 $11.77
40–79 $10.64
80+ $9.39
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Nickel Plated Brass
Seal Material(s):
  • Buna-N/Nitrile Rubber
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 F G L S H B
1161X5M 5mm 9.60mm 10.0mm 15.5mm 9.750mm 11.5mm 3.5mm
1161X6M 6mm 11.80mm 12.2mm 16.5mm 11.95mm 12.0mm 4.0mm
