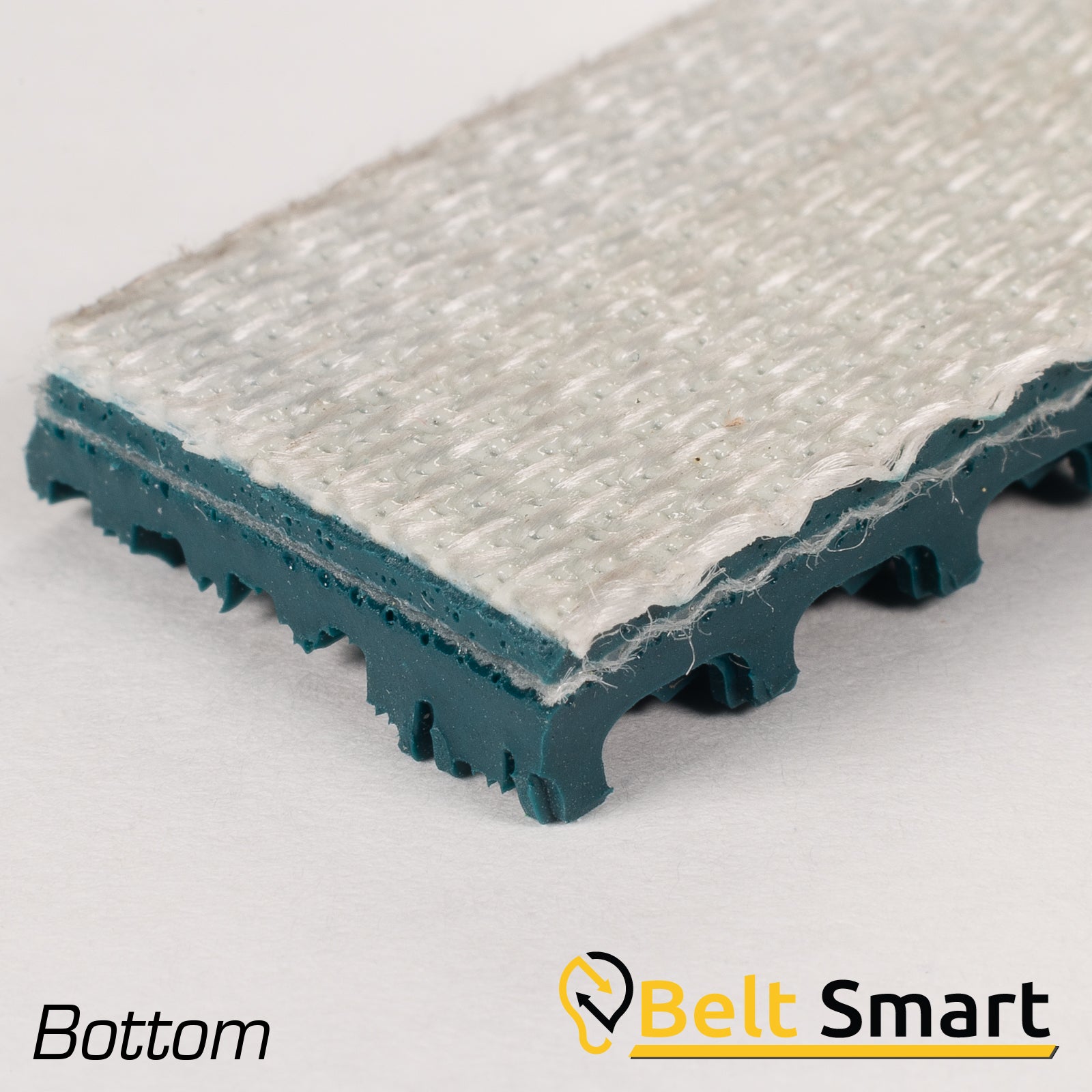

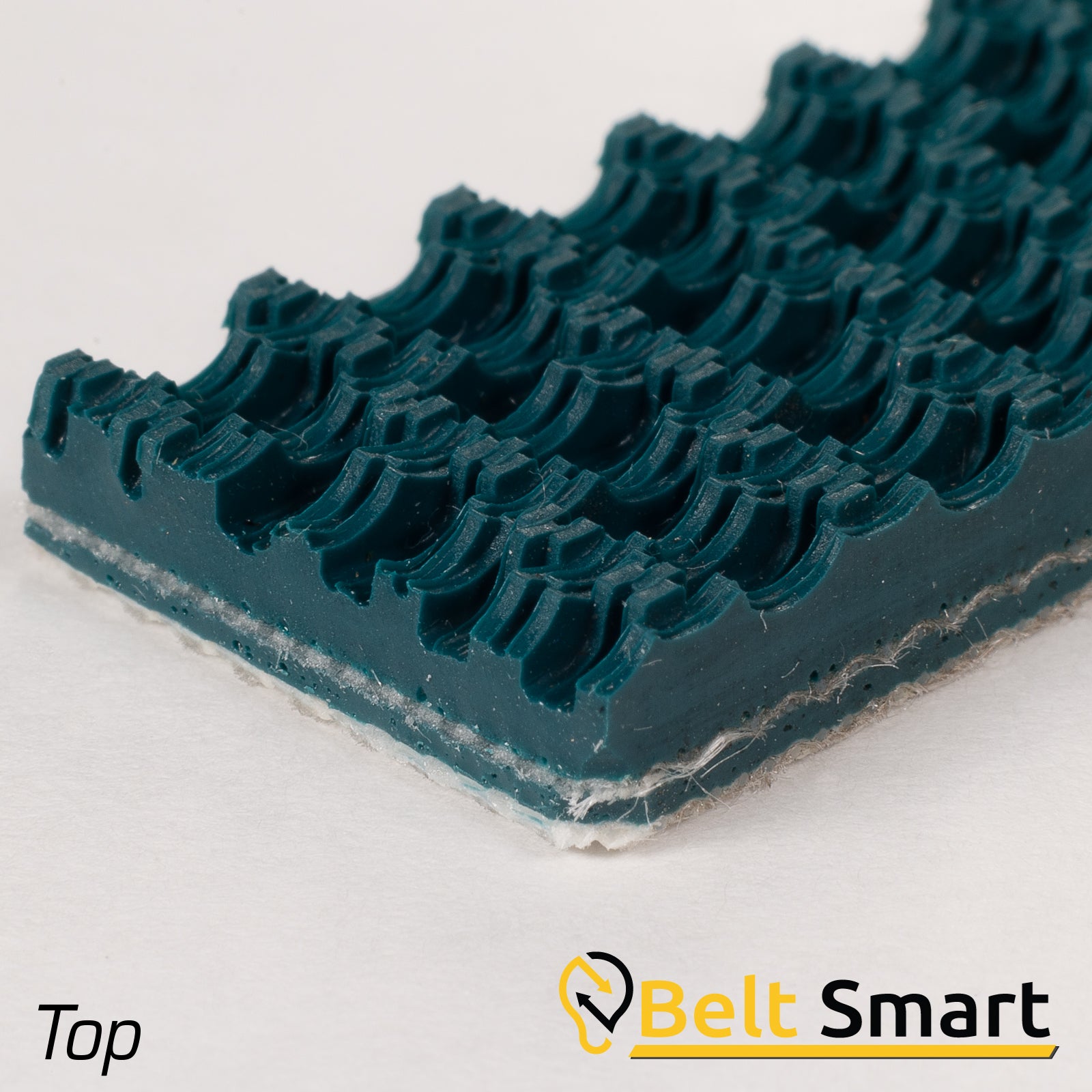

BS116 - #116 Beltservice E10/2 0/V40 Green PVC RT Conveyor Belt
BS116 - #116 Beltservice E10/2 0/V40 Green PVC RT Conveyor Belt
Beltservice

BS116 - #116 Beltservice E10/2 0/V40 Green PVC RT Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Incline/Decline Conveying
  • Case Sealers
Features:
  • The soft PVC roughtop cover makes No. 116 a good choice for incline/decline applications.
  • Ideal for situations requiring smaller pulley diameters.
  • This versatile belt is often used in the corrugated box board industry and in case sealers.
  • Features a polyester carcass with monofilament construction to eliminate stretching and edge curl.
E10/2 0/V40 Green
PVC RT
Pt No.: 116
Thickness .20"
Covers RT x B
Carcass Mono/Multi
Elongation @ 1% 62 lbs.
Approx. Weight
Lbs. Per Inch Width		 .068 lbs.
Min. Pulley Diameter 2"
Temperature Range 10 deg. F / 180 deg. F
Coefficient of Friction .22
Anti-Static Yes
Clipper Lace #36
RT = Rough Top
Multi = Multifilament
Mono = Monofilament
