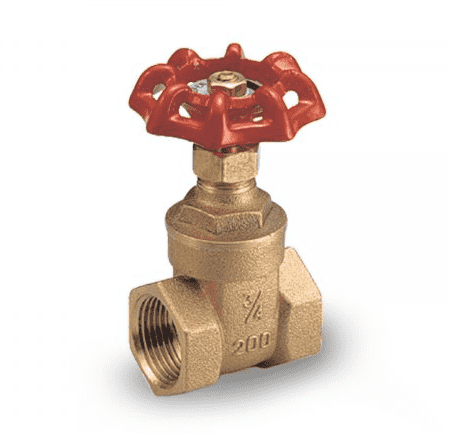

114L41 by RuB Inc. | Gate Valve | 2-1/2" Female NPT x 2-1/2" Female NPT | Heavy Pattern | Brass | Pack of 2

114L41 by RuB Inc. | Gate Valve | 2-1/2" Female NPT x 2-1/2" Female NPT | Heavy Pattern | Brass | Pack of 2

Sale price$382.08

RuB Inc. - Gate Valve - S.114 Series - Female NPT x Female NPT - Brass - Heavy Pattern

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $359.16
15–29 $324.77
30+ $286.56
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2-1/2in Female NPT
  • 2-1/2in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Quality:
  • Suitable for water-works, domestic and agricultural installations
  • Non rising stem suitable to most difficult applications
Body:
  • Low pressure drop
  • Finely cast sand blasted heavy brass body
Stem:
  • High performance PTFE stem seal
Threads:
  • NPT female by female taper threads
Handle:
  • Strong cast aluminum hand-wheel
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • 200 PSI non-shock cold working pressure
  • -4°F/+350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L A H
114D41 1/2" 1/2" 0.504" 0.449" 1.693" 2.165" 2.795"
114E41 3/4" 3/4" 0.669" 0.492" 1.772" 2.165" 2.992"
114F41 1" 1" 0.827" 0.559" 2.047" 2.362" 3.445"
114G41 1-1/4" 1-1/4" 1.063" 0.657 2.323" 2.835" 4.055"
114H41 1-1/2" 1-1/2" 1.339" 0.669" 2.480" 2.835 4.475"
114I41 2" 2" 1.772" 0.728" 2.716" 3.150" 5.256"
114L41 2-1/2" 2-1/2" 2.205" 0.925" 3.465" 3.937" 6.437"
114M41 3" 3" 2.677" 1.004" 3.740" 4.331" 7.480"
114N41 4" 4" 3.543" 1.181" 4.488" 5.118" 9.252"

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
