1130813-100 by NewAge Industries | CLEARFLO 70 PHTHALATE FREE | PVC | 0.875in I.D. x 1.125in O.D. | 100ft Package Length

$269.50

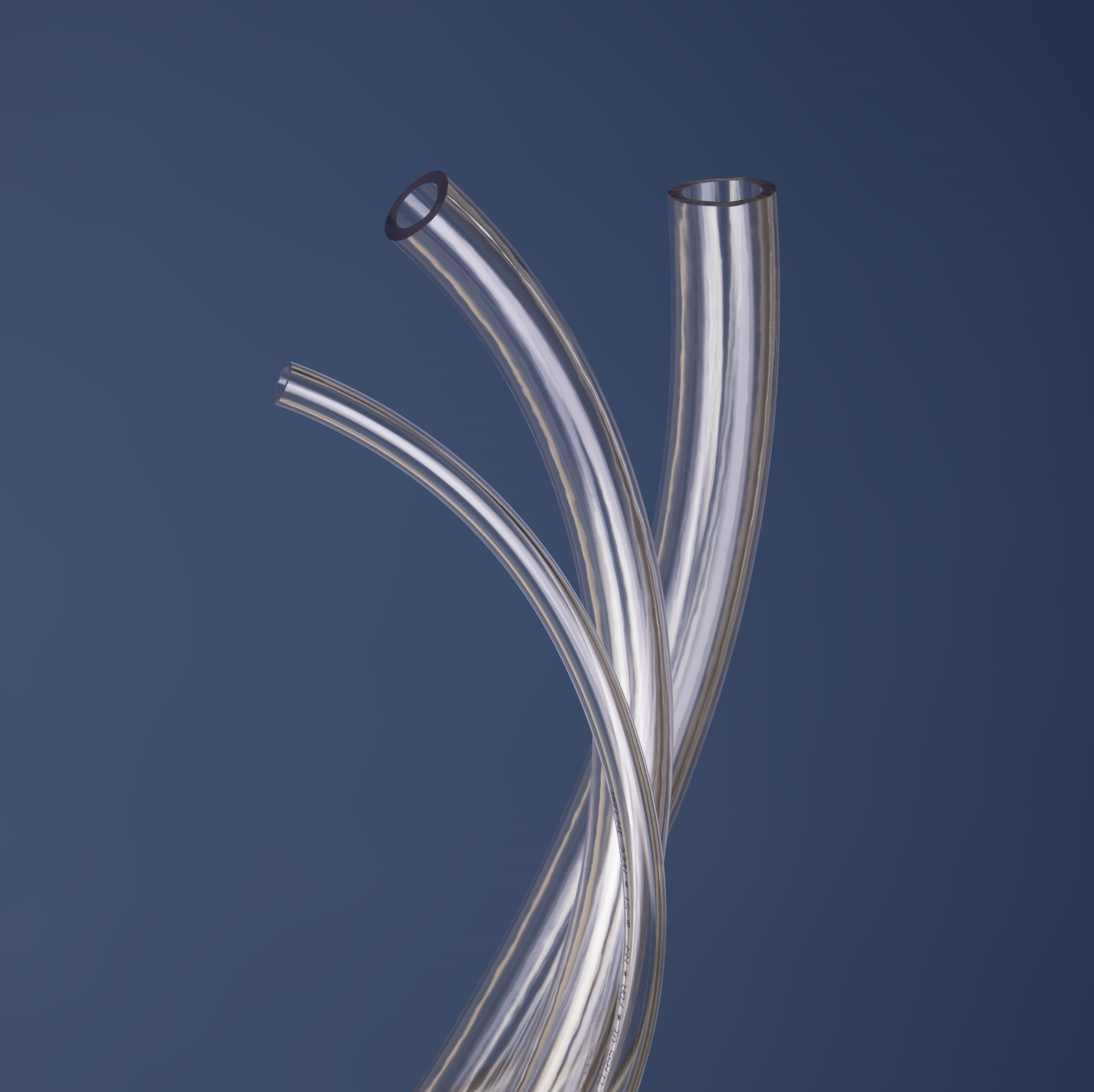

NewAge Industries - PVC Tubing - CLEARFLO® 70

Package Quantity: 100 FT

Quantity:

Buy More, Save More!
Quantity	Price Each
5–14	$253.33
15–29	$229.08
30+	$202.13

Discounts applied in cart/checkout.

Product Data:

Brand:

Clearflo

Series:

CLEARFLO 70 PHTHALATE FREE

Color(s):

Clear/Semi-Clear

Part Number	ID (in.)	OD (in.)	Wall (in.)	Working PSI (at 70°F)	Weight (lbs./100 ft.)
1130071-100	1/8	1/4	1/16	141	1.9
1130113-100	5/32	11/32	3/32	159	3.8
1130134-100	3/16	1/4	1/32	53	1.1
1130155-100	3/16	5/16	1/16	106	2.5
1130183-100	3/16	3/8	3/32	141	4.2
1130204-100	3/16	7/16	1/8	169	6.3
1130225-50 \| 1130225-100	1/4	3/8	1/16	85	3.1
1130253-100	1/4	7/16	3/32	116	5.2
1130281-100	1/4	1/2	1/8	141	7.5
1130302-100	5/16	7/16	1/16	71	3.8
1130323-100	5/16	1/2	3/32	97	6.1
1130344-100	5/16	9/16	1/8	121	8.8
1130365-100 \| 1130365-500	3/8	1/2	1/16	70	4.4
1130386-100	3/8	9/16	3/32	90	7.1
1130407-100	3/8	5/8	1/8	111	10
1130428-100	3/8	3/4	3/16	141	17
1130477-100	7/16	11/16	1/8	94	11.3
1130498-100 \| 1130498-500	1/2	5/8	1/16	52	5.7
1130519-100	1/2	11/16	3/32	67	9
1130547-50 \| 1130547-100	1/2	3/4	1/8	85	12.6
1130575-100	1/2	1	1/4	141	30.1
1130596-100	9/16	3/4	3/32	60	9.9
1130624-100	5/8	3/4	1/16	39	6.9
1130645-100	5/8	13/16	3/32	55	10.9
1130666-100	5/8	7/8	1/8	71	15.1
1130687-100	5/8	15/16	5/32	85	19.7
1130708-100	3/4	7/8	1/16	33	8.2
1130729-50 \| 1130729-100 \| 1130729-300	3/4	1	1/8	61	17.6
1130750-100	3/4	1-1/16	5/32	73	22.8
1130813-100	7/8	1-1/8	1/8	53	20.1
1130834-50 \| 1130834-100	1	1-1/4	1/8	42	22.6
1130862-100	1	1-3/8	3/16	67	35.8
1130883-100	1	1-1/2	1/4	85	50.2
1130911-100	1-1/4	1-1/2	1/8	39	27.6
1130953-50	1-1/4	1-3/4	1/4	71	60.3
1130974-100	1-1/2	1-3/4	1/8	33	32.7
1130995-100	1-1/2	1-7/8	3/16	47	50.9
1131037-50	1-1/2	2	1/4	61	70.3
1131058-50	1-3/4	2	1/8	28	37.7
1131079-50	1-3/4	2-1/4	1/4	53	80.4
1131100-50	2	2-1/4	1/8	25	42.7
1131121-50	2	2-1/2	1/4	47	90.4

Add length suffix to part number when ordering. Example: 100 ft. of 1” I.D. x 1-1/4” O.D. tubing is part number 113 0834-100.
Working pressures are calculated from burst testing using a 3:1 safety factor. Application testing is recommended.
Cut coils are available from coils of 100 ft. or less; charges apply — call for details. Coils over 100 ft. are sold by standard coil length only.
ID is the critical dimension for fittings application.
[B] Limited stock item; lead times and minimums may apply – call for details.

NewAge Industries

NewAge Industries is a leading independent, employee-owned manufacturer of fluid transfer systems that produce high-quality tubing, hose, fittings, clamps, and accessories and offers expert project guidance and services.

As a reliable provider that offers an exceptional customer experience, a culture of social responsibility, and a focus on sustainability, NewAge helps businesses engineer products that create a positive global impact.
