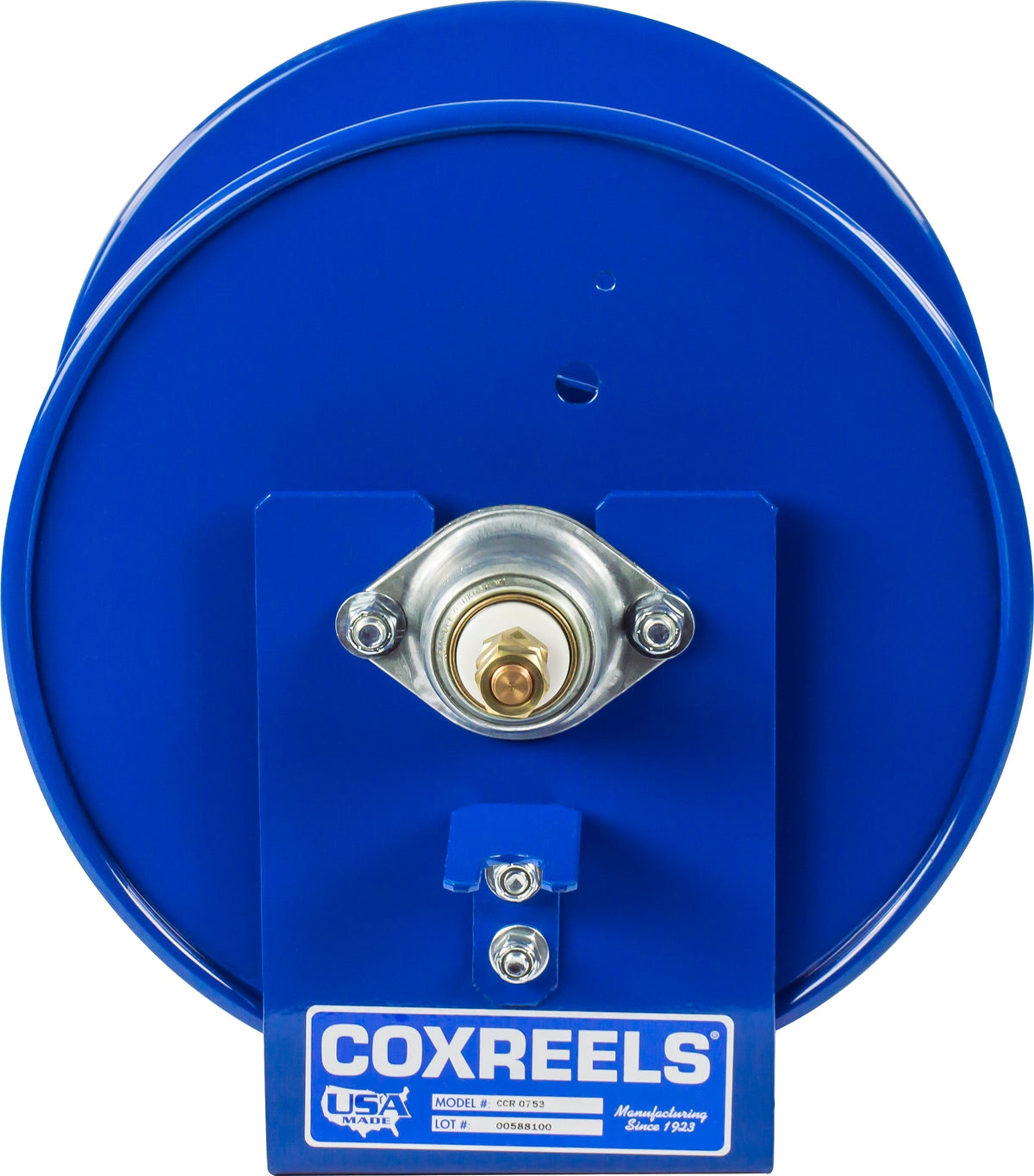

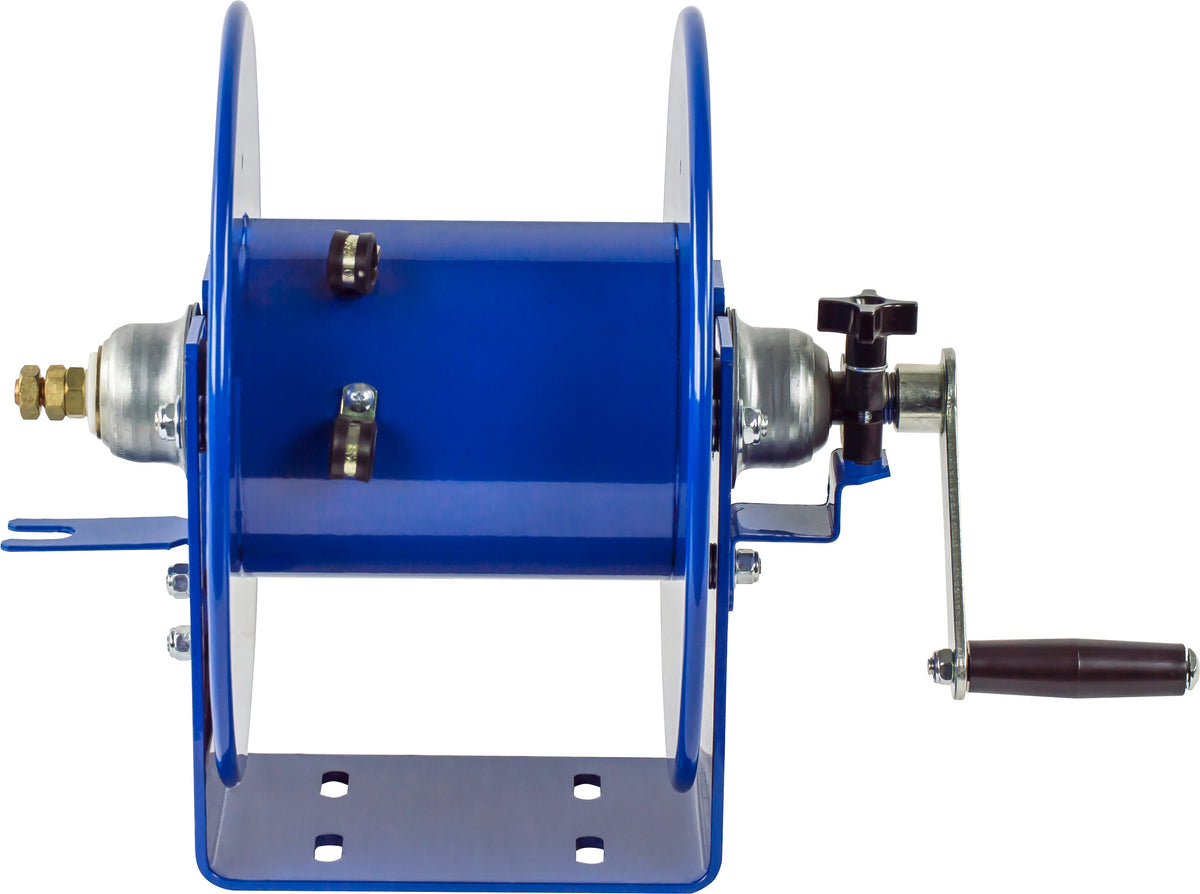

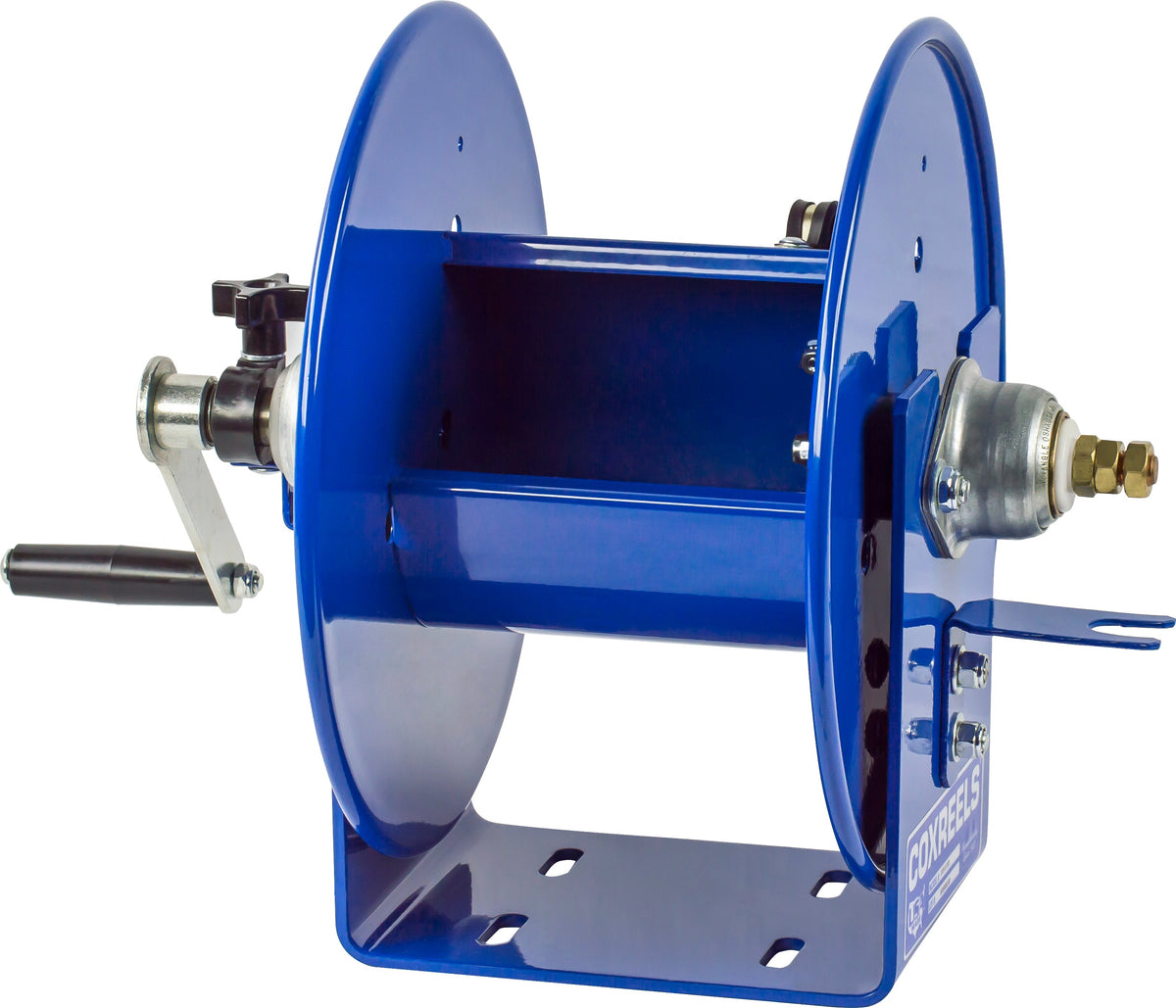

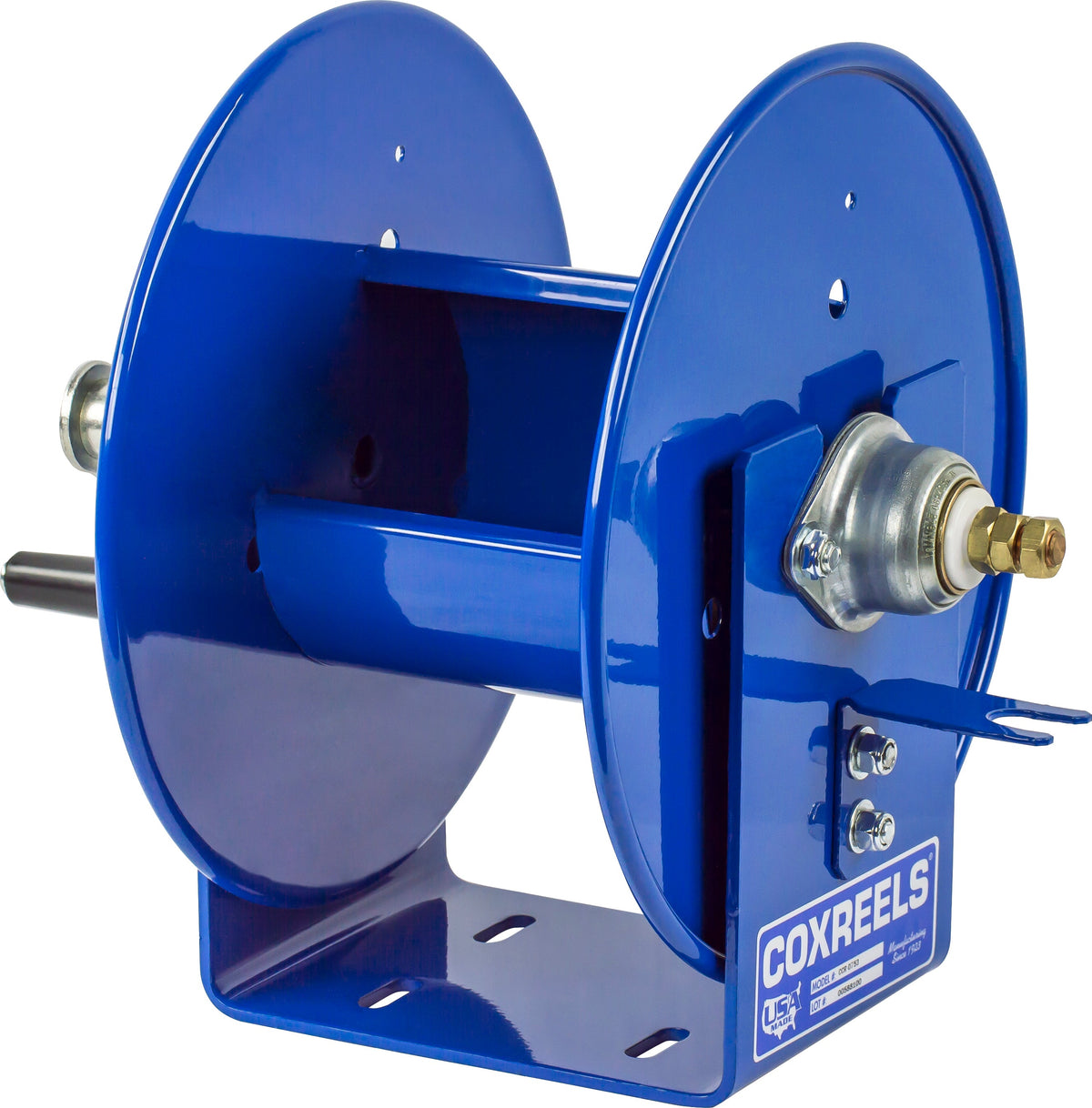

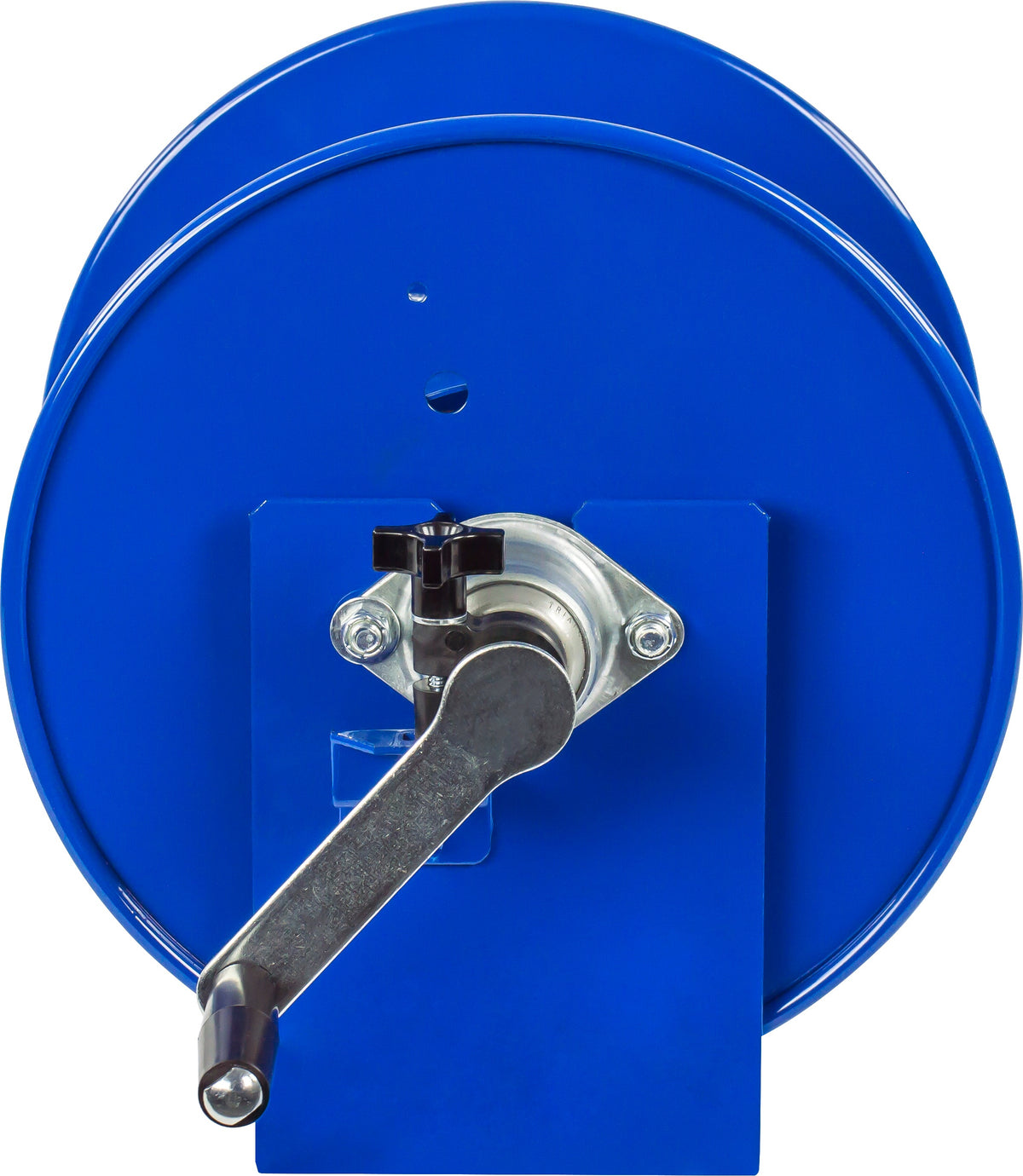

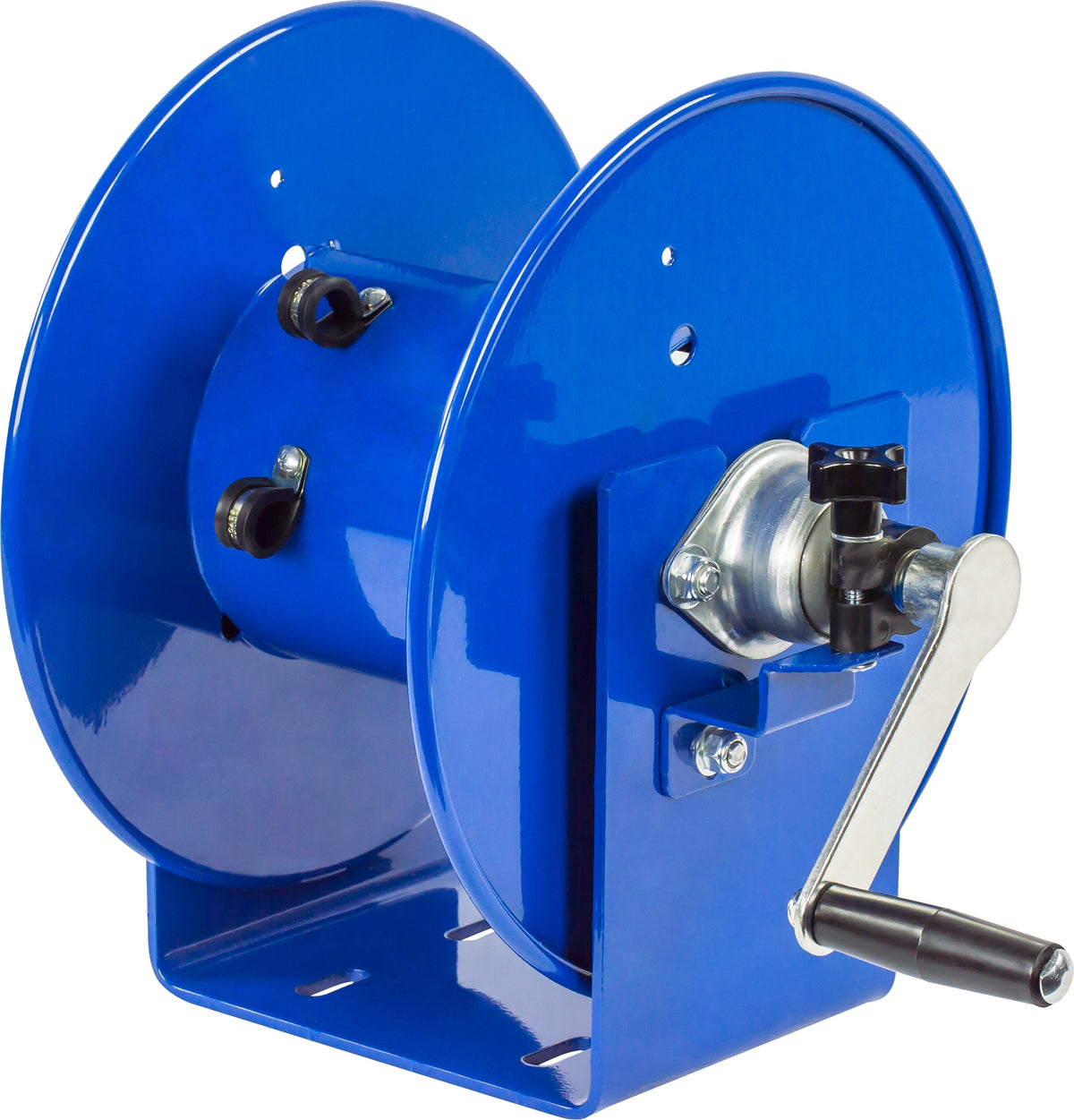

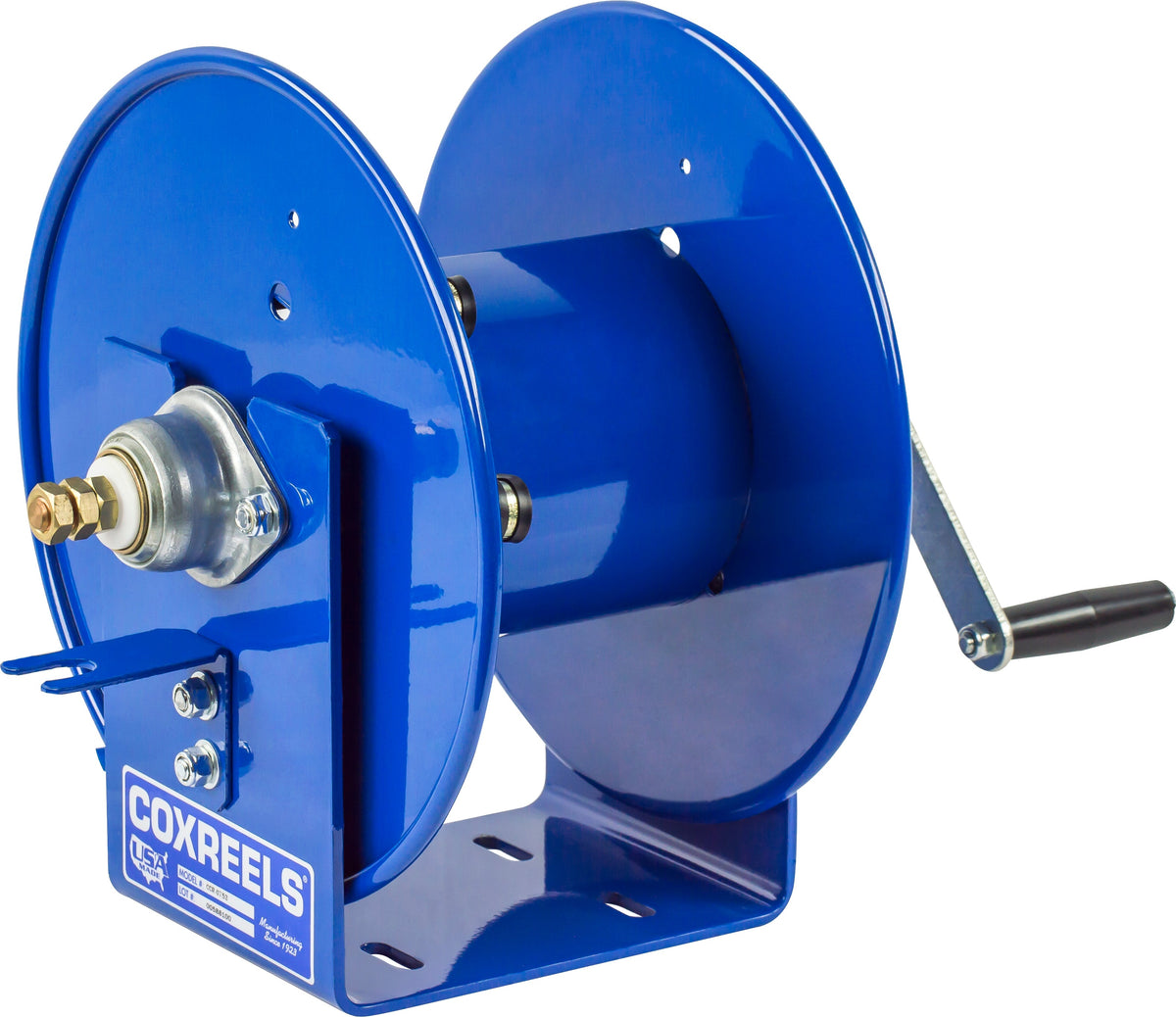

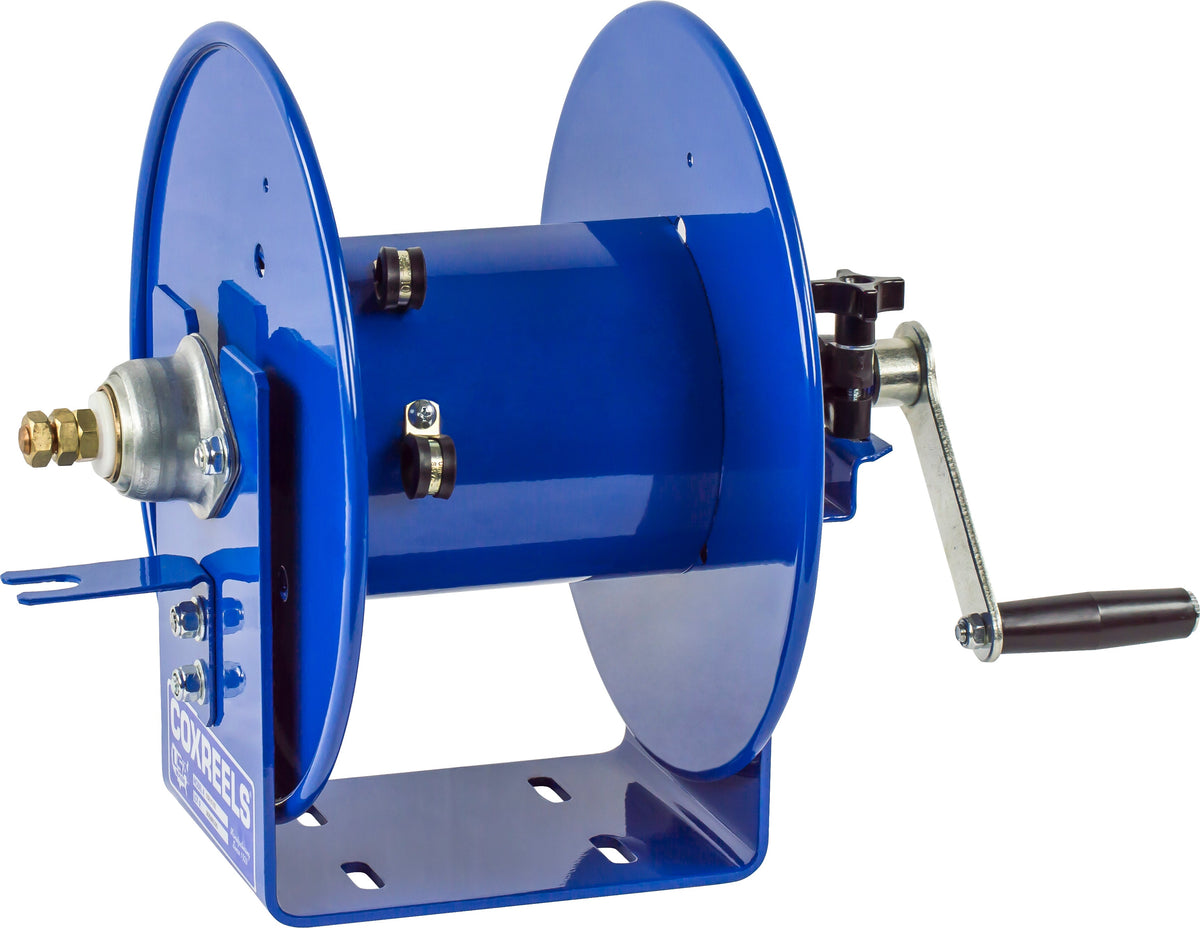

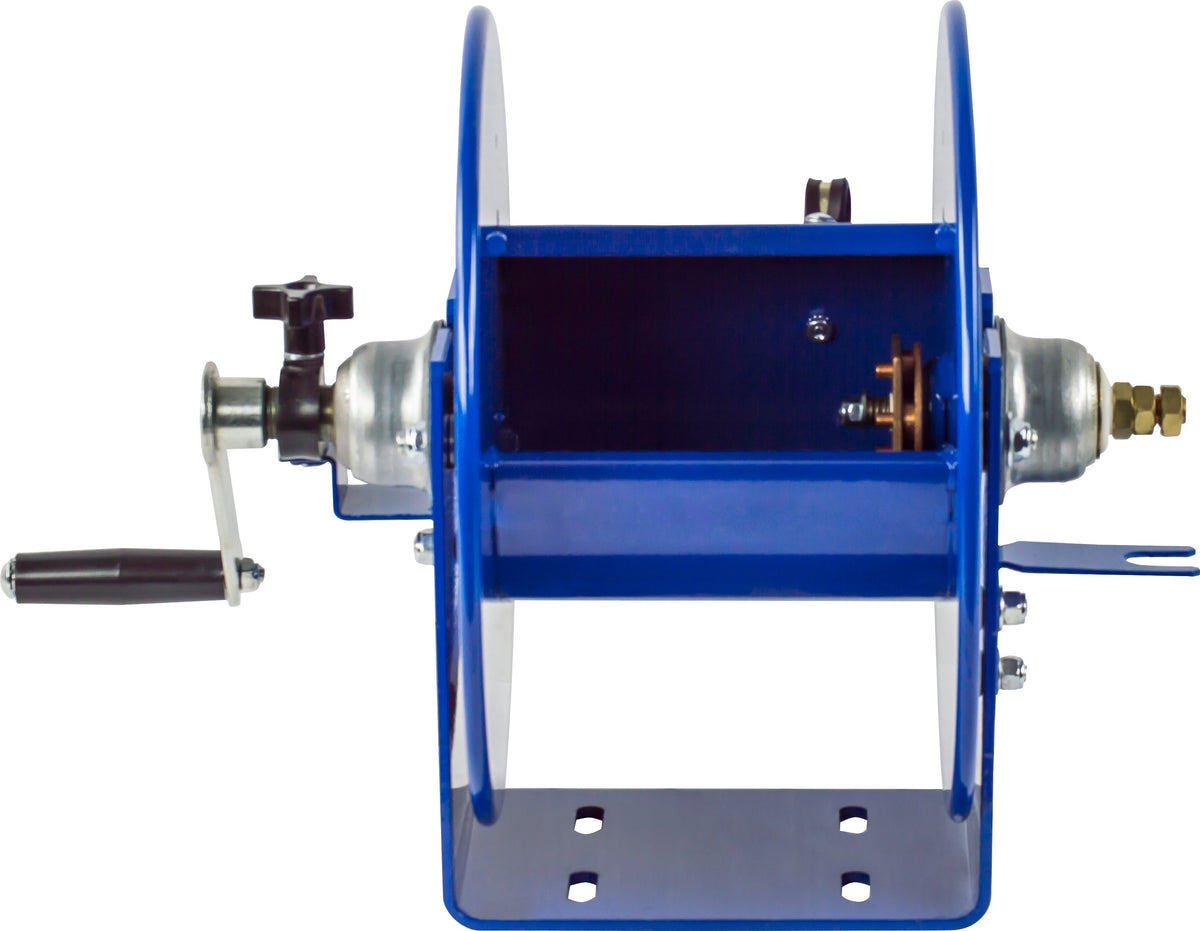

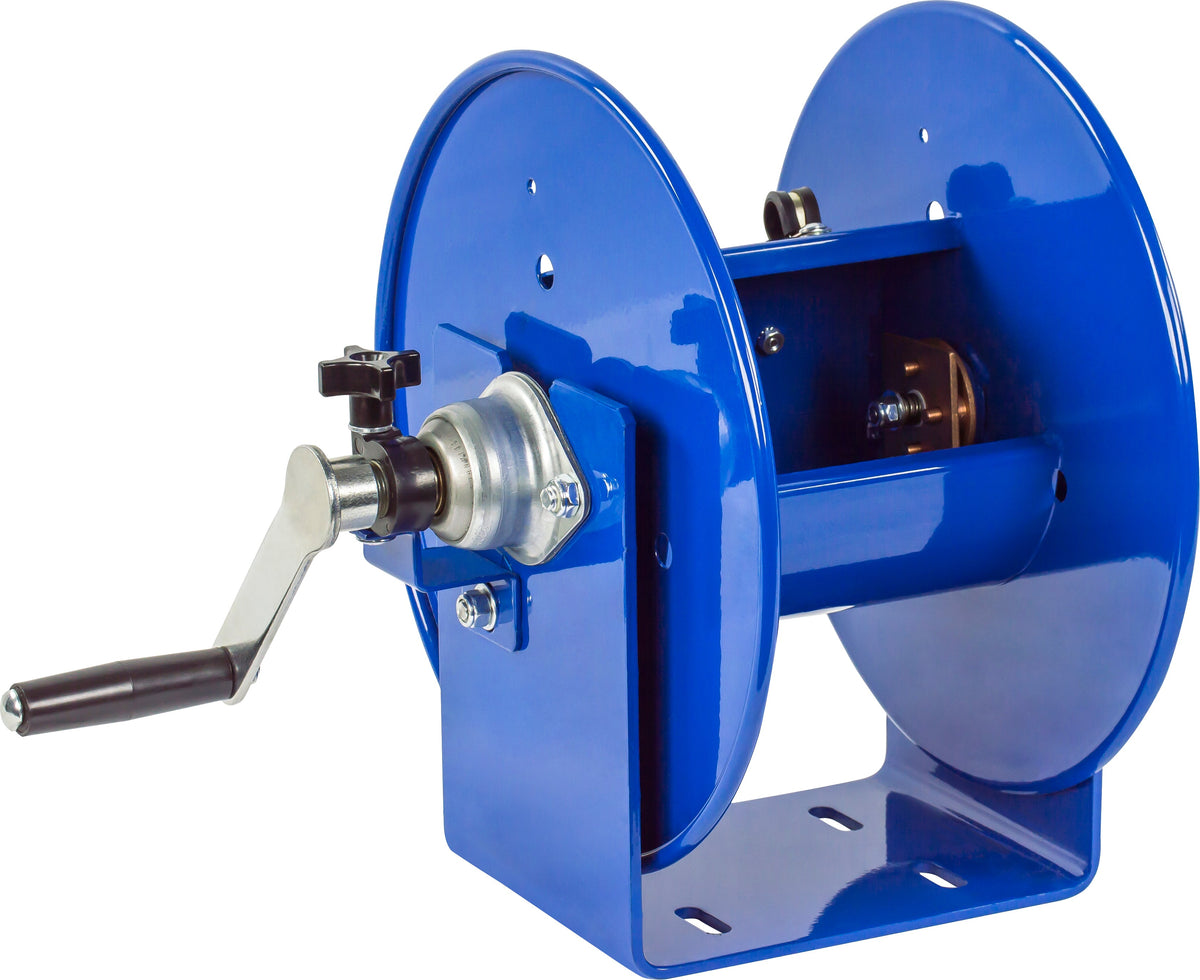

112WCL-6-02 by Coxreels | 100WCL Series | Hand Crank Welding Cable Reel | #2 Cable, 450A | Steel | 165ft Capacity, Cable Not Included
Coxreels 100WCL Series Hand Crank Cable Reels
Steel U-frame hand crank cable reels for arc welding and grounding. Made in the U.S.A.
1
What is this product used for?
- Arc Welding & Grounding
2
What are the key specifications?
Steel, U-frame
150°F
Bronze Self-Lubricated Spherical Bearings
CPC™ powder coat
Floor, Wall, Vehicle Mounting
0.44" slotted mounting holes
18 × 13 × 12 in
3
What are the main product features?
- Slip Ring Assembly — drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
- U Shaped Frame Design — Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Bronze Spherical Bearings — Self-lubricated bronze spherical bearings at each end of the reels are designed for trouble-free rotation and heavy-duty applications.
- Steel Construction — High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
4
Which models are available?
| Part # | Cable | Length |
|---|---|---|
| 112WCL-6-01 | #1 | 150 ft |
| 112WCL-6-02 | #2 | 165 ft |
| 112WCL-6-10 | #1/0 | 100 ft |
| 112WCL-6-20 | #2/0 | 100 ft |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
7
Where can I find product documents?
100WCL Series Spec Sheet
Dimension drawing, capacities and the part-number key.
How is this product sold?
Each.
