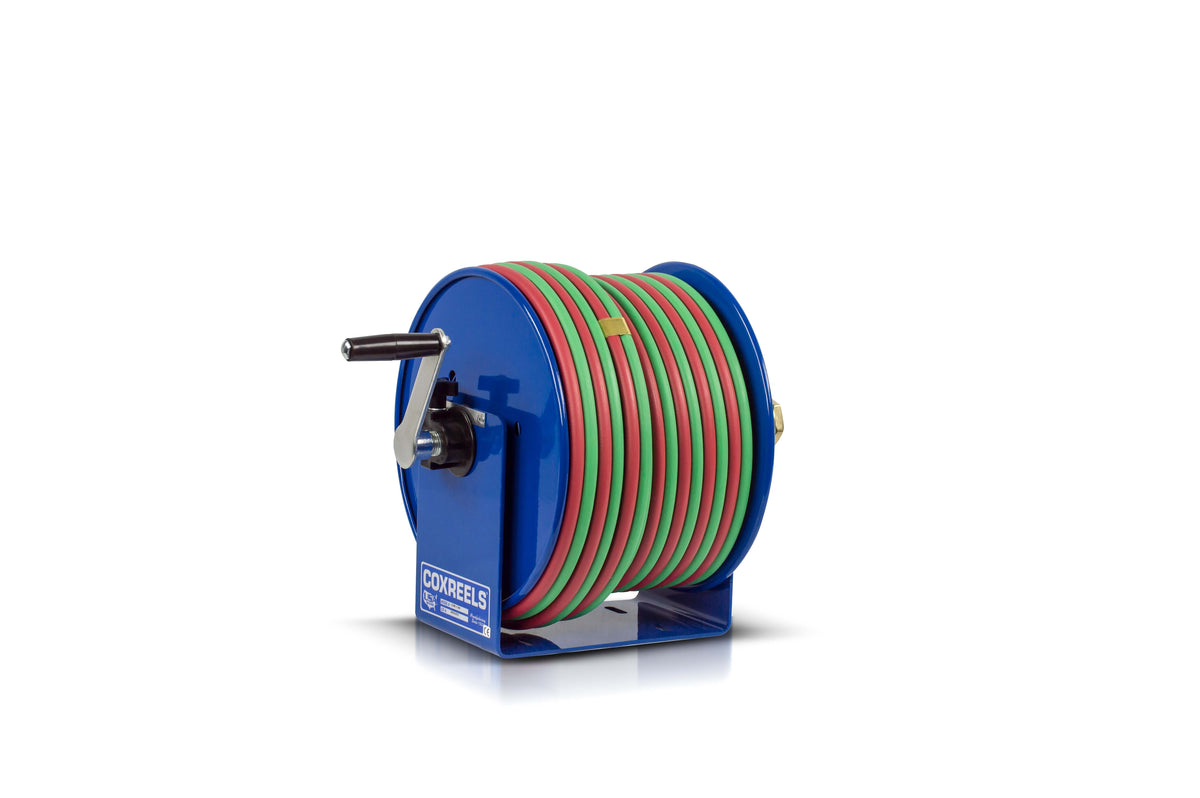

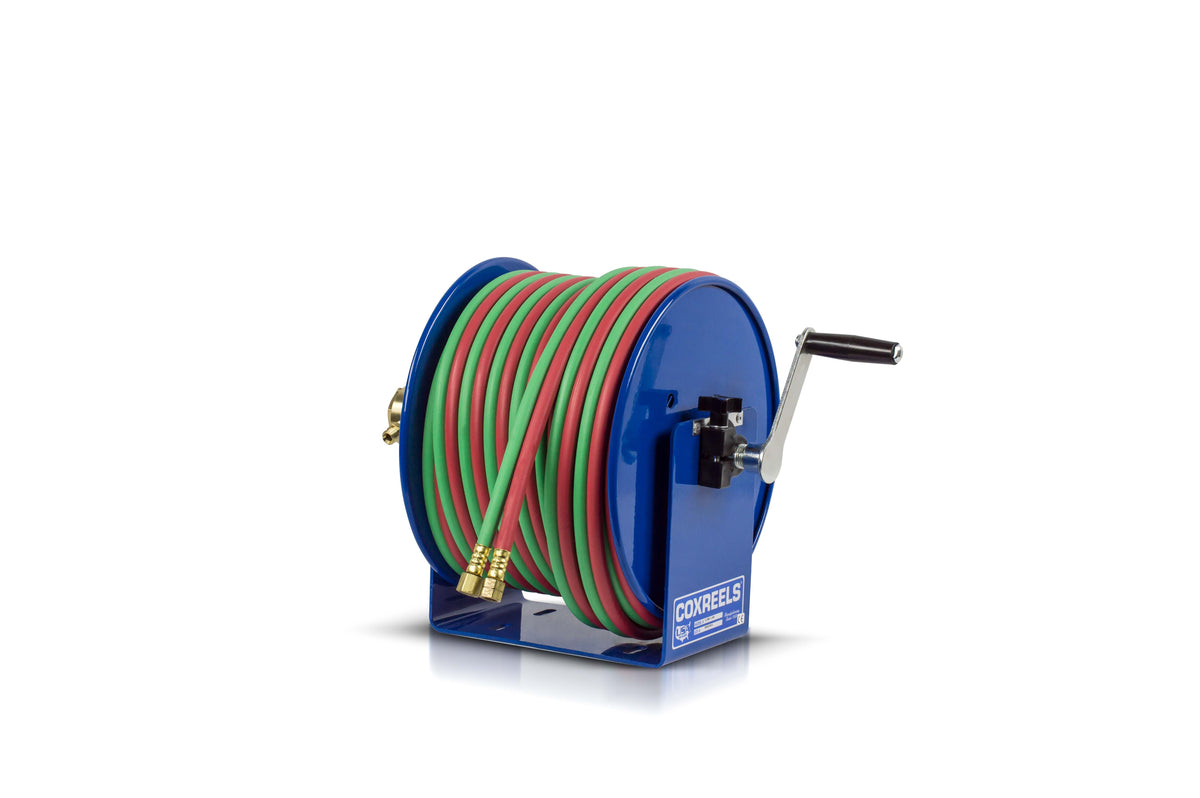

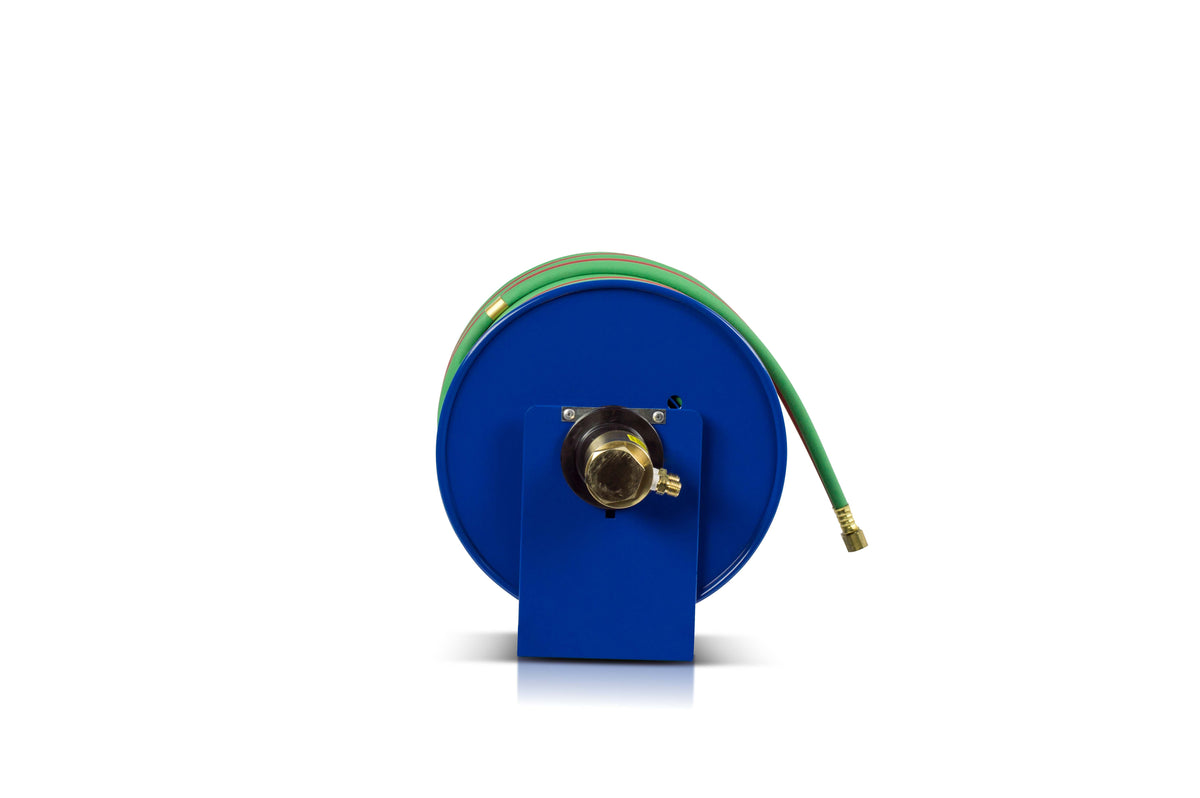

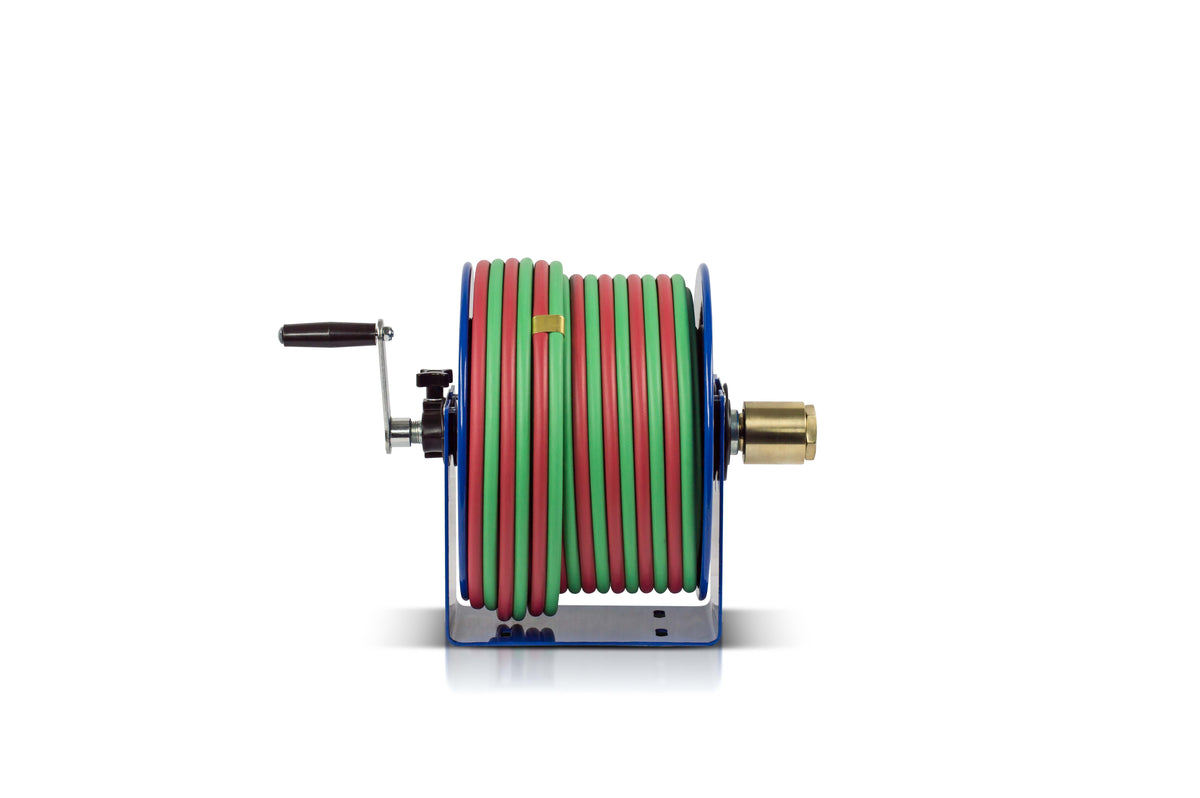

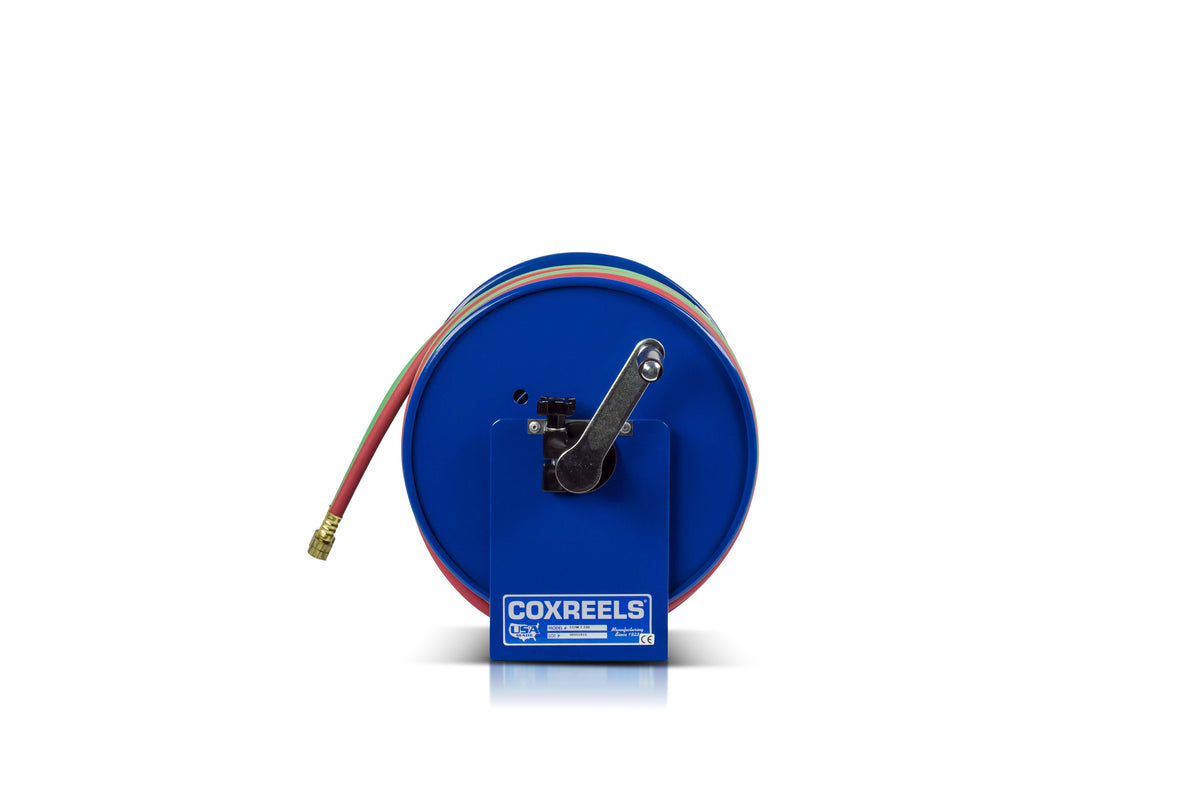

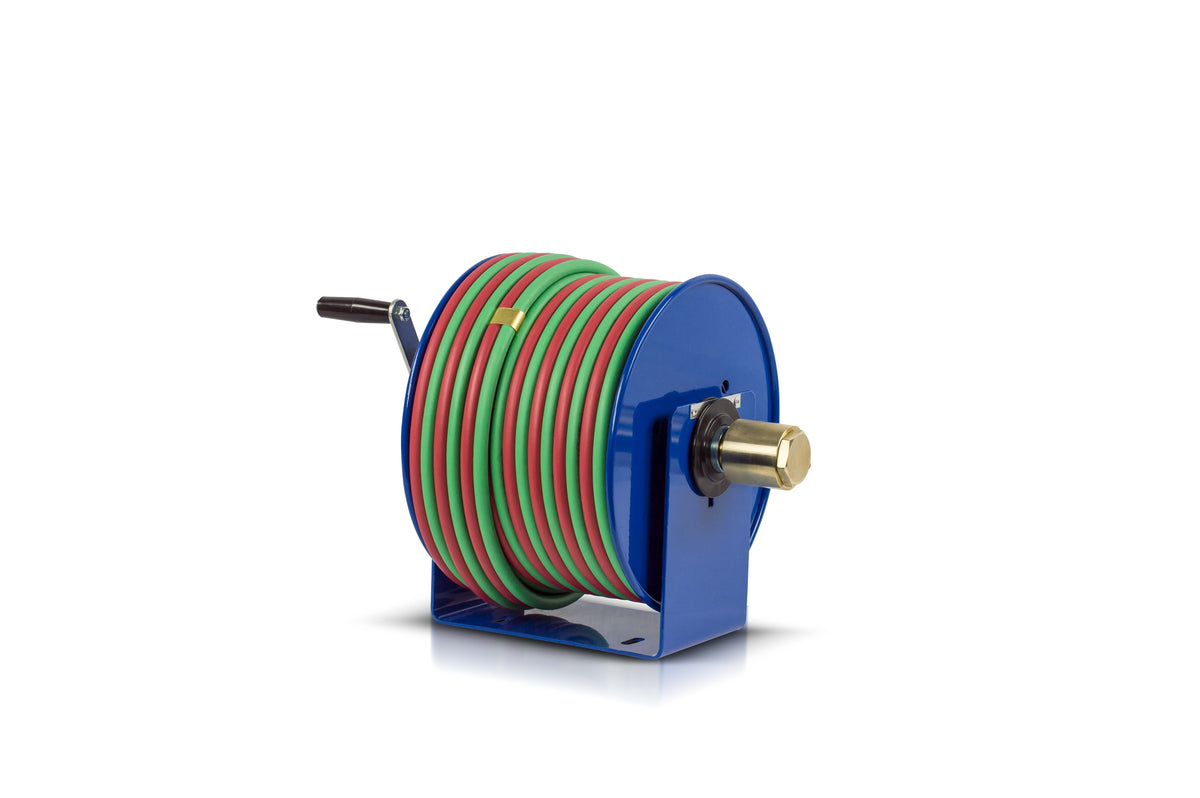

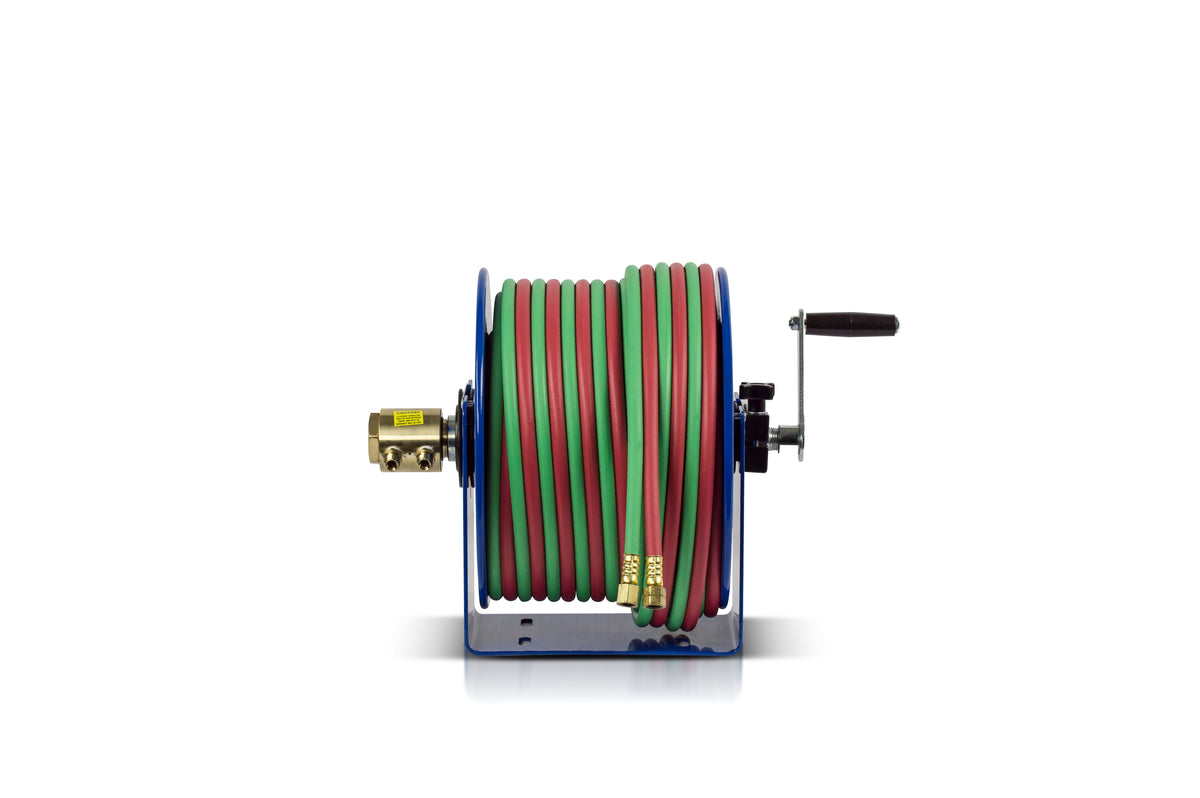

112W-1-50 by Coxreels | 100W Series | 200 PSI Hand Crank Hose Reel for Oxy-Acetylene Welding | 1/4" Hose ID, 1/4" FNPT Inlet x 1/4" MNPT Hose End | Steel | 50ft Twin EPDM Hose Included
Coxreels 100W Series Hand Crank Hose Reels
Steel U-frame hand crank hose reels for welding gas, rated to 200 PSI. Made in the U.S.A.
1
What is this product used for?
- Welding Gas
2
What are the key specifications?
Steel, U-frame
Brass 90° full-flow with Viton seals
1/4" FNPT
150°F
Lubricated EPDM Bearings
CPC™ powder coat
Floor, Wall, Vehicle Mounting
0.44 SLOT
3
What are the main product features?

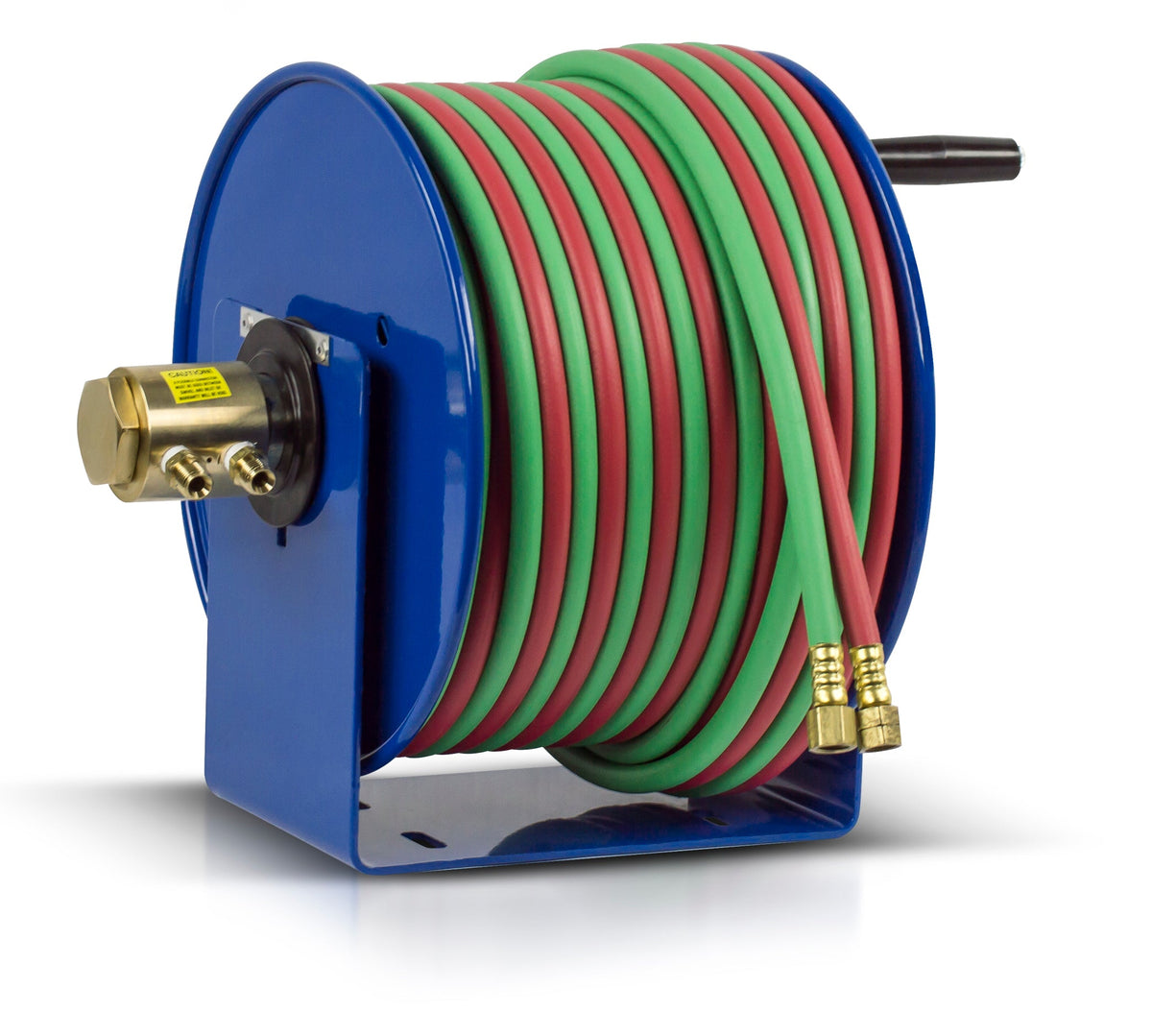

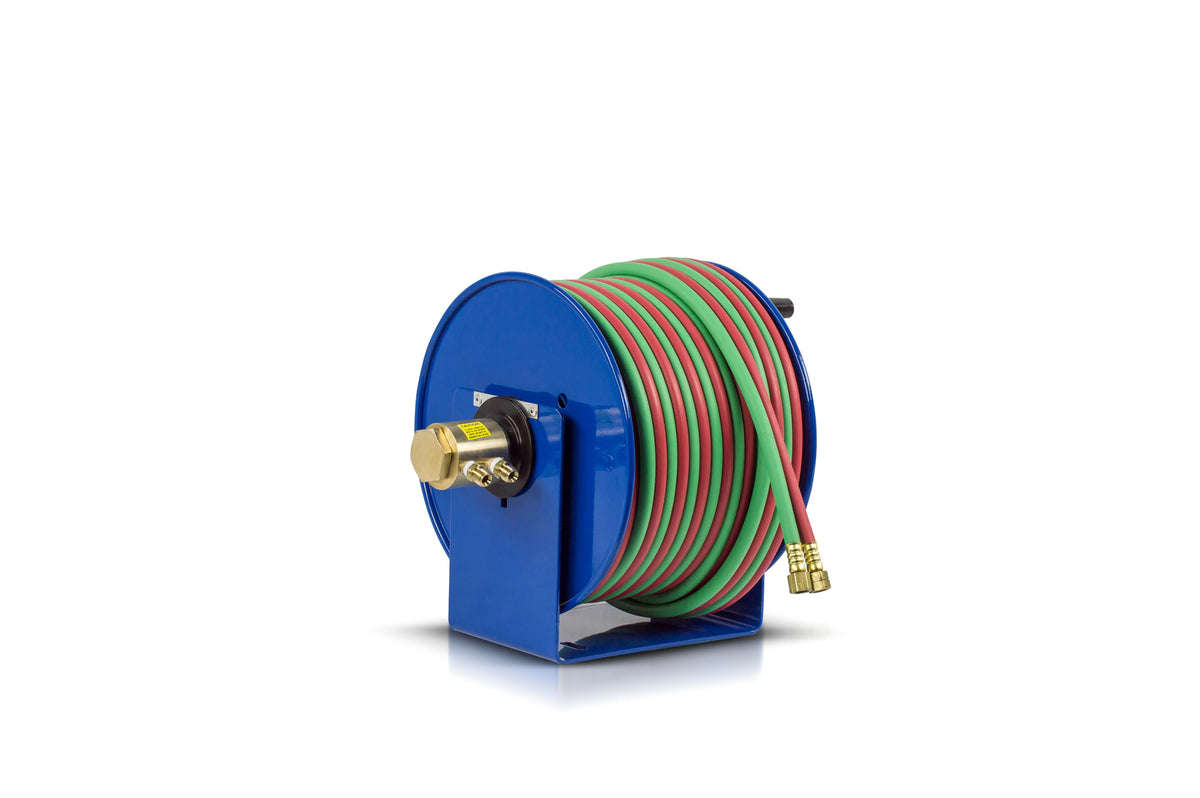

- Welding Gas Swivel — External 90° full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
- U Shaped Frame Design — Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Steel Construction — High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| EPDM | |||||
| 112W-1-50 | 1/4" | 50 ft | 200 | 4.5" | 15.5 × 13 × 12 |
| 117W-1-200 | 1/4" | 200 ft | 200 | 8" | 18.75 × 18 × 17 |
| Included | |||||
| 112WL-1-100 | 1/4" | 100 ft | 200 | 8" | 18.75 × 13 × 12 |
| Less hose | |||||
| 112W-1-100 | 1/4" | 100 ft | 200 | 8" | 18.75 × 13 × 12 |
| 112WL-1-50 | 1/4" | 50 ft | 200 | 4.5" | 15.5 × 13 × 12 |
| 112WTL-1-50 | 1/4" | 50 ft | 200 | 4.5" | 15.25 × 13 × 12 |
| 112WTL-1-100 | 1/4" | 100 ft | 200 | 8" | 18.75 × 13 × 12 |
| 117WL-1-200 | 1/4" | 200 ft | 200 | 8" | 18.75 × 18 × 17 |
| 117WTL-1-200 | 1/4" | 200 ft | 200 | 8" | 18.25 × 18 × 17 |
| Neoprene | |||||
| 112WT-1-50 | 1/4" | 50 ft | 200 | 4.5" | 15.25 × 13 × 12 |
| 112WT-1-100 | 1/4" | 100 ft | 200 | 8" | 18.75 × 13 × 12 |
| 117WT-1-200 | 1/4" | 200 ft | 200 | 8" | 18.25 × 18 × 17 |
5
Which accessories are available?
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| 4-way roller position | |
| -BXCX / -BXFX | Top payout, on reel: hand crank right / hand crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout hand crank, swivel left, crank right |
| -BXXX | Top payout hand crank, swivel right, crank left |
7
Where can I find product documents?
100W Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
