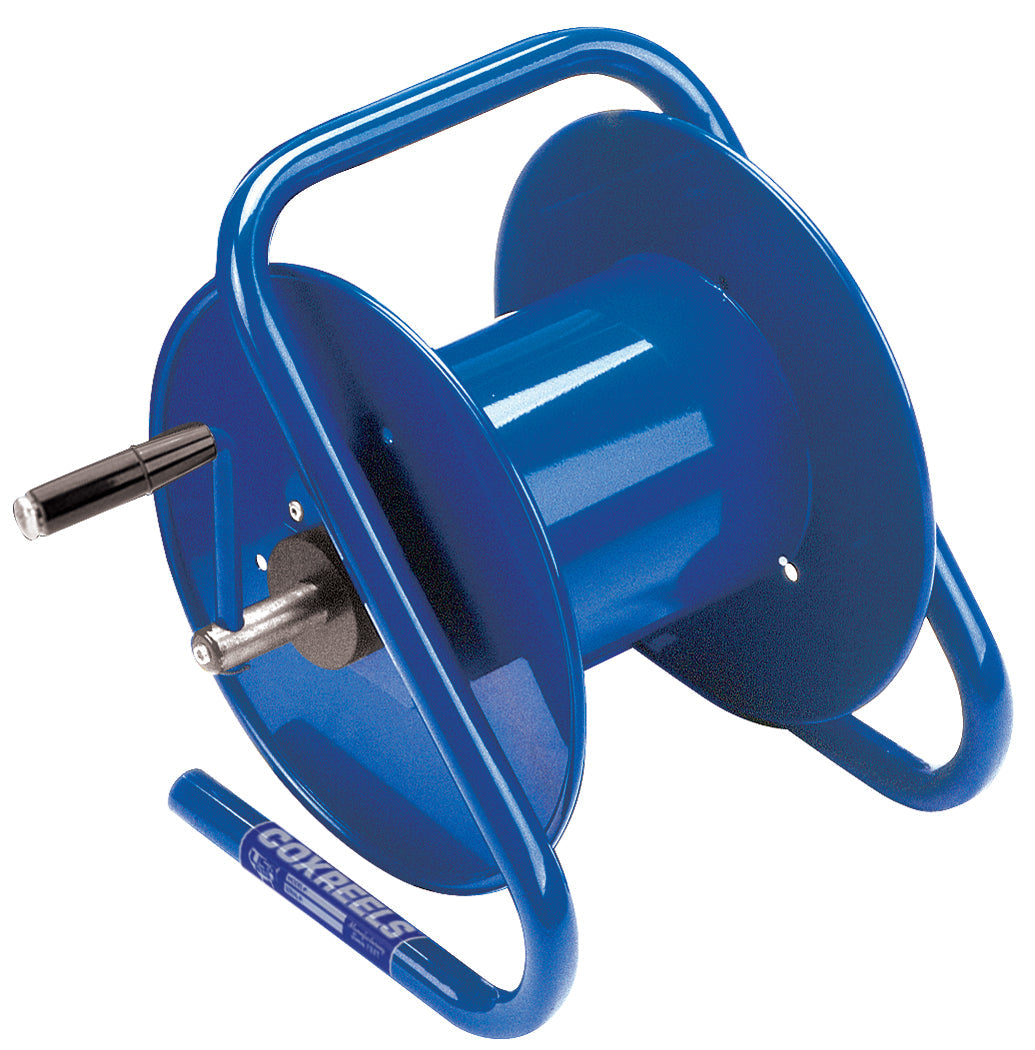

112P-3-8-CM by Coxreels | CM Pure Flow Series | 4,000 PSI Caddy Hand Crank Hose Reel for Breathing Air & Clean Fluids | 3/8" Hose ID, 3/8" FNPT Inlet | Steel | 100ft Capacity, Hose Not Included
Coxreels CM Pure Flow Series Hand Crank Hose Reels
Steel caddy-mount hand crank hose reels for potable water, clean fluids and breathing air, rated to 4,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Potable Water
- Clean Fluids
- Breathing Air
2
What are the key specifications?
Steel, caddy-mount
Stainless Steel 90° full-flow with Nitrile Non-Toxic Food Grade Grease seals
3/8" FNPT
250°F
Lubricated EPDM Bearings
CPC™ powder coat
Floor, Wall, Vehicle Mounting
0.44" slotted mounting holes
18.5 × 13 × 12 in
3
What are the main product features?
- Swivel — Non-corrosive stainless steel air/fluid path with machined for high quality stainless steel 90˚ full-flow NPT swivel inlet.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Safety Storage — Safely store respiratory air hose lines for low or high pressure breathing systems, potable water hose lines for drinking water systems, and any hose requiring sanitized and non-contaminated fluid transfer application
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI |
|---|---|---|---|
| 112P-3-8-CM | 3/8" | 100 ft | 4,000 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BZXX is -GZXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZXX | Less swivel |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
