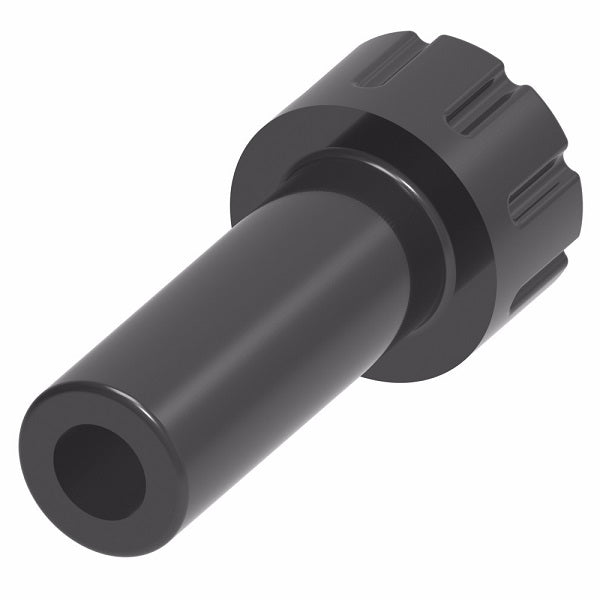

1129X8 by Danfoss | Push to Connect Adapter | Plug | 1/2" Tube OD | Plastic
1129X8 by Danfoss | Push to Connect Adapter | Plug | 1/2" Tube OD | Plastic

1129X8 by Danfoss | Push to Connect Adapter | Plug | 1/2" Tube OD | Plastic

Minimum Order Quantity: 5 Units

Sale price$6.36

Aeroquip® by Danfoss
Push to Connect Adapter - Plug
Buy More, Save More!
Quantity Price Each
20–39 $5.98
40–79 $5.41
80+ $4.77
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • Plastic
Compatible Series:
  • PT230 Series
  • TP160 Series
  • PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
.
Plastic
Part Number 		G Tube O.D. L P T
1129X2 1/8" 1.06" 0.24" 0.79"
1129X2.5 5/32" 1.14" 0.32" 0.79"
1129X4 1/4" 1.24" 0.32" 0.89"
1129X5 5/16" 1.36" 0.47" 0.96"
1129X6 3/8" 1.46" 0.47" 1.06"
1129X8 1/2" 1.59" 0.63" 1.12"
