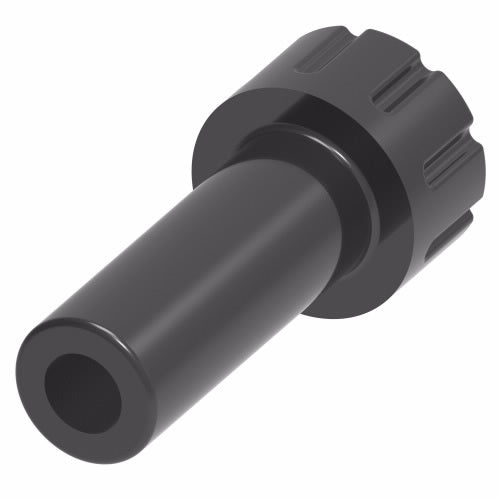

1129X6MRP by Danfoss | Metric Push to Connect Adapter | Plug | 6mm Tube OD | Plastic
1129X6MRP by Danfoss | Metric Push to Connect Adapter | Plug | 6mm Tube OD | Plastic
1129X6MRP by Danfoss | Metric Push to Connect Adapter | Plug | 6mm Tube OD | Plastic

1129X6MRP by Danfoss | Metric Push to Connect Adapter | Plug | 6mm Tube OD | Plastic

Minimum Order Quantity: 5 Units

Sale price$2.91

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Plug
Buy More, Save More!
Quantity Price Each
20–39 $2.74
40–79 $2.47
80+ $2.18
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Plastic
Compatible Series:
  • MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Plastic
Part Number 		Tube OD
(mm)		 L P T
1129X4MRP 4mm 29.0mm 8mm 20.0mm
1129X5MRP 5mm 29.5mm 8mm 20.5mm
1129X6MRP 6mm 31.5mm 8mm 22.5mm
1129X8MRP 8mm 34.5mm 12mm 24.5mm
1129X10MRP 10mm 37.0mm 12mm 27.0mm
1129X12MRP 12mm 40.5mm 16mm 28.5mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
