Motor driven cable reel

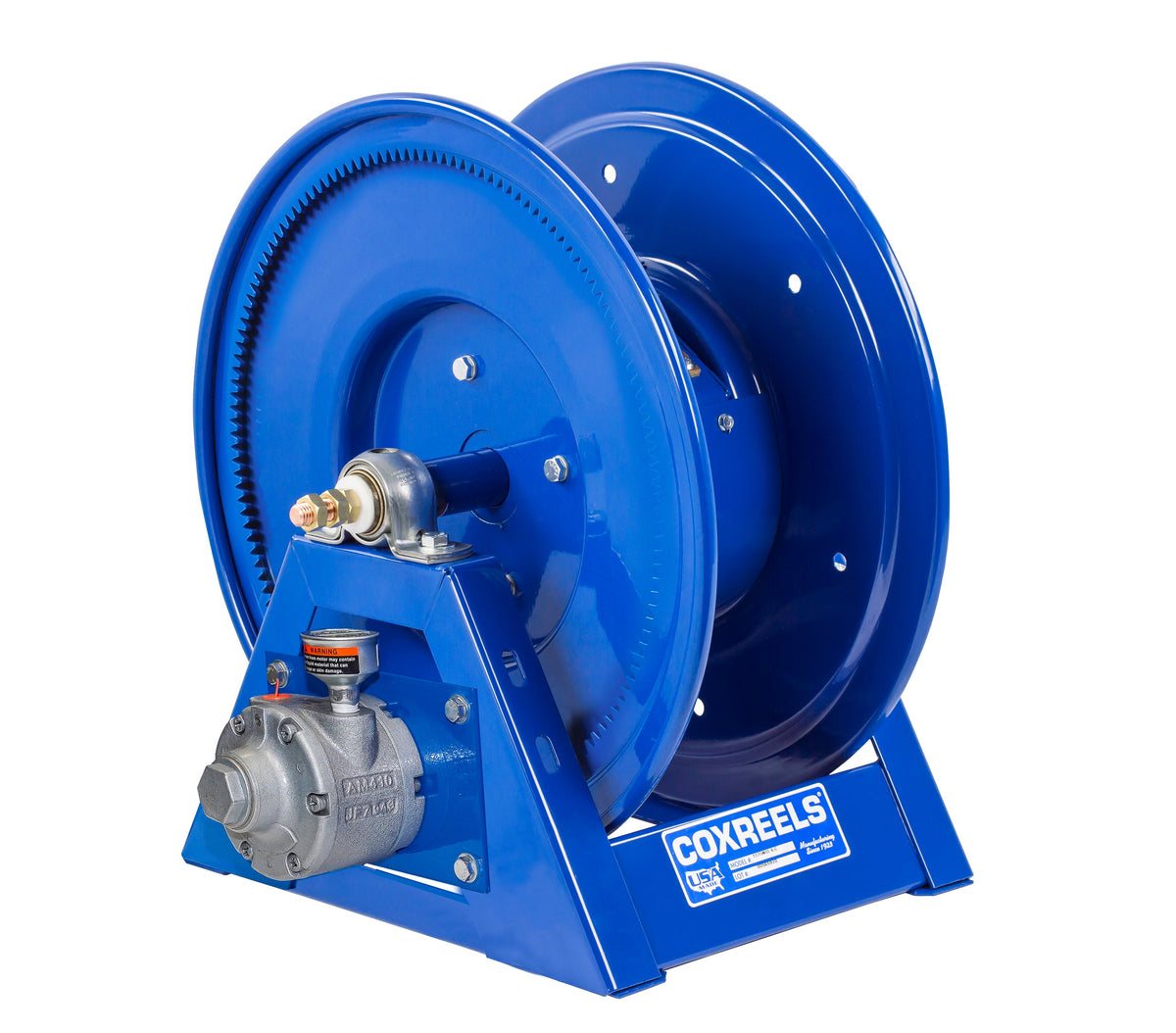

Coxreels 1125WCL Series Motor Driven Cable Reels
Steel A-frame motor driven cable reels for arc welding and grounding. Made in the U.S.A.
1
What is this product used for?
- Arc Welding & Grounding
2
What are the key specifications?
Construction
Steel, A-frame
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Slip Ring Assembly — Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
- Locking Pin — Long-handled locking pin secures reel from rotation during storage or transportation.
4
Which models are available?
| Part # | Cable | Length | Reel W × H × L (in) |
|---|---|---|---|
| 115V AC, 1/2 HP, explosion proof electric motor | |||
| 1125WCL-6-EA | #2 - #1 - #1/0 - #2/0 | 300 / 250 / 200 / 150 ft | 19.875 × 19.125 × 17.5 |
| 1125WCL-12-EA | #2 - #1 - #1/0 - #2/0 | 600 / 500 / 400 / 300 ft | 25.875 × 19.125 × 17.5 |
| 12V DC, 1/2 HP, explosion proof electric motor | |||
| 1125WCL-6-ED | #2 - #1 - #1/0 - #2/0 | 300 / 250 / 200 / 150 ft | 19.875 × 19.125 × 17.5 |
| 1125WCL-12-ED | #2 - #1 - #1/0 - #2/0 | 600 / 500 / 400 / 300 ft | 25.875 × 19.125 × 17.5 |
| 24V DC, 1/2 HP, explosion proof electric motor | |||
| 1125WCL-6-EB | #2 - #1 - #1/0 - #2/0 | 300 / 250 / 200 / 150 ft | 19.875 × 19.125 × 17.5 |
| 1125WCL-12-EB | #2 - #1 - #1/0 - #2/0 | 600 / 500 / 400 / 300 ft | 25.875 × 19.125 × 17.5 |
| Air motor (#4 Gast) | |||
| 1125WCL-6-A | #2 - #1 - #1/0 - #2/0 | 300 / 250 / 200 / 150 ft | 17.25 × 18.5 × 17.5 |
| 1125WCL-12-A | #2 - #1 - #1/0 - #2/0 | 600 / 500 / 400 / 300 ft | 23.25 × 18.5 × 17.5 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets | ||
| 7480-6 | Stacking Bracket | Drum width 6" |
| 7480-12 | Stacking Bracket | Drum width 12" |
| Roller guides | ||
| 15362-6 | 3-way roller bracket, bottom rewind | 1125WCL-6-EA/EB/ED |
| 15362-12 | 3-way roller bracket, bottom rewind | Drum width 12", plus 1125WCL-6-A |
| 15359-6 | 3-way roller bracket, top rewind | 1125WCL-6-EA/EB/ED |
| 15359-12 | 3-way roller bracket, top rewind | Drum width 12", plus 1125WCL-6-A |
| 15354-6 | 4-way roller bracket, bottom rewind | 1125WCL-6-EA/EB/ED |
| 15354-12 | 4-way roller bracket, bottom rewind | Drum width 12", plus 1125WCL-6-A |
| 15358-6 | 4-way roller bracket, top payout, ceiling mount applications | 1125WCL-6-EA/EB/ED |
| 15358-12 | 4-way roller bracket, top payout, ceiling mount applications | Drum width 12", plus 1125WCL-6-A |
| 15353-6 | 4-way roller bracket, top rewind | 1125WCL-6-EA/EB/ED |
| 15353-12 | 4-way roller bracket, top rewind | Drum width 12", plus 1125WCL-6-A |
| 15353-P-6 | 4-way roller bracket, top rewind extension | 1125WCL-6-EA/EB/ED |
| 15353-P-12 | 4-way roller bracket, top rewind extension | Drum width 12", plus 1125WCL-6-A |
| Upgrades and service parts — fit every model | ||
| 7406 | Gear Guards (for motor driven only) | |
| 8340 | Heavy Duty Band Brake | |
| 20843 | Spring Loaded Lock Pin | |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | Motor suffix -EA |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | Motor suffix -ED |
| 20878 | Circuit Breaker | Motor suffix -ED |
| 15212 | Control Valve for No. 4 Gast Air Motor | Motor suffix -A |
| 15210 | General Purpose Reversing Switch | Motor suffix -EA |
| 20876 | Sealed Push Button Switch | Motor suffix -EA, -EB, -ED except 1125WCL-12-EB |
| 20877 | Solenoid Relay | Motor suffix -ED |
| 8281 | Switch Box | Motor suffix -ED |
| 20883 | Vapor Proof Junction Box | Motor suffix -EA, -EB, -ED except 1125WCL-12-EB |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| 4-way roller position | |
| -BXCX | Top payout, on reel, hand crank right |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX | Bottom payout, on reel, hand crank left |
| 3-way roller position | |
| -BXEX | Top payout, on reel, hand crank right |
| -BXHX | Bottom payout, on reel, hand crank left |
7
Where can I find product documents?
1125WCL Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
