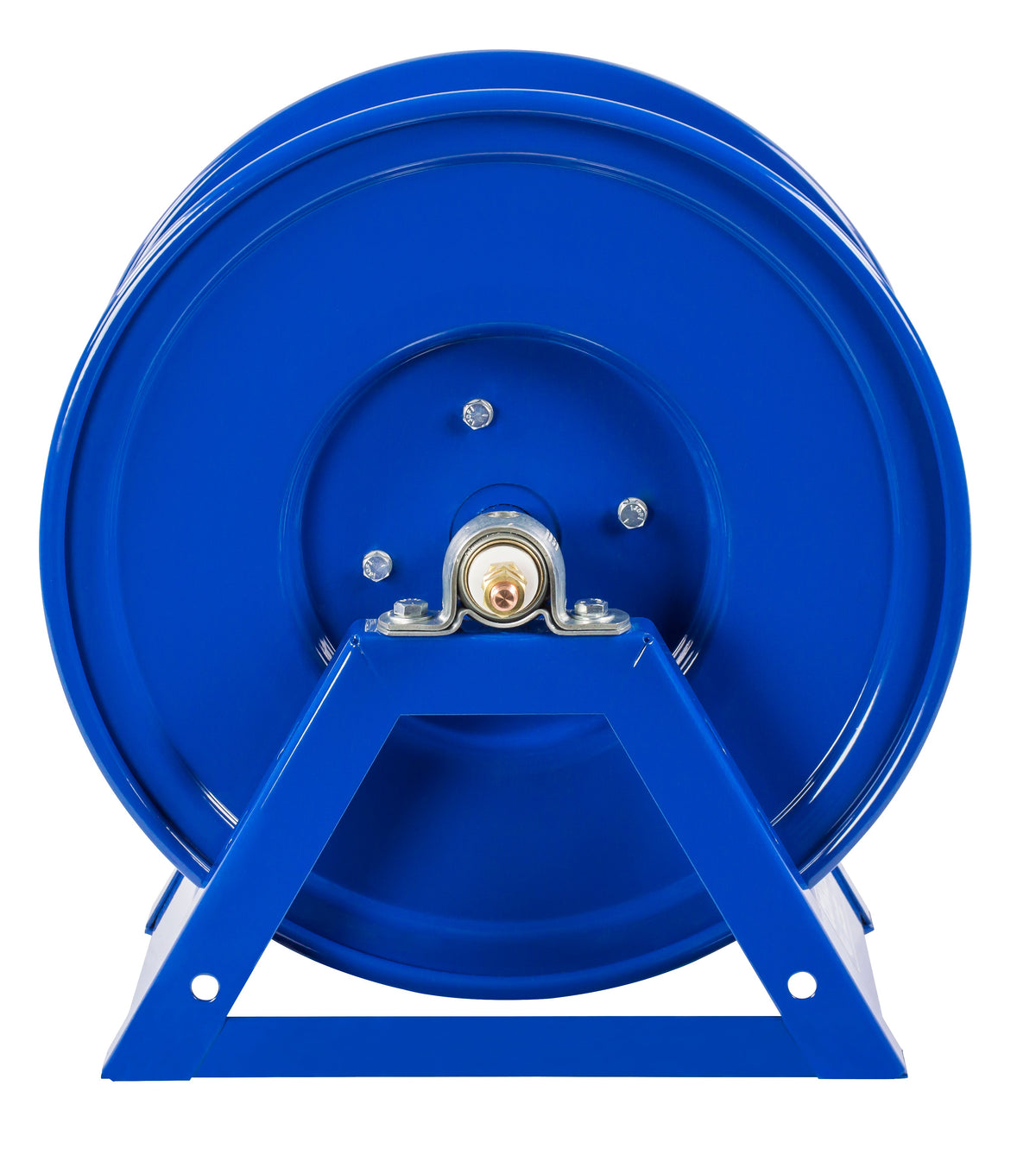

1125WCL-12-C by Coxreels | 1125WCL Series | Hand Crank Welding Cable Reel | #2, #1, #1/0 or #2/0 Cable, 450A | Steel | 600/500/400/300ft Capacity, Cable Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank cable reel
Coxreels 1125WCL Series Hand Crank Cable Reels
Steel A-frame hand crank cable reels for arc welding and grounding. Made in the U.S.A.
1
What is this product used for?
- Arc Welding & Grounding
2
What are the key specifications?
Construction
Steel, A-frame
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?

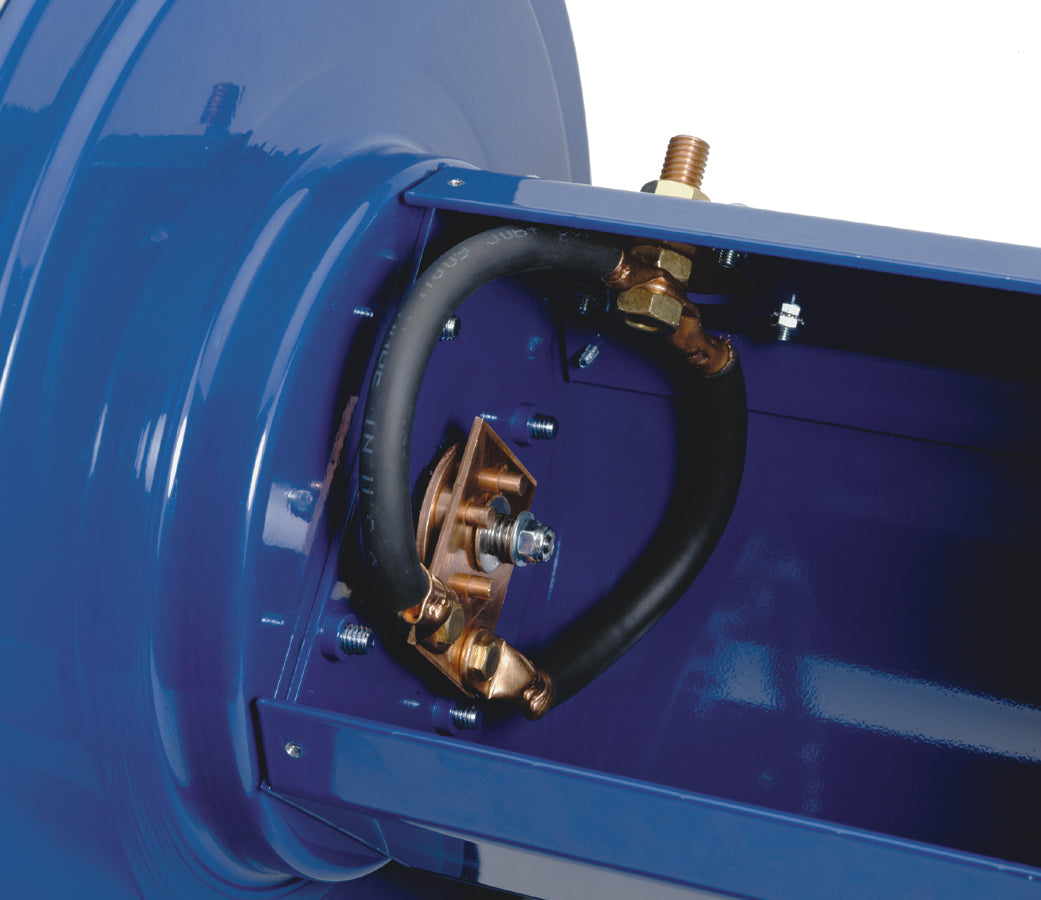

- Slip Ring Assembly — Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
- Locking Pin — Long-handled locking pin secures reel from rotation during storage or transportation.
4
Which models are available?
| Part # | Cable | Length | Reel W × H × L (in) |
|---|---|---|---|
| 1125WCL-6-C | #2 - #1 - #1/0 - #2/0 | 300 / 250 / 200 / 150 ft | 18.75 × 18.5 × 17.5 |
| 1125WCL-12-C | #2 - #1 - #1/0 - #2/0 | 600 / 500 / 400 / 300 ft | 24.75 × 18.5 × 17.5 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets | ||
| 7480-6 | Stacking Bracket | Every model except 1125WCL-12-C |
| 7480-12 | Stacking Bracket | Every model except 1125WCL-6-C |
| Roller guides | ||
| 15362-6 | 3-way roller bracket, bottom rewind | Every model except 1125WCL-12-C |
| 15362-12 | 3-way roller bracket, bottom rewind | Every model except 1125WCL-6-C |
| 15359-6 | 3-way roller bracket, top rewind | Every model except 1125WCL-12-C |
| 15359-12 | 3-way roller bracket, top rewind | Every model except 1125WCL-6-C |
| 15354-6 | 4-way roller bracket, bottom rewind | Every model except 1125WCL-12-C |
| 15354-12 | 4-way roller bracket, bottom rewind | Every model except 1125WCL-6-C |
| 15358-6 | 4-way roller bracket, top payout, ceiling mount applications | Every model except 1125WCL-12-C |
| 15358-12 | 4-way roller bracket, top payout, ceiling mount applications | Every model except 1125WCL-6-C |
| 15353-6 | 4-way roller bracket, top rewind | Every model except 1125WCL-12-C |
| 15353-12 | 4-way roller bracket, top rewind | Every model except 1125WCL-6-C |
| 15353-P-6 | 4-way roller bracket, top rewind extension | Every model except 1125WCL-12-C |
| 15353-P-12 | 4-way roller bracket, top rewind extension | Every model except 1125WCL-6-C |
| Upgrades and service parts — fit every model | ||
| 20843 | Spring Loaded Lock Pin | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| 4-way roller position | |
| -BXCX | Top payout, on reel, hand crank right |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX | Bottom payout, on reel, hand crank left |
| 3-way roller position | |
| -BXEX | Top payout, on reel, hand crank right |
| -BXHX | Bottom payout, on reel, hand crank left |
7
Where can I find product documents?
1125WCL Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
