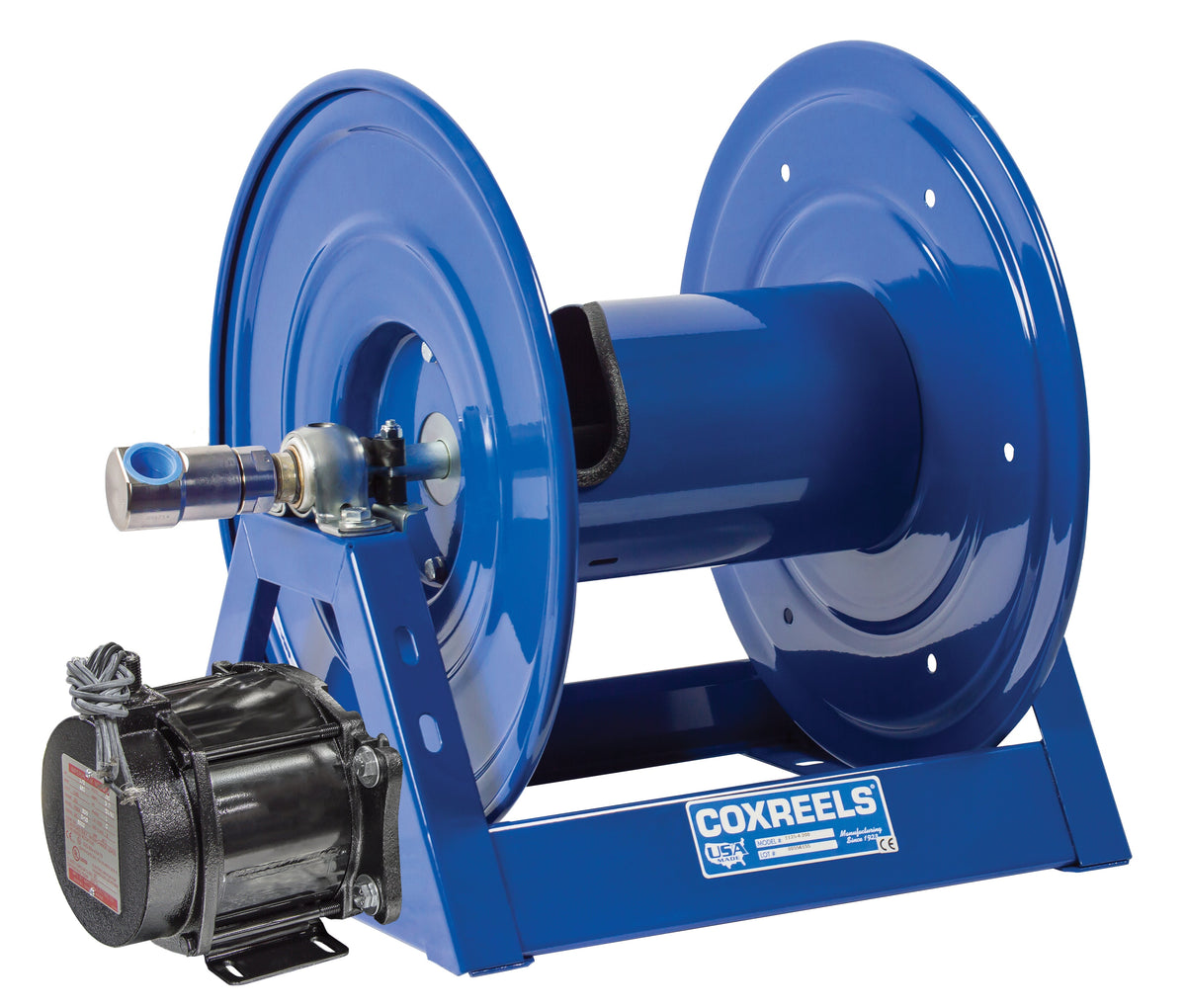

1125-6-75-EB by Coxreels | 1125 Series | 3,000 PSI Motor Driven Hose Reel | 24V DC 1/2 HP Explosion Proof Electric Motor | 1" Hose ID, 1" FNPT Inlet | Steel | 75ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels 1125 Series Motor Driven Hose Reels
Steel A-frame motor driven hose reels for air, water, oil and lubrication, washdown and pressure washing, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Oil & Lubrication
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Hydro Seeding
- Chemical Fluid Transfer
- Fire Booster Hose
2
What are the key specifications?
Construction
Steel, A-frame
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
250°F / 225°F depending on hose
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Base Model | Hose I.D. | Capacity | Max PSI | Drum Width | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1125-4-100 | 1/2" | 100 ft | 3,000 | 6" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1125-4-200 | 1/2" | 200 ft | 3,000 | 12" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1125-4-325 | 1/2" | 325 ft | 3,000 | 18" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1125-4-450 | 1/2" | 450 ft | 3,000 | 24" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | — |
| 1125-4-500 | 1/2" | 500 ft | 3,000 | 28" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | — |
| 1125-5-50 | 3/4" | 50 ft | 3,000 | 6" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | — |
| 1125-5-100 | 3/4" | 100 ft | 3,000 | 12" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1125-5-175 | 3/4" | 175 ft | 3,000 | 18" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | — |
| 1125-5-200 | 3/4" | 200 ft | 3,000 | 24" | -A | -E | -H | — | -EA | -EB | -ED | -EF | — |
| 1125-5-250 | 3/4" | 250 ft | 3,000 | 28" | -A | -E | -H | — | -EA | -EB | -ED | -EF | — |
| 1125-6-35 | 1" | 35 ft | 3,000 | 9.5" | -A | -E | -H | — | -EA | -EB | -ED | -EF | — |
| 1125-6-50 | 1" | 50 ft | 3,000 | 15.5" | -A | -E | -H | -AB | -EA | -EB | -ED | — | -EJ |
| 1125-6-75 | 1" | 75 ft | 3,000 | 22" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | — |
| 1125-6-100 | 1" | 100 ft | 3,000 | 28" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
Part number = base model + motor suffix (e.g. 1125-4-100-A). Suffix key:
| Suffix | Motor |
|---|---|
| -A | Air motor (#4 Gast) |
| -E | 12V DC, 1/3 HP electric motor |
| -H | Hydraulic motor |
| -AB | Air motor (#6 Gast) |
| -EA | 115V AC, 1/2 HP, explosion proof electric motor |
| -EB | 24V DC, 1/2 HP, explosion proof electric motor |
| -ED | 12V DC, 1/2 HP, explosion proof electric motor |
| -EF | 24V DC, 1/3 HP electric motor |
| -EJ | 230V AC, 1/2 HP, explosion proof electric motor |
5
Which accessories are available?
Mounting brackets — by drum width:
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit capacity 75 ft | ||
| 7480-22 | Stacking Bracket | |
Roller guides — by drum width:
| Accessory | 6" | 9.5" | 12" | 15.5" | 18" | 22" | 24" | 28" |
|---|---|---|---|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15362-6 | 15362-9.5 | 15362-12 | 15362-15.5 | 15362-18 | 15362-22 | 15362-24 | 15362-28 |
| 3-way roller bracket, top rewind | 15359-6 | 15359-9.5 | 15359-12 | 15359-15.5 | 15359-18 | 15359-22 | 15359-24 | 15359-28 |
| 4-way roller bracket, bottom rewind | 15354-6 | 15354-9.5 | 15354-12 | 15354-15.5 | 15354-18 | 15354-22 | 15354-24 | 15354-28 |
| 4-way roller bracket, top payout, ceiling mount applications | 15358-6 | 15358-9.5 | 15358-12 | 15358-15.5 | 15358-18 | 15358-22 | 15358-24 | 15358-28 |
| 4-way roller bracket, top rewind | 15353-6 | 15353-9.5 | 15353-12 | 15353-15.5 | 15353-18 | 15353-22 | 15353-24 | 15353-28 |
| 4-way roller bracket, top rewind extension | 15353-P-6 | 15353-P-9.5 | 15353-P-12 | 15353-P-15.5 | 15353-P-18 | 15353-P-22 | 15353-P-24 | 15353-P-28 |
Upgrades and service parts — by hose i.d.:
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts — fit every model except 1125-6-75-AB | ||
| 7406 | Gear Guards (for motor driven only) | |
| 8340 | Heavy Duty Band Brake | |
| 20843 | Spring Loaded Lock Pin | |
| 15735 | Wand Holder | |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | -EA, -EJ models, plus 1125-5-175-EF |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | -E, -ED models |
| 20878 | Circuit Breaker | -E, -ED models |
| 15212 | Control Valve for No. 4 Gast Air Motor | -A models |
| 15212-1 | Control Valve for No. 6 Gast Air Motor | -AB models |
| 20882 | Explosion Proof Stationary Push Button Switch | -E models |
| 15210 | General Purpose Reversing Switch | -EA, -EJ models, plus 1125-5-175-EF |
| 20876 | Sealed Push Button Switch | -E, -EA, -EB, -ED, -EF, -EJ models |
| 20877 | Solenoid Relay | -E, -ED models |
| 8281 | Switch Box | -E, -ED models |
| 20883 | Vapor Proof Junction Box | -E, -EA, -EB, -ED, -EF, -EJ models |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Prefix — added before the model number | |
| BX- | Brawny Reel Upgrade |
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BZXX | Less swivel |
| -BYXX | Less swivel, no riser, storage |
| -BAXX / -BBXX / -BDXX / -BCXX | Stainless steel plumbing & swivel: standard seal / with Viton / with food grade / with EPR |
| 4-way roller position | |
| -BXCF / -BXCG / -BXCX / -BXCD | Top payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX / -BXFD / -BXFF / -BXFG | Bottom payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front |
| 3-way roller position | |
| -BXEF / -BXEG / -BXEX / -BXED | Top payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front |
| -BXHX / -BXHD / -BXHF / -BXHG | Bottom payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front |
| Swivel and motor/crank position | |
| -BXXX | Top payout motorized standard, swivel left, motor left |
| -BXAF | Top payout motorized standard, swivel right, motor right |
| -BXXD | Top payout motorized offset motor, swivel left, motor left front |
| -BXAG | Top payout motorized offset motor, swivel right, motor right rear |
| -BXAF | Bottom payout motorized standard, swivel left, motor left |
| -BXXX | Bottom payout motorized standard, swivel right, motor right |
| -BXAG | Bottom payout motorized offset motor, swivel left, motor left front |
| -BXXD | Bottom payout motorized offset motor, swivel right, motor right rear |
7
Where can I find product documents?
1125 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Contact Us
Need a Custom Product?
Please provide as much detail you can on your use case and one of our agents will respond ASAP.
