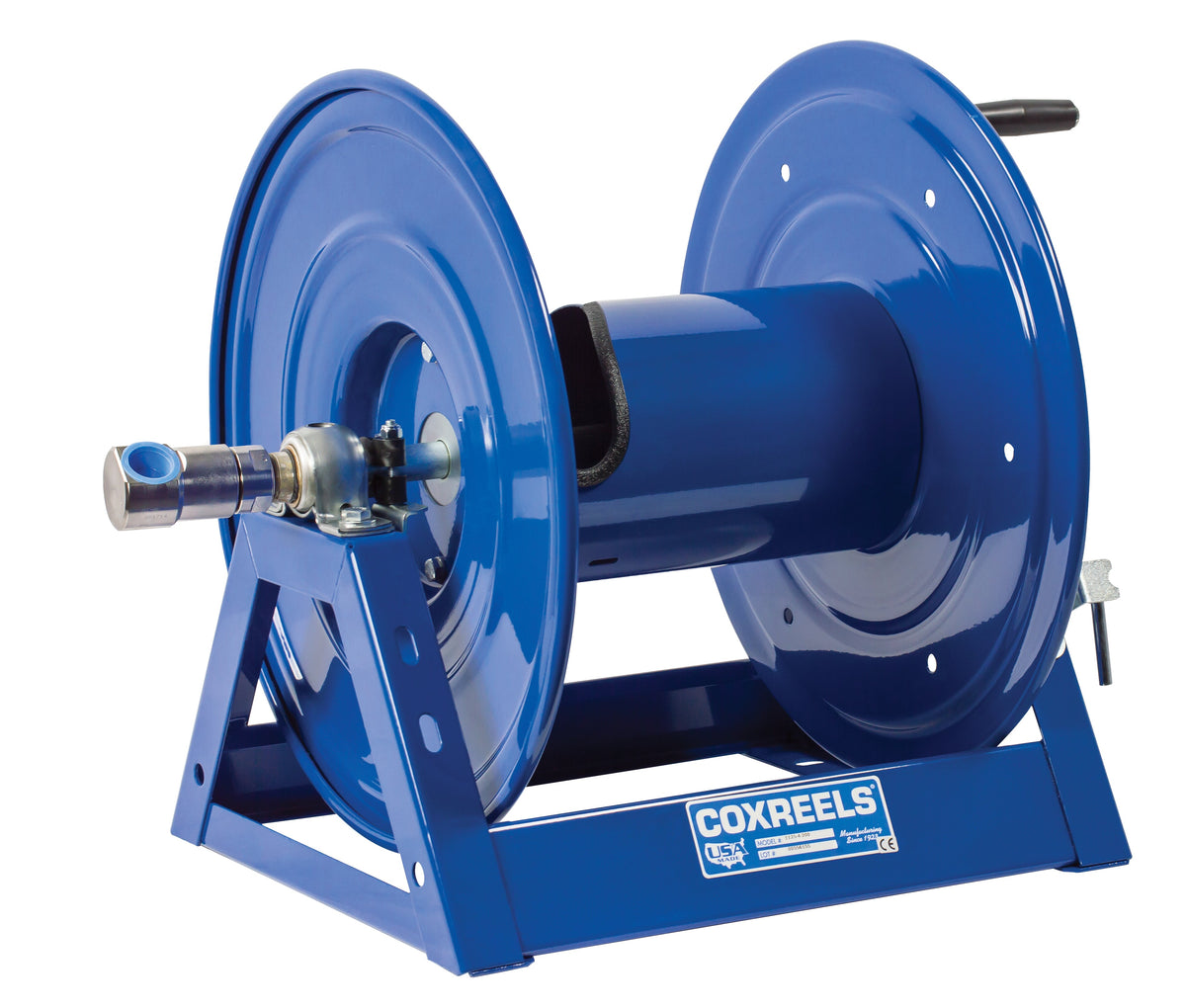

1125-6-75 by Coxreels | 1125 Series | 3,000 PSI Hand Crank Hose Reel | 1" Hose ID, 1" FNPT Inlet | Steel | 75ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels 1125 Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for air, water, oil and lubrication, washdown and pressure washing, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Oil & Lubrication
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Hydro Seeding
- Chemical Fluid Transfer
- Fire Booster Hose
2
What are the key specifications?
Construction
Steel, A-frame
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
250°F / 275°F depending on hose
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
0.5" slotted mounting holes
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1125-4-100 | 1/2" | 100 ft | 3,000 | 6" | 19.5 × 18.75 × 17.625 |
| 1125-4-100-C | 1/2" | 100 ft | 3,000 | 6" | 19.5 × 18.75 × 17.625 |
| 1125-4-200 | 1/2" | 200 ft | 3,000 | 12" | 25.5 × 18.75 × 17.625 |
| 1125-4-200-C | 1/2" | 200 ft | 3,000 | 12" | 25.5 × 18.75 × 17.625 |
| 1125-4-325 | 1/2" | 325 ft | 3,000 | 18" | 31.5 × 18.75 × 17.625 |
| 1125-4-325-C | 1/2" | 325 ft | 3,000 | 18" | 31.5 × 18.75 × 17.625 |
| 1125-4-450 | 1/2" | 450 ft | 3,000 | 24" | 37.5 × 18.75 × 17.625 |
| 1125-4-450-C | 1/2" | 450 ft | 3,000 | 24" | 37.5 × 18.75 × 17.625 |
| 1125-4-500 | 1/2" | 500 ft | 3,000 | 28" | 41.5 × 18.75 × 17.625 |
| 1125-4-500-C | 1/2" | 500 ft | 3,000 | 28" | 41.5 × 18.75 × 17.625 |
| 1125-5-50 | 3/4" | 50 ft | 3,000 | 6" | 20.75 × 18.75 × 17.625 |
| 1125-5-50-C | 3/4" | 50 ft | 3,000 | 6" | 20.75 × 18.75 × 17.625 |
| 1125-5-100 | 3/4" | 100 ft | 3,000 | 12" | 26.75 × 18.75 × 17.625 |
| 1125-5-100-C | 3/4" | 100 ft | 3,000 | 12" | 26.75 × 18.75 × 17.625 |
| 1125-5-175 | 3/4" | 175 ft | 3,000 | 18" | 32.375 × 18.75 × 17.625 |
| 1125-5-175-C | 3/4" | 175 ft | 3,000 | 18" | 32.375 × 18.75 × 17.625 |
| 1125-5-200 | 3/4" | 200 ft | 3,000 | 24" | 39.25 × 18.125 × 17.625 |
| 1125-5-200-C | 3/4" | 200 ft | 3,000 | 24" | 39.25 × 18.125 × 17.625 |
| 1125-5-250 | 3/4" | 250 ft | 3,000 | 28" | 42.25 × 18.75 × 17.625 |
| 1125-5-250-C | 3/4" | 250 ft | 3,000 | 28" | 42.25 × 18.75 × 17.625 |
| 1125-6-35 | 1" | 35 ft | 3,000 | 9.5" | 26 × 18.5 × 17.625 |
| 1125-6-35-C | 1" | 35 ft | 3,000 | 9.5" | 26 × 18.5 × 17.625 |
| 1125-6-50 | 1" | 50 ft | 3,000 | 15.5" | 32 × 18.5 × 17.625 |
| 1125-6-50-C | 1" | 50 ft | 3,000 | 15.5" | 32 × 18.5 × 17.625 |
| 1125-6-75 | 1" | 75 ft | 3,000 | 22" | 38.5 × 18.5 × 17.625 |
| 1125-6-100 | 1" | 100 ft | 3,000 | 28" | 44.5 × 18.5 × 17.625 |
| 1125-6-100-C | 1" | 100 ft | 3,000 | 28" | 44.5 × 18.5 × 17.625 |
5
Which accessories are available?
Mounting brackets — by drum width:
Roller guides — by drum width:
| Accessory | 6" | 9.5" | 15.5" | 22" | 24" | 28" |
|---|---|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15362-6 | 15362-9.5 | 15362-15.5 | 15362-22 | 15362-24 | 15362-28 |
| 3-way roller bracket, top rewind | 15359-6 | 15359-9.5 | 15359-15.5 | 15359-22 | 15359-24 | 15359-28 |
| 4-way roller bracket, bottom rewind | 15354-6 | 15354-9.5 | 15354-15.5 | 15354-22 | 15354-24 | 15354-28 |
| 4-way roller bracket, top payout, ceiling mount applications | 15358-6 | 15358-9.5 | 15358-15.5 | 15358-22 | 15358-24 | 15358-28 |
| 4-way roller bracket, top rewind | 15353-6, 15355-6 | 15353-9.5, 15355-9.5 | 15353-15.5, 15355-15.5 | 15353-22 | 15353-24, 15355-24 | 15353-28, 15355-28 |
| 4-way roller bracket, top rewind extension | 15353-P-6 | 15353-P-9.5 | 15353-P-15.5 | 15353-P-22 | 15353-P-24 | 15353-P-28 |
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15362-12 | 3-way roller bracket, bottom rewind | 1125-4-200-C; 1125-5-100-C; 1125-4-200 |
| 15362-18 | 3-way roller bracket, bottom rewind | Drum width 18", plus 1125-5-100 |
| 15359-12 | 3-way roller bracket, top rewind | 1125-4-200-C; 1125-5-100-C; 1125-4-200 |
| 15359-18 | 3-way roller bracket, top rewind | Drum width 18", plus 1125-5-100 |
| 15354-12 | 4-way roller bracket, bottom rewind | 1125-4-200-C; 1125-5-100-C; 1125-4-200 |
| 15354-18 | 4-way roller bracket, bottom rewind | Drum width 18", plus 1125-5-100 |
| 15358-12 | 4-way roller bracket, top payout, ceiling mount applications | 1125-4-200-C; 1125-5-100-C; 1125-4-200 |
| 15358-18 | 4-way roller bracket, top payout, ceiling mount applications | Drum width 18", plus 1125-5-100 |
| 15353-12 | 4-way roller bracket, top rewind | 1125-4-200 |
| 15353-18 | 4-way roller bracket, top rewind | 1125-5-175-C; 1125-4-325; 1125-5-100/175 |
| 15355-12 | 4-way roller bracket, top rewind | 1125-4-200-C; 1125-5-100-C |
| 15355-18 | 4-way roller bracket, top rewind | 1125-4-325-C |
| 15353-P-12 | 4-way roller bracket, top rewind extension | 1125-4-200-C; 1125-5-100-C; 1125-4-200 |
| 15353-P-18 | 4-way roller bracket, top rewind extension | Drum width 18", plus 1125-5-100 |
| Hose guides — fit every model | ||
| 15732 | Pivoting Hose Guide - Bottom Return | |
| 15733 | Pivoting Hose Guide - Top Return | |
| 15734 | Sliding Hose Guide | |
| Inlet connections — fit hose I.D. 1/2" | ||
| 15717 | Garden Hose Kit | |
Upgrades and service parts — by hose i.d.:
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts | ||
| 8340 | Heavy Duty Band Brake | 1125-6-100-C; 1125-6-100 |
| 20843 | Spring Loaded Lock Pin | Every model |
| 15735 | Wand Holder | Every model |
| Carts | ||
| PR-1125-HC | Carry Handles | 1125-4-100-C; 1125-4-200-C; 1125-4-100/200 |
| PRP-1125-6 | Portable Cart - (w/ 8" semi-pneumatic tires) | 1125-4-100-C; 1125-4-100 |
| PRP-1125-12 | Portable Cart - (w/ 8" semi-pneumatic tires) | 1125-4-200-C; 1125-4-200 |
| PR-1125-6 | Portable Cart - (w/ Solid 8" rubber tires) | Drum width 6" |
| PR-1125-12 | Portable Cart - (w/ Solid 8" rubber tires) | 1125-4-200-C; 1125-4-200 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Prefix — added before the model number | |
| BX- | Brawny Reel Upgrade |
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BZXX | Less swivel |
| -BYXX | Less swivel, no riser, storage |
| -BAXX / -BBXX / -BDXX / -BCXX | Stainless steel plumbing & swivel: standard seal / with Viton / with food grade / with EPR |
| 4-way roller position | |
| -BXCX / -BXCF / -BXCX / -BXCF | Top payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFF / -BXFX / -BXFF / -BXFX | Bottom payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| 3-way roller position | |
| -BXEX / -BXEF / -BXEX / -BXEF | Top payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| -BXHF / -BXHX / -BXHF / -BXHX | Bottom payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout hand crank, swivel left, crank right |
| -BXAF | Top payout hand crank, swivel right, crank left |
| -BXAF | Bottom payout hand crank, swivel left, crank right |
| -BXXX | Bottom payout hand crank, swivel right, crank left |
| -BXXX | Top payout bevel crank, swivel left, crank right |
| -BXAF | Top payout bevel crank, swivel right, crank left |
| -BXAF | Bottom payout bevel crank, swivel left, crank right |
| -BXXX | Bottom payout bevel crank, swivel right, crank left |
7
Where can I find product documents?
1125 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
