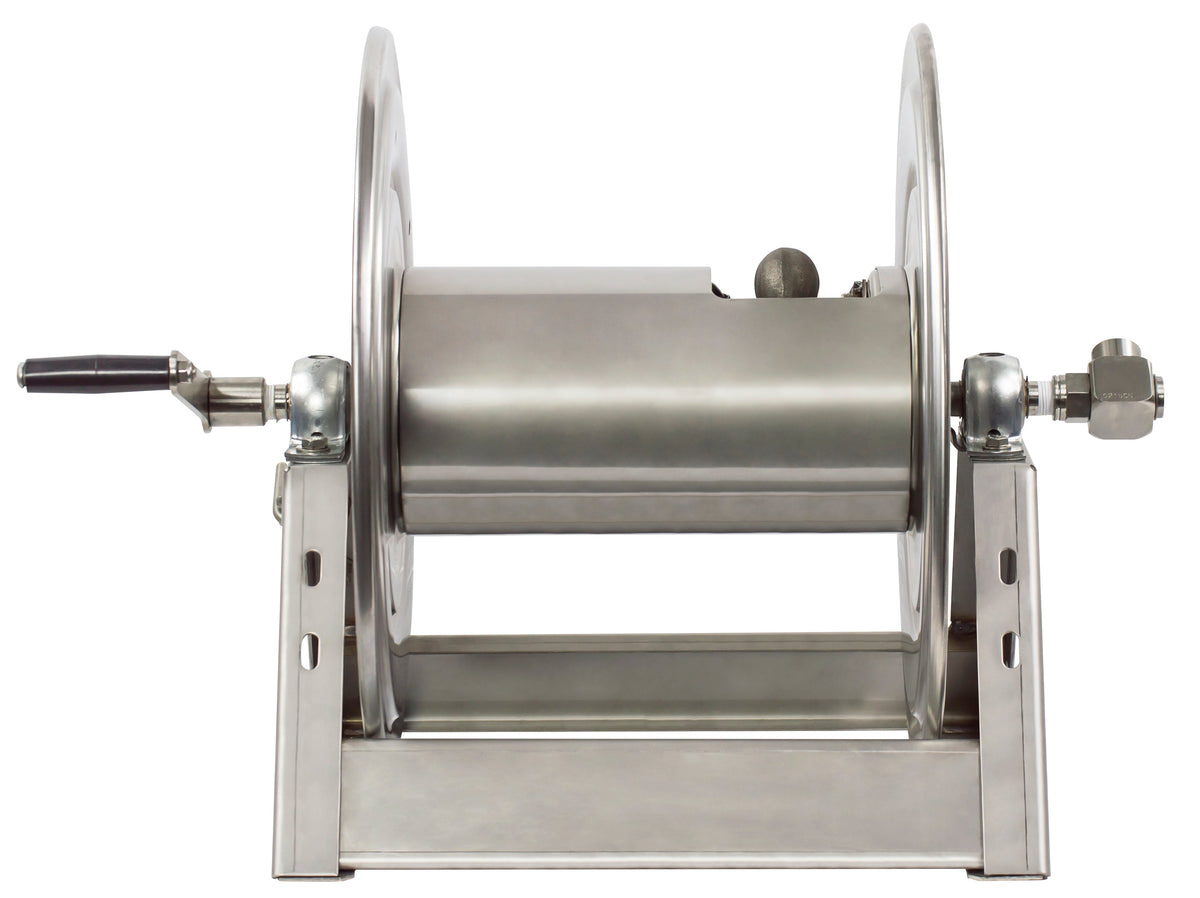

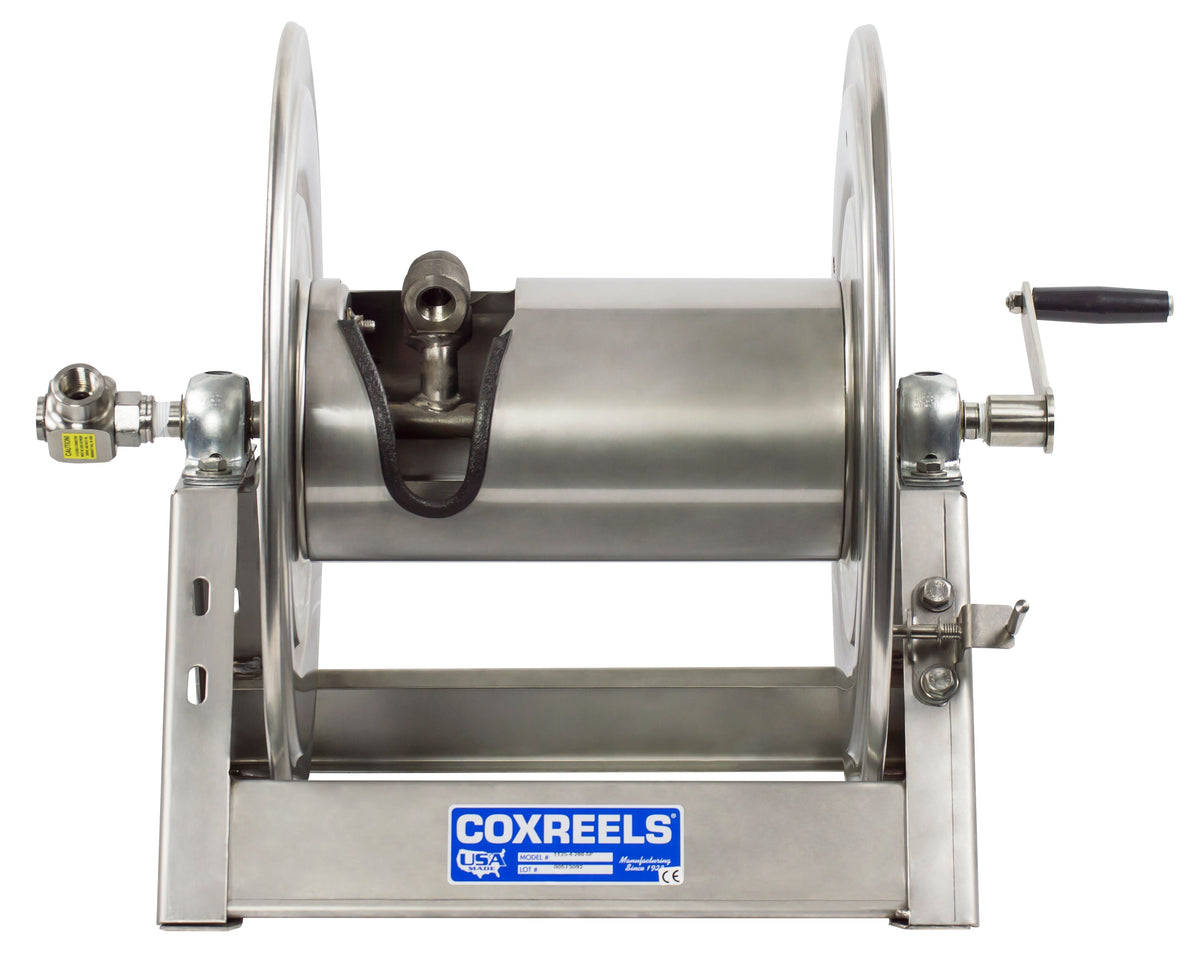

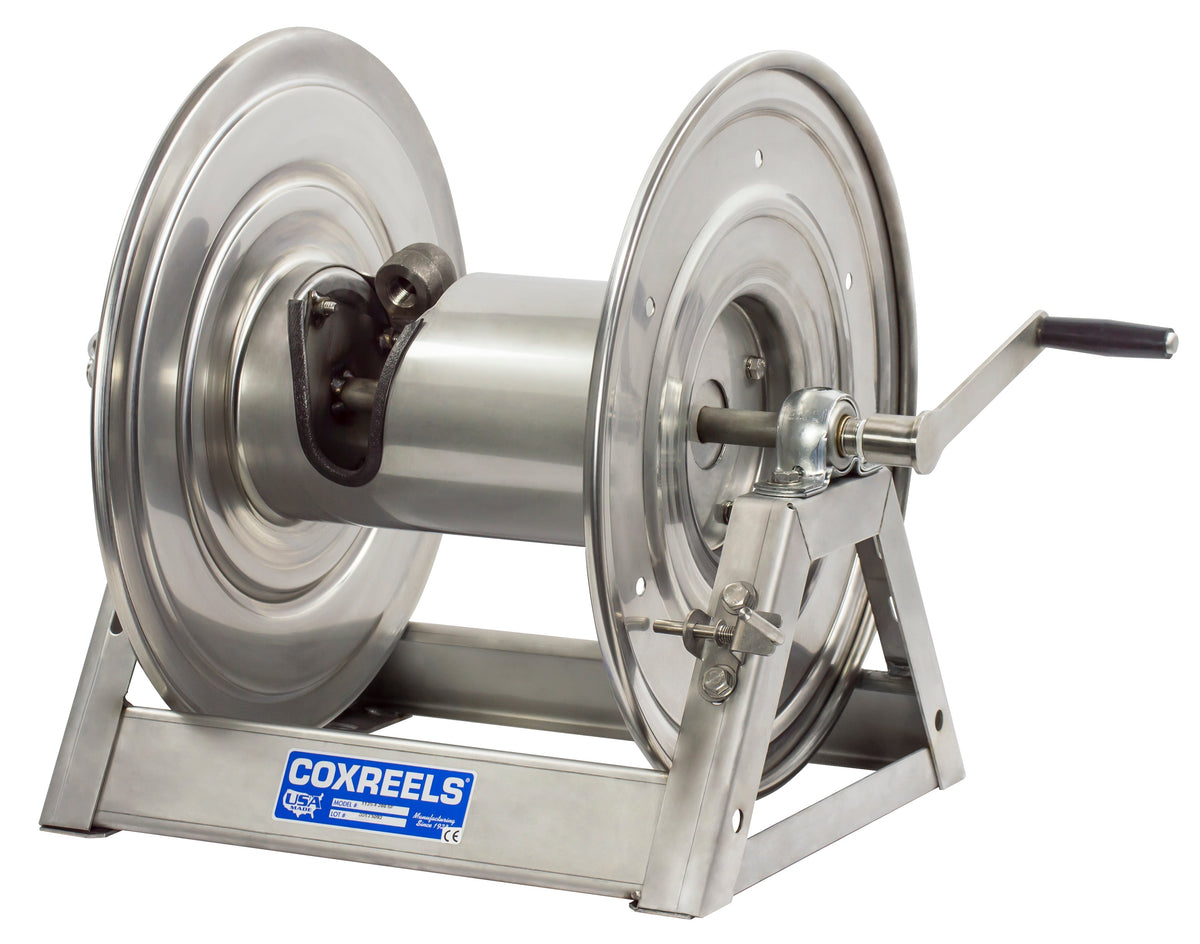

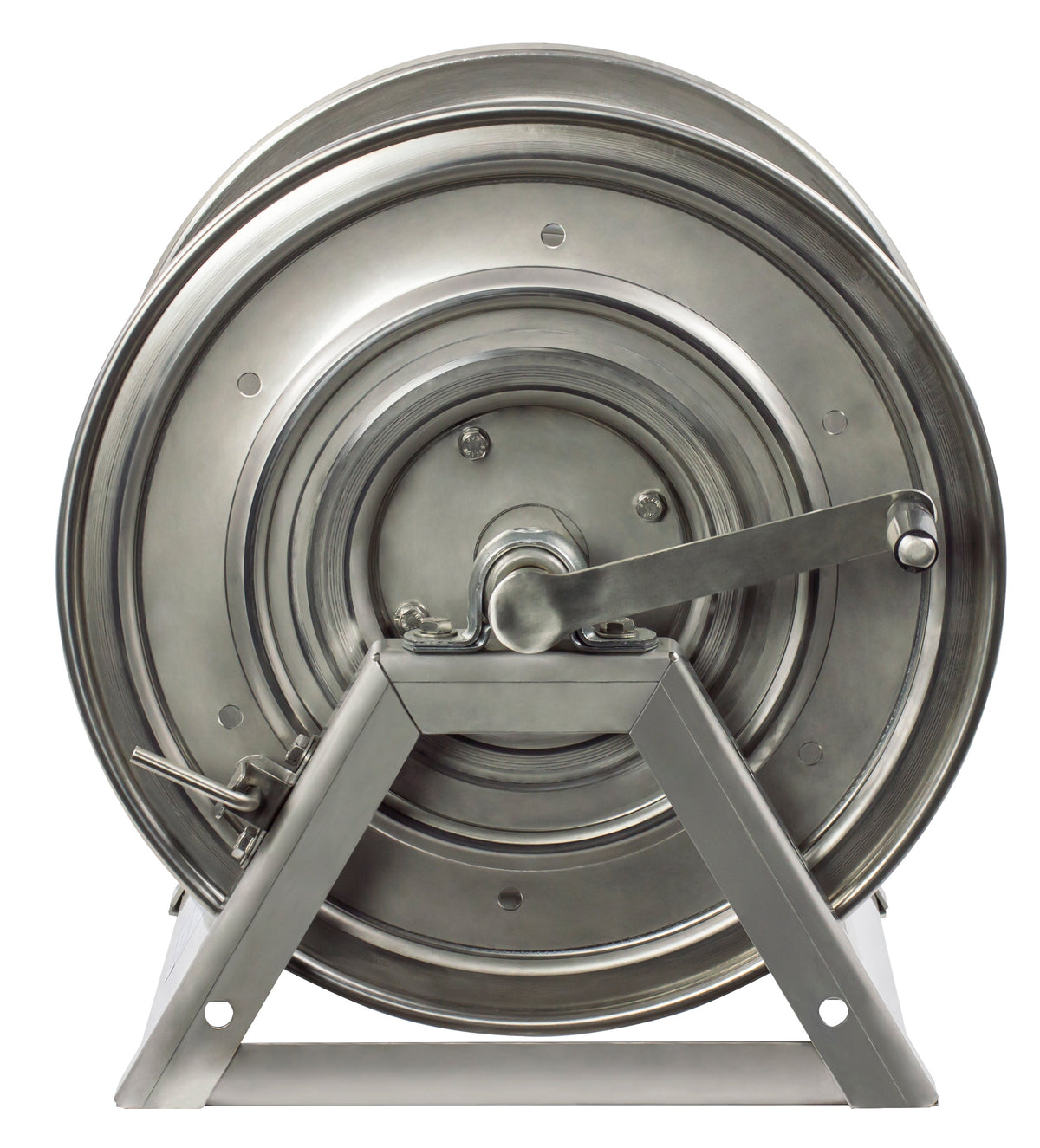

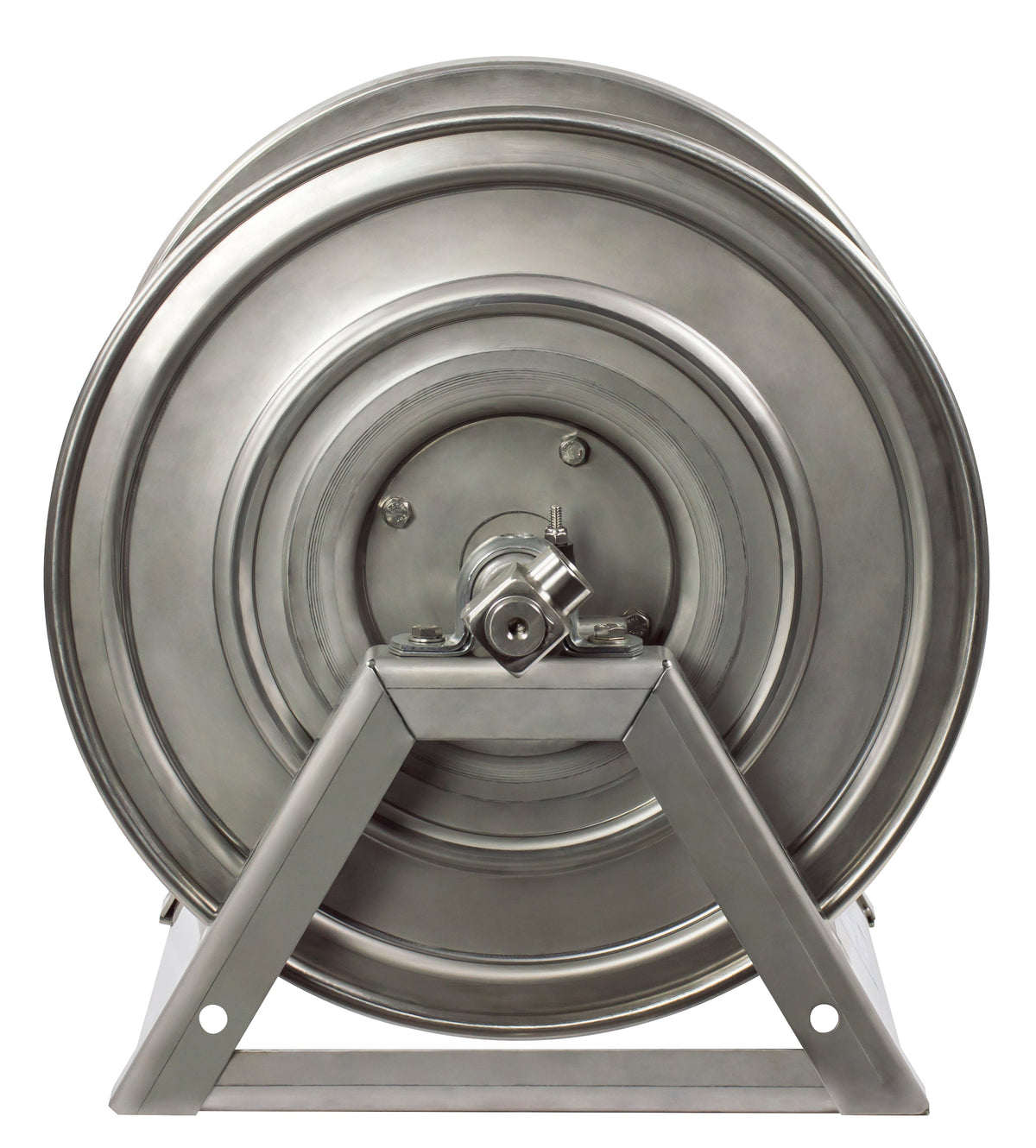

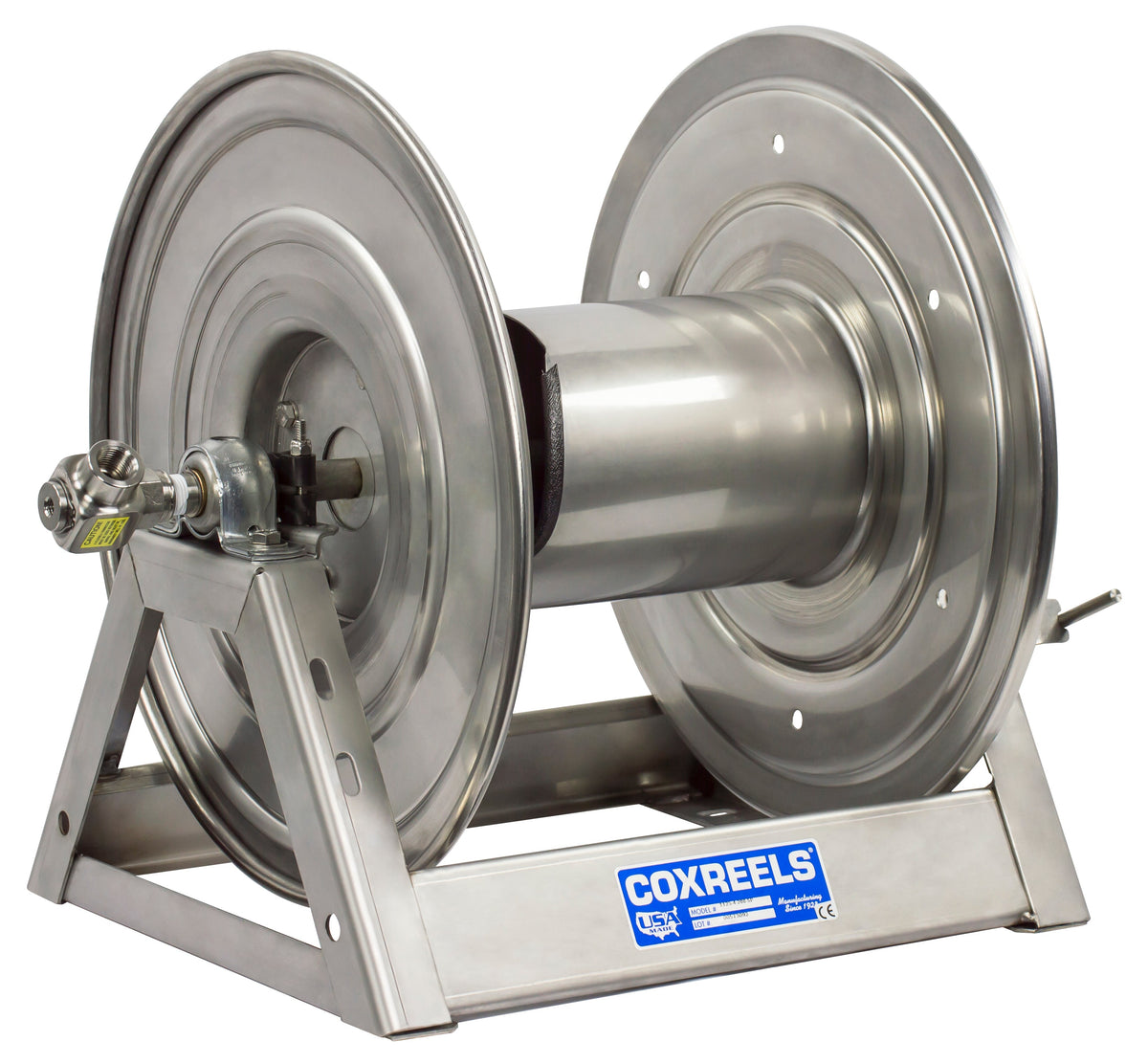

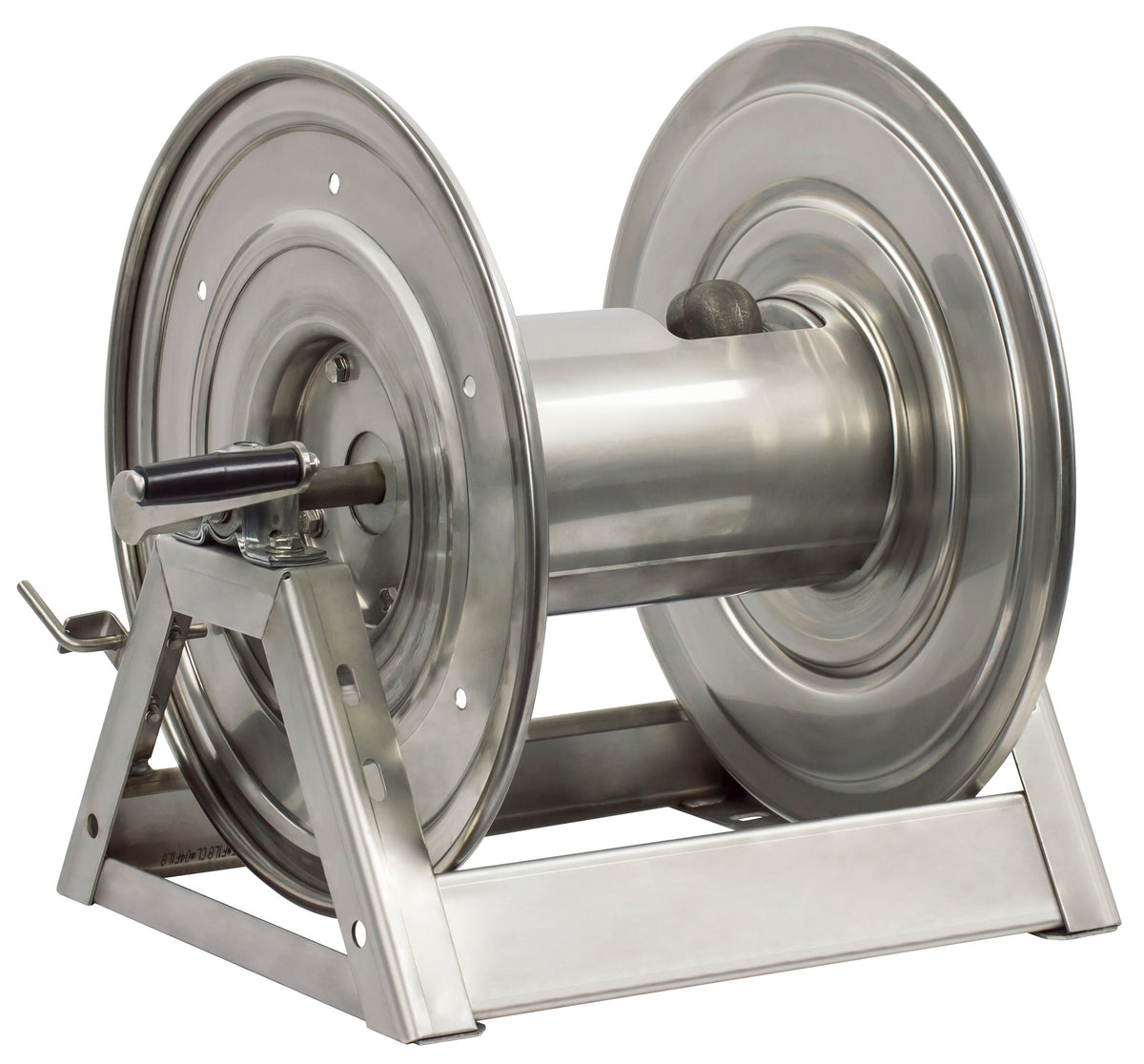

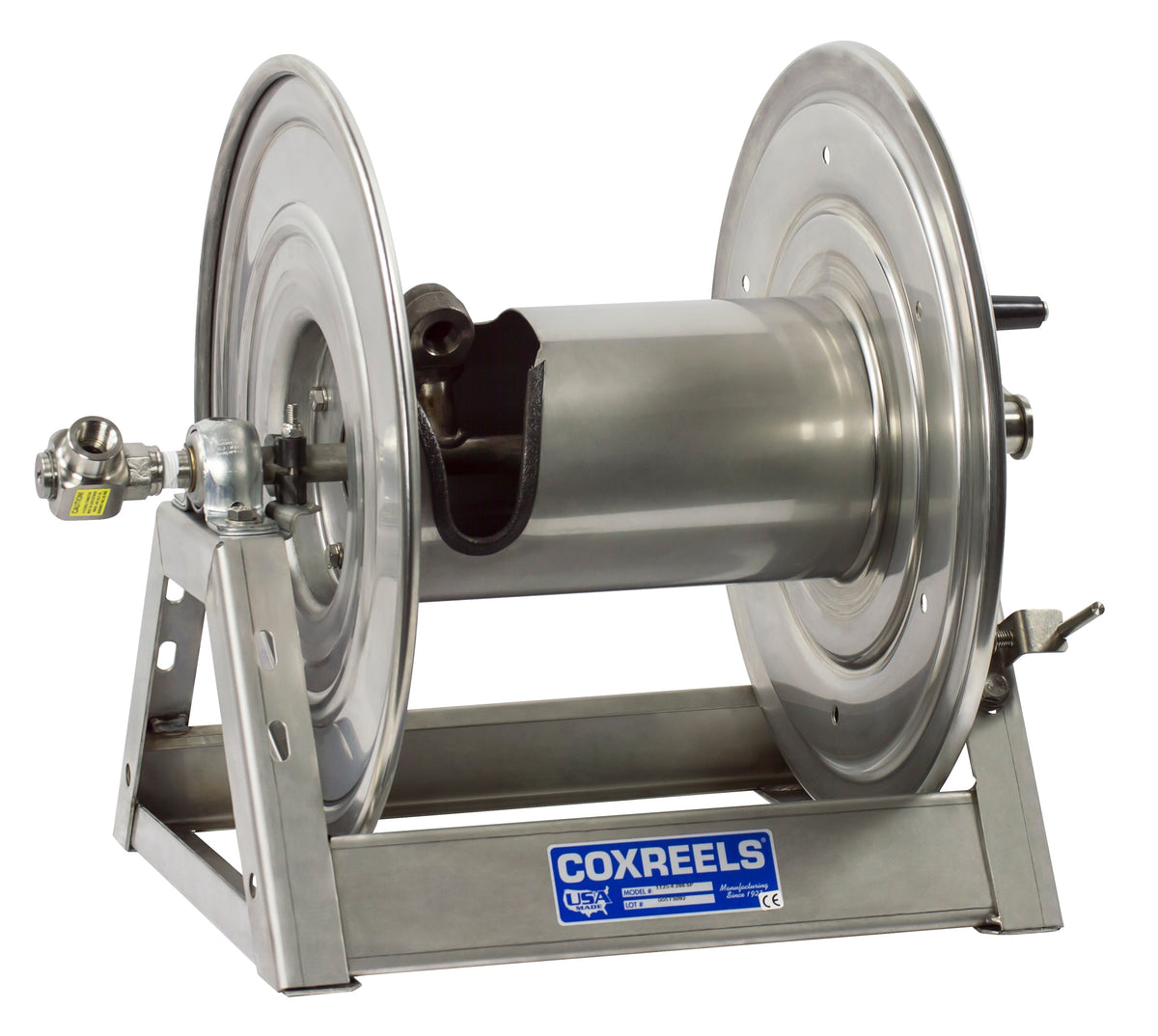

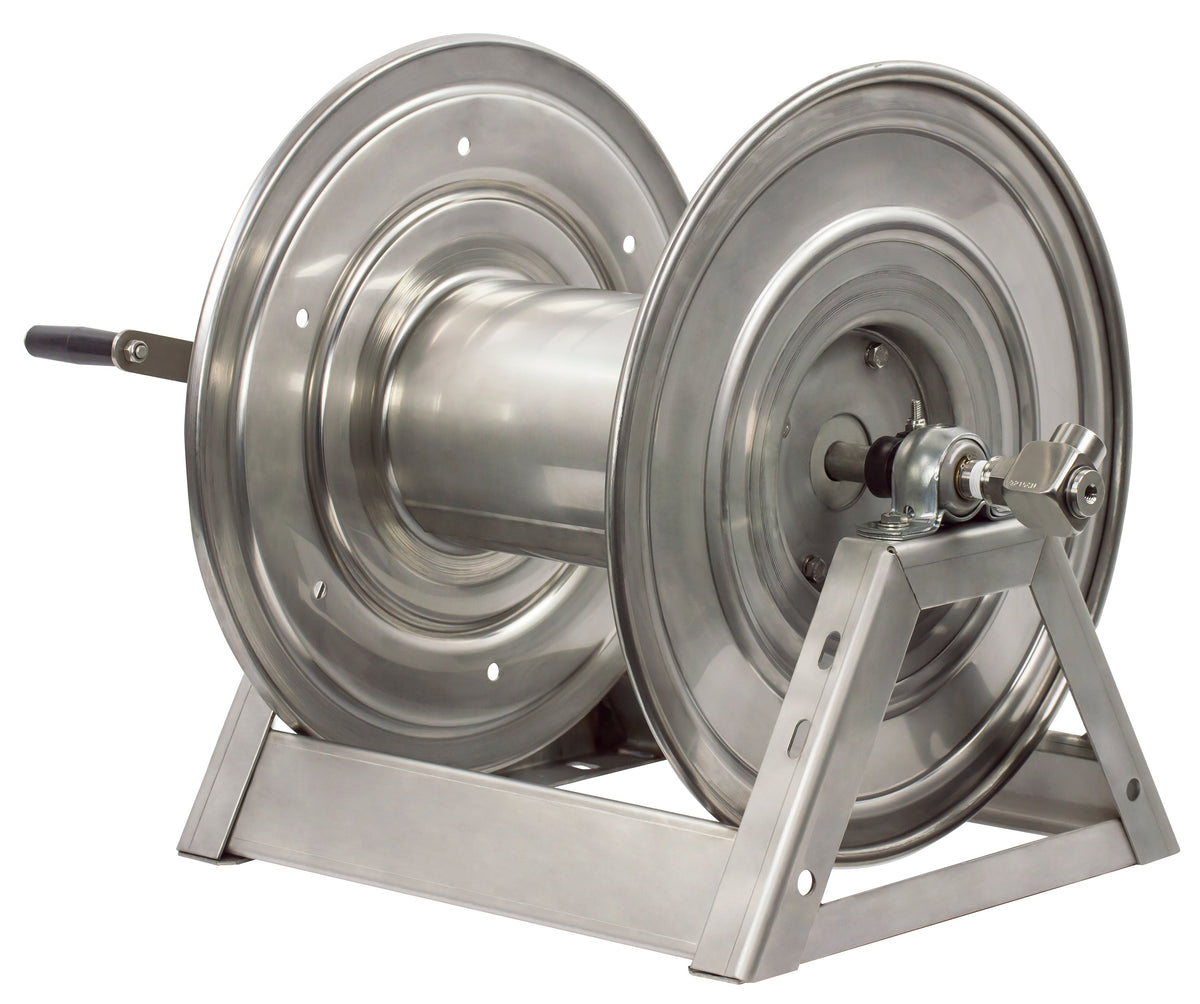

1125-5-100-SP by Coxreels | 1125-SS Series | 3,000 PSI Hand Crank Hose Reel | 3/4" Hose ID, 3/4" FNPT Inlet | Stainless Steel | 100ft Capacity, Hose Not Included
Coxreels 1125-SS Series Hand Crank Hose Reels
Stainless steel A-frame hand crank hose reels for air, water, oil and lubrication, washdown and pressure washing, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Oil & Lubrication
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Hydro Seeding
- Chemical Fluid Transfer
- Potable Water
- Clean Fluids
- Breathing Air
- Fire Booster Hose
2
What are the key specifications?
Stainless Steel, A-frame
Stainless Steel 90° full-flow with Nitrile Non-Toxic Food Grade Grease seals
Female NPT, same size as the hose I.D.
250°F
Permanently Lubricated Self Aligning Pillow Block Bearings
Floor, Wall, Vehicle Mounting
0.5" slotted mounting holes
3
What are the main product features?
- Swivel — Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
- CNC Spun Discs — Heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive stainless steel low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" stainless steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Pillow Block Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1125-4-100-SP | 1/2" | 100 ft | 3,000 | 6" | 19.5 × 18.75 × 17.625 |
| 1125-4-100-SS | 1/2" | 100 ft | 3,000 | 6" | 19.5 × 18.75 × 17.625 |
| 1125-4-200-SP | 1/2" | 200 ft | 3,000 | 12" | 25.5 × 18.75 × 17.625 |
| 1125-4-200-SS | 1/2" | 200 ft | 3,000 | 12" | 25.5 × 18.75 × 17.625 |
| 1125-5-100-SP | 3/4" | 100 ft | 3,000 | 12" | 26.75 × 18.75 × 17.625 |
| 1125-5-100-SS | 3/4" | 100 ft | 3,000 | 12" | 26.75 × 18.75 × 17.625 |
| 1125-5-200-SP | 3/4" | 200 ft | 3,000 | 24" | 38.75 × 18.75 × 17.625 |
| 1125-5-200-SS | 3/4" | 200 ft | 3,000 | 24" | 38.75 × 18.75 × 17.625 |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 6" | 12" | 24" |
|---|---|---|---|
| 4-way roller bracket, bottom rewind | 15354-6-SP, 15354-6-SS | 15354-12-SP, 15354-12-SS | 15354-24-SP, 15354-24-SS |
| 4-way roller bracket, top rewind | 15353-6-SP, 15353-6-SS | 15353-12-SP, 15353-12-SS | 15353-24-SP, 15353-24-SS |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Swivel and plumbing | |
| -BZXX | Less swivel |
| 4-way roller position | |
| -SXCX / -SXCF | Top payout, on reel: hand crank right / hand crank left |
| -SXIX | Top payout, ceiling mount applications, on reel |
| -SXFF / -SXFX | Bottom payout, on reel: hand crank right / hand crank left |
| 3-way roller position | |
| -SXEX / -SXEF | Top payout, on reel: hand crank right / hand crank left |
| -SXHF / -SXHX | Bottom payout, on reel: hand crank right / hand crank left |
| Swivel and motor/crank position | |
| -SXXX | Top payout hand crank, swivel left, crank right |
| -SXAF | Top payout hand crank, swivel right, crank left |
| -SXAF | Bottom payout hand crank, swivel left, crank right |
| -SXXX | Bottom payout hand crank, swivel right, crank left |
7
Where can I find product documents?
1125-SS Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
