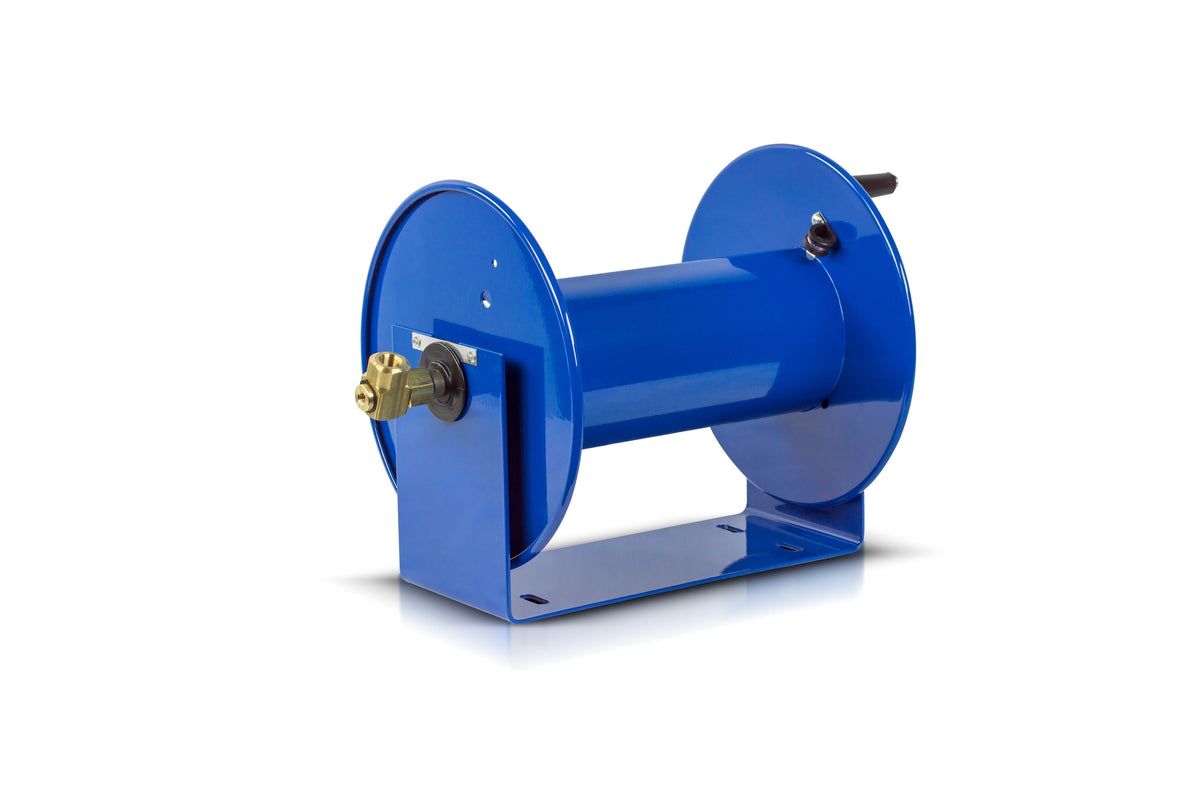

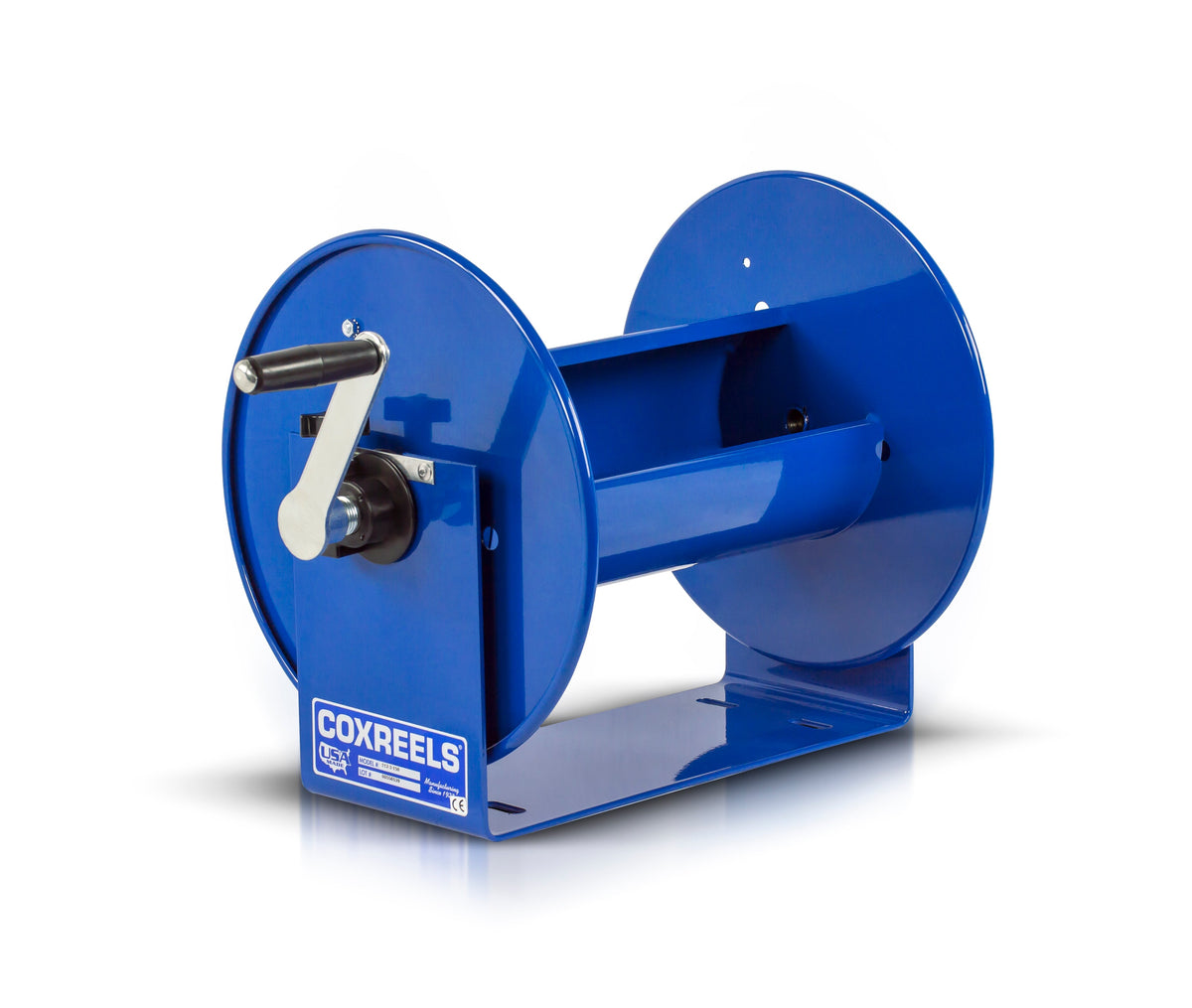

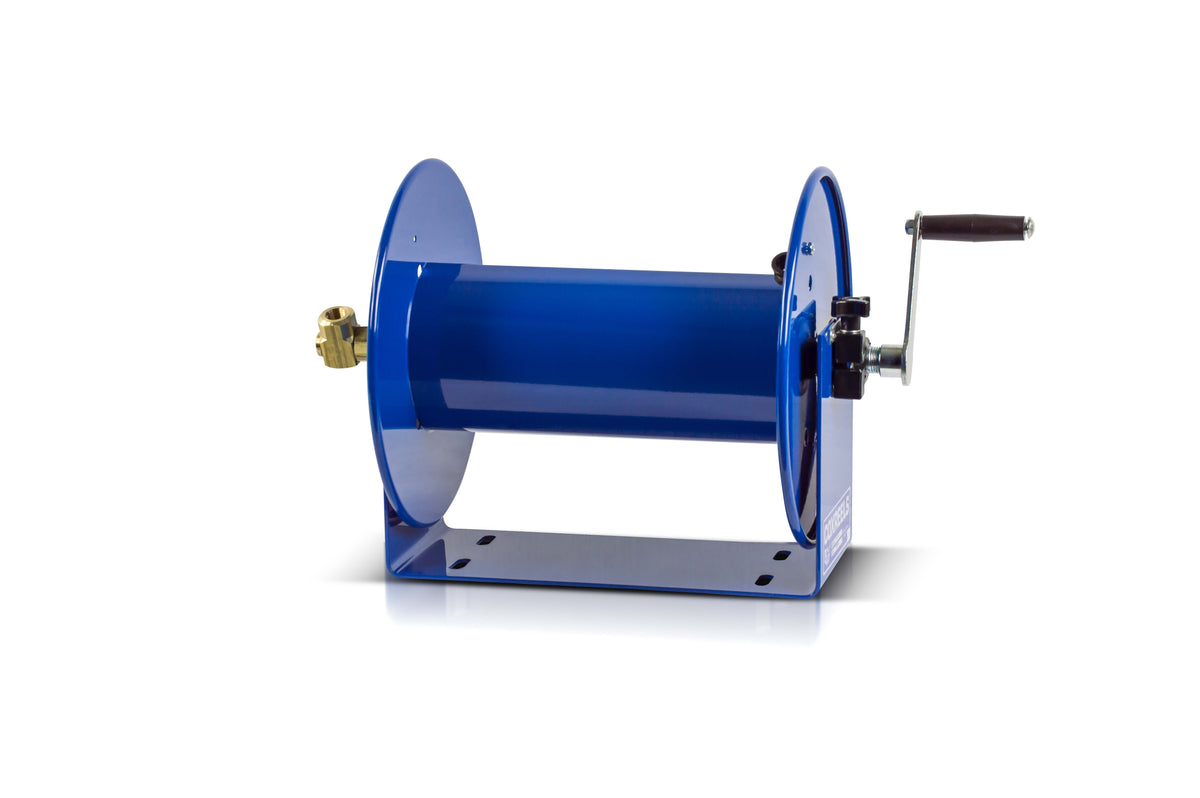

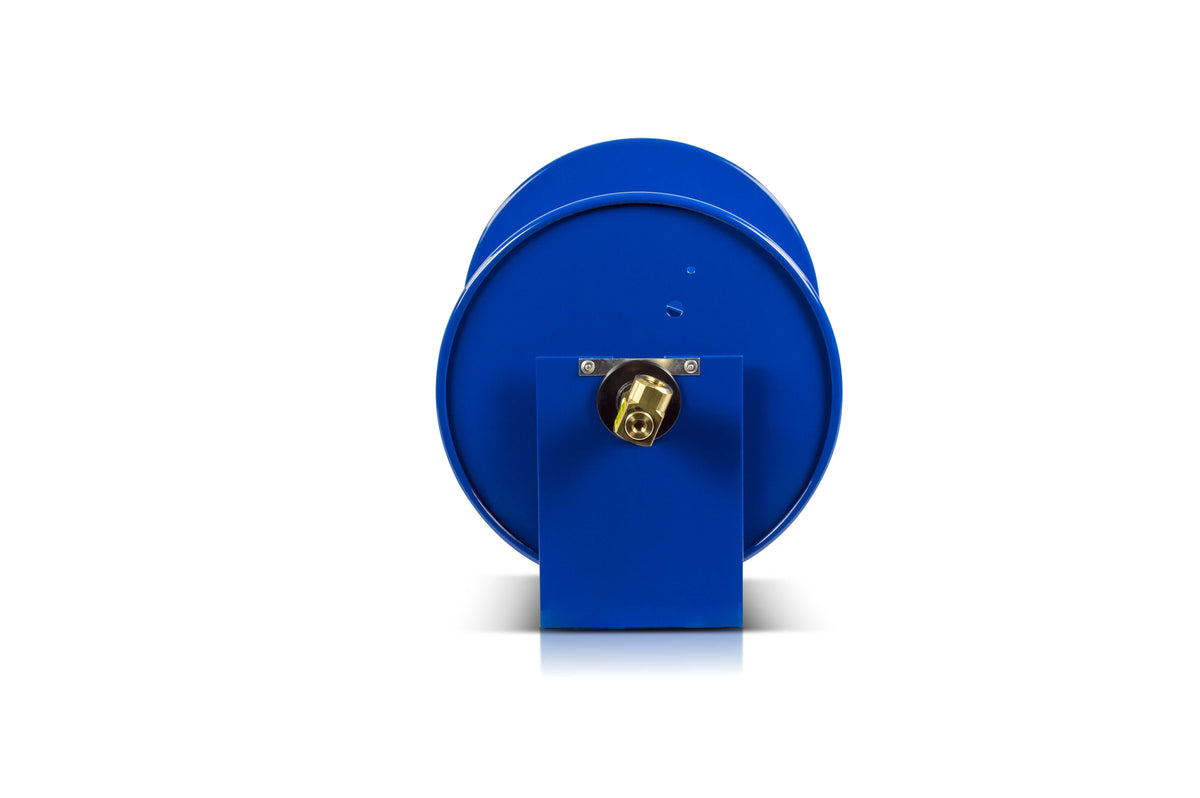

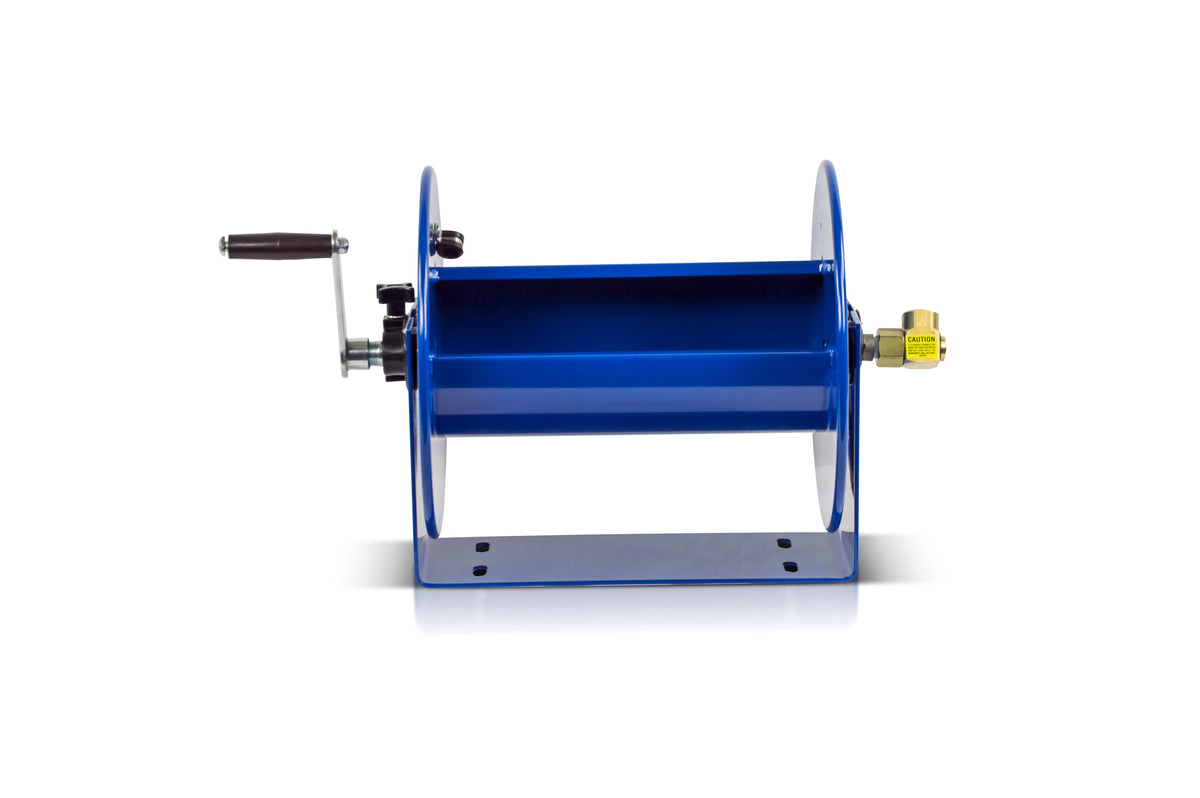

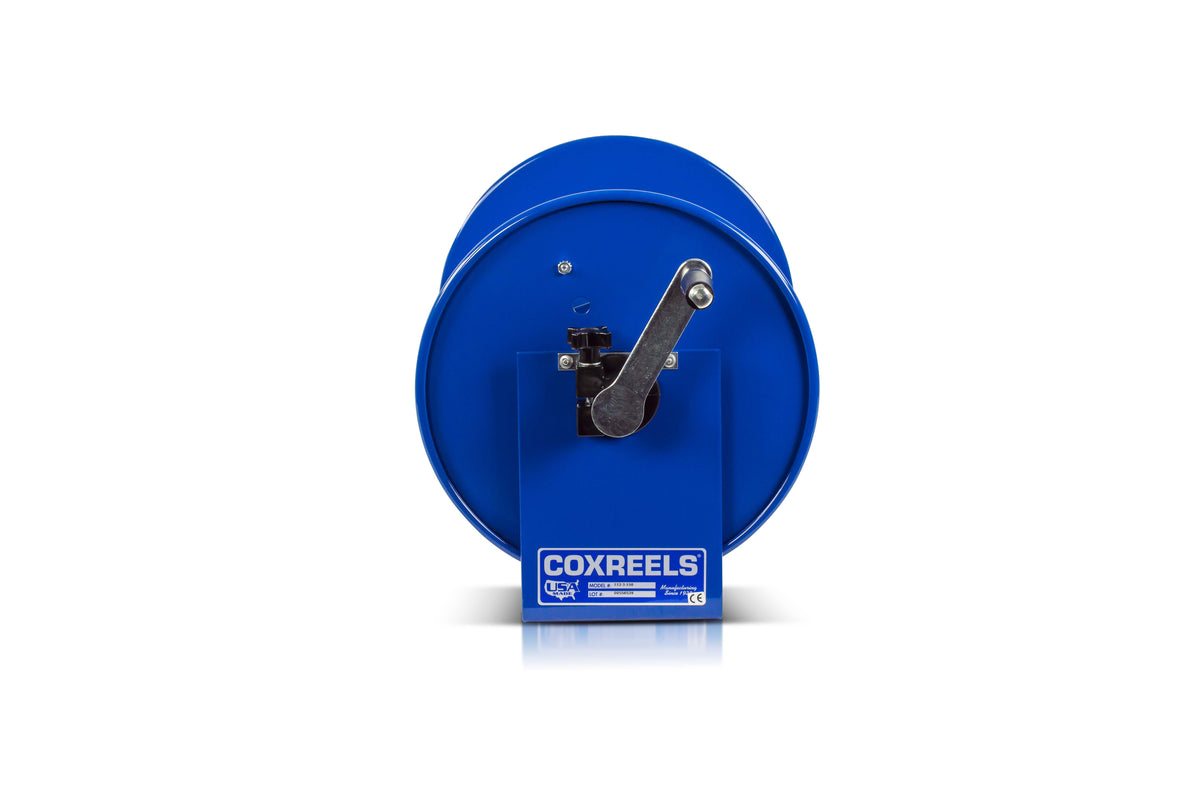

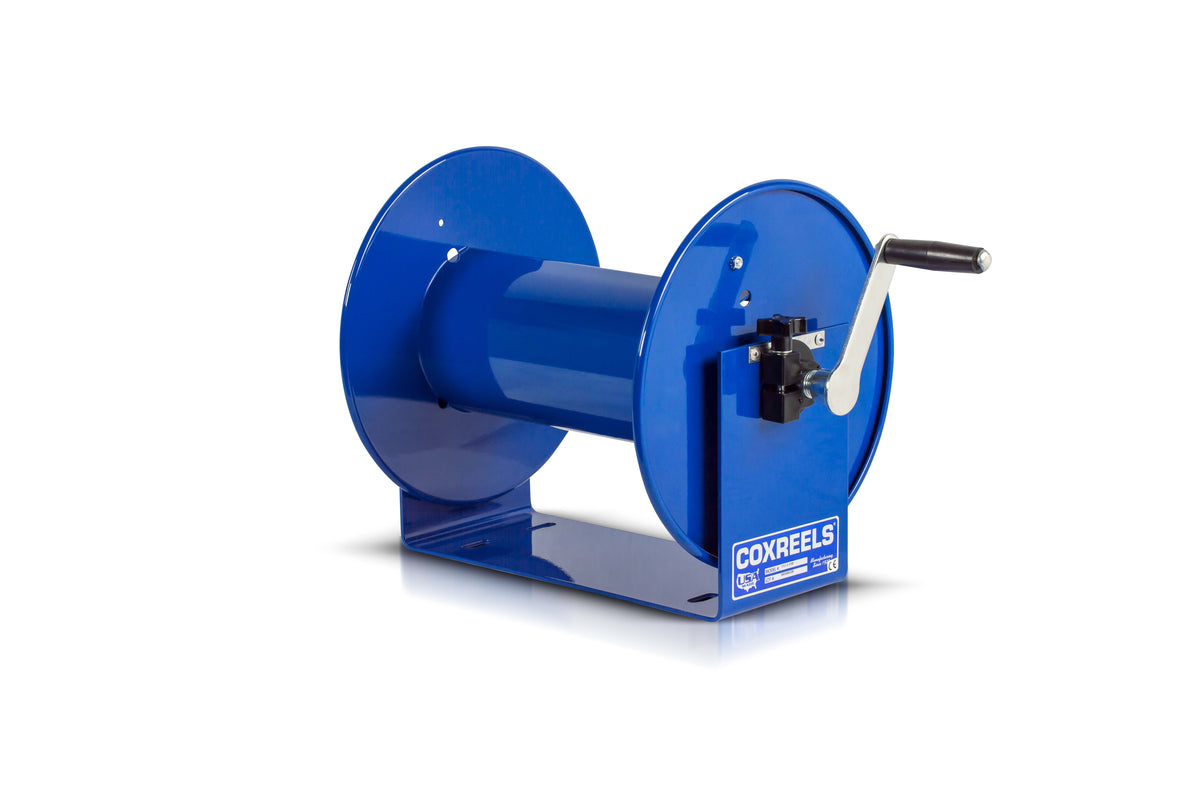

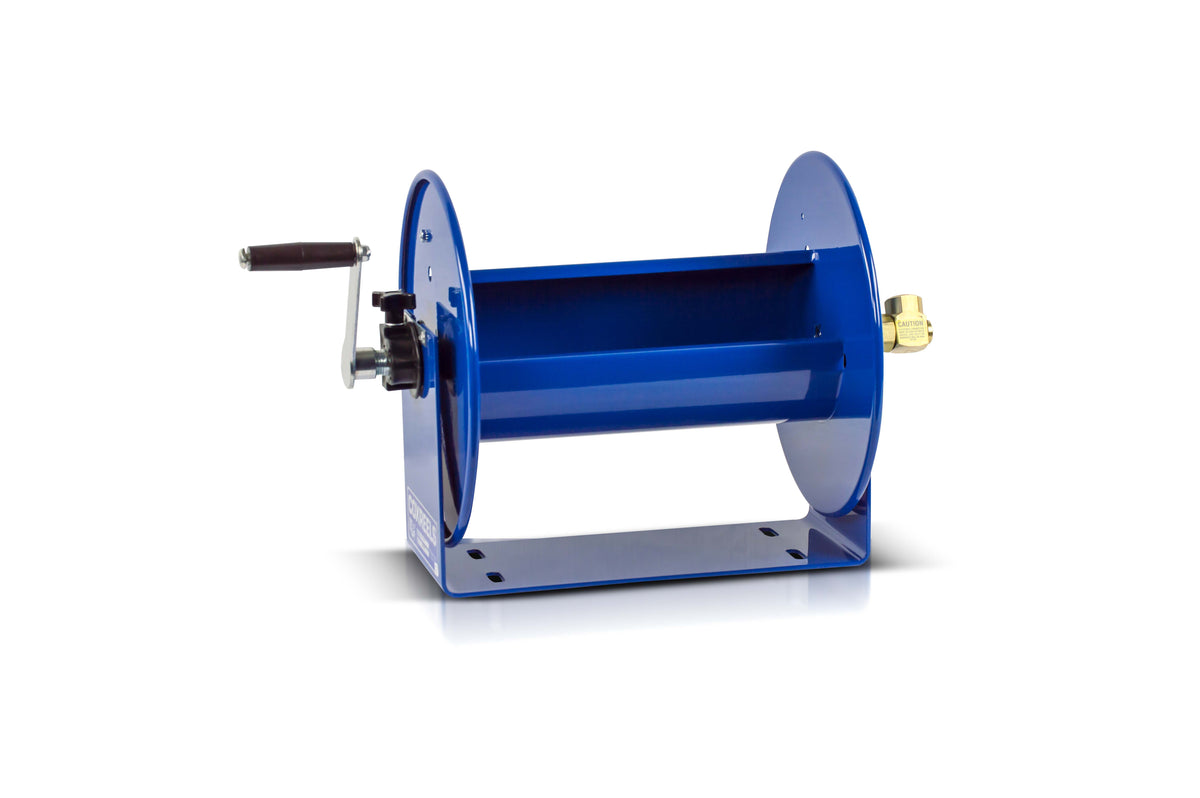

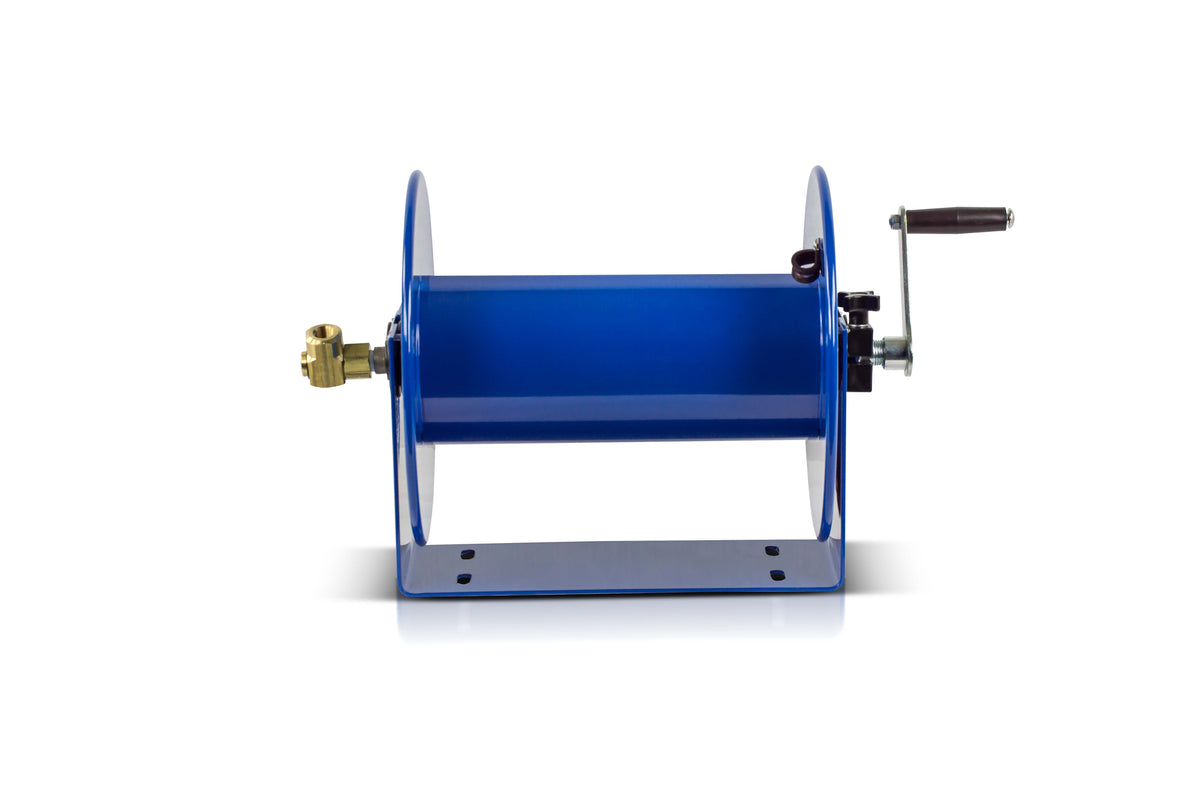

112-3-150 by Coxreels | 100 Series | 4,000 PSI Hand Crank Hose Reel | 3/8" Hose ID, 3/8" FNPT Inlet | Steel | 150ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels 100 Series Hand Crank Hose Reels
Steel U-frame hand crank hose reels for air, water, washdown, pressure washing and pest control, rated to 4,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Chemical Fluid Transfer
2
What are the key specifications?
Construction
Steel, U-frame
Swivel
Brass 90° full-flow with Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
225°F / 250°F depending on hose
Bearings
Lubricated EPDM Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.44 SLOT
3
What are the main product features?
- Swivel — Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- U Shaped Frame Design — Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Steel Construction — High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 112-3-50 | 3/8" | 50 ft | 4,000 | 4.5" | 14.5 × 13 × 12 |
| 112-3-100 | 3/8" | 100 ft | 4,000 | 8" | 18.25 × 13 × 12 |
| 112-3-150 | 3/8" | 150 ft | 4,000 | 12.5" | 22.75 × 13 × 12 |
| 112-4-75 | 1/2" | 75 ft | 4,000 | 12.5" | 22.75 × 13 × 12 |
| 117-3-250 | 3/8" | 250 ft | 4,000 | 8" | 18.25 × 18 × 17 |
| 117-3-400 | 3/8" | 400 ft | 4,000 | 12.5" | 22.75 × 18 × 17 |
| 117-3-550 | 3/8" | 550 ft | 4,000 | 18" | 28.25 × 18 × 17 |
| 117-4-225 | 1/2" | 225 ft | 4,000 | 12.5" | 22.75 × 18 × 17 |
| 117-4-350 | 1/2" | 350 ft | 4,000 | 18" | 28.25 × 18 × 17 |
| 117-5-100 | 3/4" | 100 ft | 4,000 | 12.5" | 23.25 × 18 × 17 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 9073-8 | 4-way roller bracket, top rewind | Capacity 250 ft |
| 9073-12.5 | 4-way roller bracket, top rewind | 117-3-400; 117-4-225; 117-5-100 |
| 9073-18 | 4-way roller bracket, top rewind | Drum width 18" |
| 9075-8 | 4-way roller bracket, top rewind | 112-3-100 |
| 9075-12.5 | 4-way roller bracket, top rewind | Capacity 75 ft, 150 ft |
| Inlet connections — fit hose I.D. 1/2" | ||
| 15717 | Garden Hose Kit | |
| Upgrades and service parts | ||
| HSRK-050 | Hose Strain Relief Kit | Hose I.D. 1/2" |
| 9077 | Spring Loaded Lock Pin | Every model |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Prefix — added before the model number | |
| BR | Brawny Reel Upgrade |
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BUXX | Standard plumbing & 90° ball bearing swivel with Aflas |
| -BZXX | Less swivel |
| -BWXX | Standard plumbing & 90° ball bearing swivel with Viton |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BYXX | Less swivel, no riser, storage |
| -BKXX | Standard plumbing & 90˚ stainless steel swivel, Viton |
| 4-way roller position | |
| -BXCX / -BXFX | Top payout, on reel: hand crank right / hand crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout hand crank, swivel left, crank right |
| -BXXX | Top payout hand crank, swivel right, crank left |
| Other | |
| -BXXP | Spring Loaded Lock Pin-Installed on the reel |
7
Where can I find product documents?
100 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
