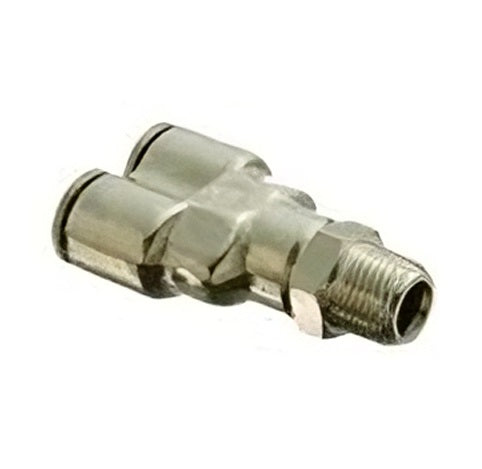

1108X2 by Danfoss | Push to Connect Adapter | Swivel Male Y | 1/8" Male Pipe x 1/8" Tube OD x 1/8" Tube OD | Nickel Plated Brass

1108X2 by Danfoss | Push to Connect Adapter | Swivel Male Y | 1/8" Male Pipe x 1/8" Tube OD x 1/8" Tube OD | Nickel Plated Brass

Sale price$16.34
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Male Pipe Thread F M L
1108X2A 1/8" 10-32* 0.83" 0.39" 1.04"
1108X2 1/8" 1/8" 0.83" 0.39" 1.54"
1108X2.5 5/32" 1/8" 0.83" 0.39" 1.54"
1108X4 1/4" 1/8" 0.96" 0.49" 1.67"

*UNF Thread. Seals with nylon washer (included).

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Male NPT
  • 1/8in Tube Compression
  • 1/8in Tube Compression
  • Some Ends Match
Material(s):
  • Nickel Plated Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
