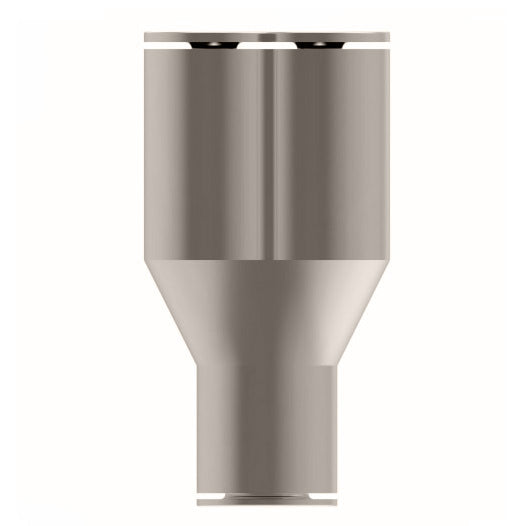

1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass
1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass
1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass

1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass

Sale price$18.50

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union Y
Buy More, Save More!
Quantity Price Each
10–39 $17.39
40–79 $15.73
80+ $13.88
Discounts applied in cart/checkout.

Product Data:

Shape:

Y

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • Some Ends Match
Material(s):
  • Nickel Plated Brass
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 F C L M
1107X4M 4mm 18.0mm 5.0mm 33.0mm 9.0mm
1107X6M 6mm 24.5mm 7.0mm 39.0mm 12.5mm
1107X8M 8mm 28.5mm 9.0mm 44.0mm 14.5mm
1107X10M 10mm 32.0mm 15.5mm 53.5mm 16.0mm
