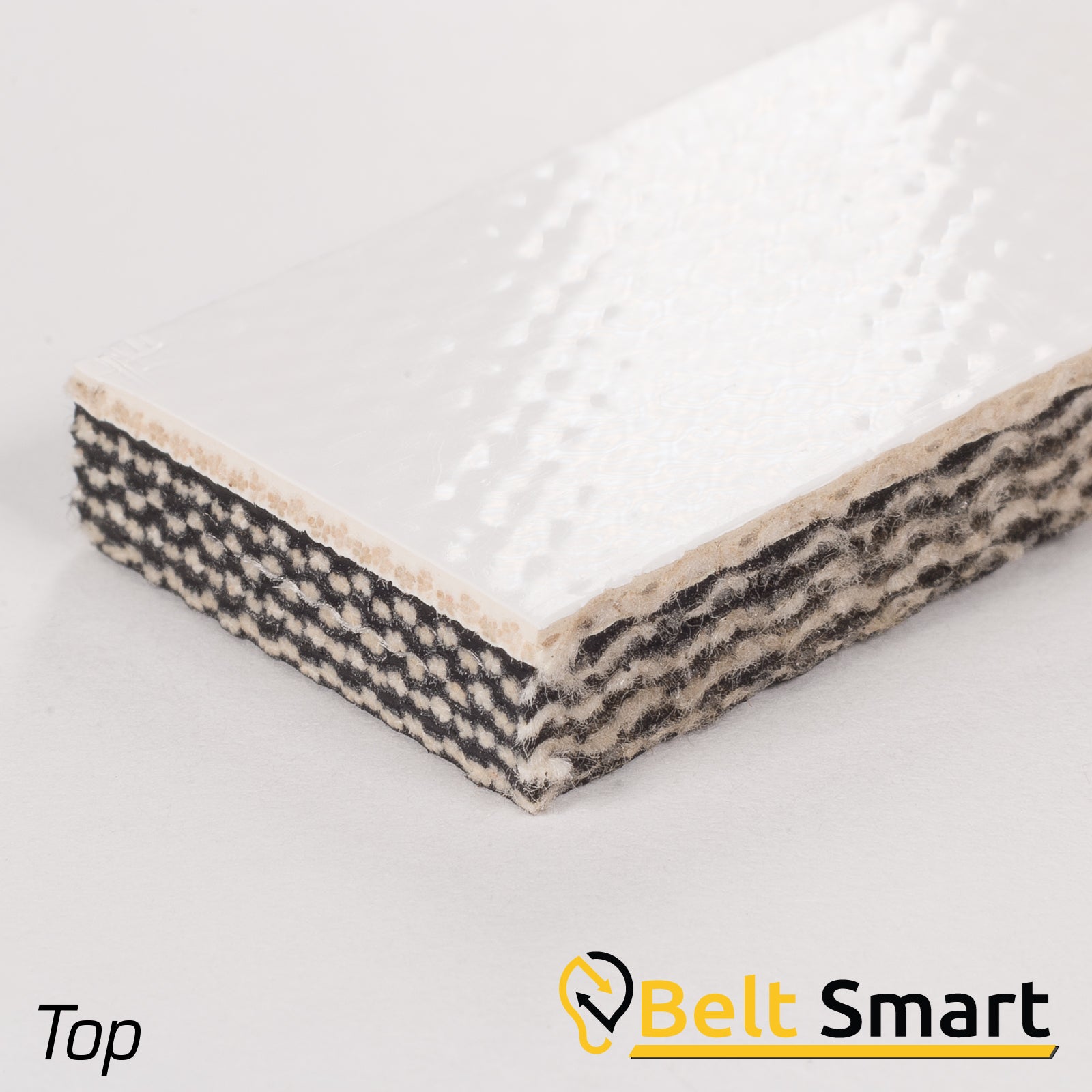

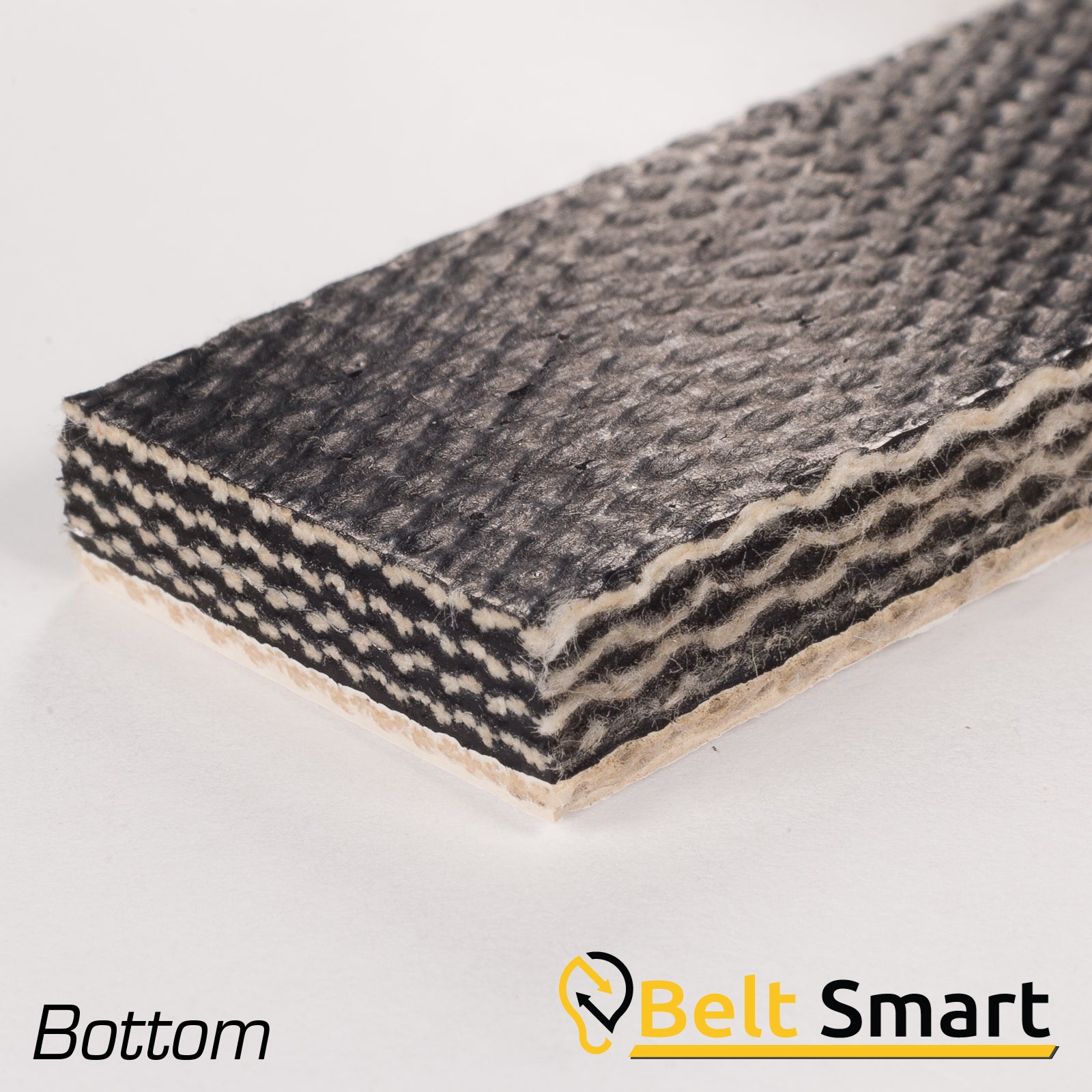

BS010A - #10a Beltservice 5 Ply CP30 White Teflon COS Conveyor Belt
BS010A - #10a Beltservice 5 Ply CP30 White Teflon COS Conveyor Belt
Beltservice

BS010A - #10a Beltservice 5 Ply CP30 White Teflon COS Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Food handling
  • Wet, sticky materials and operations involving gluing, coating, spreading
Features:
  • Best release characteristics.
  • The slippery top surface is created by the thin teflon film.
  • Carcass is strong and flexible.
Specifications:
  • FDA accepted
3 Ply Poly 105
White Teflon
COS
Pt No.: 10		 5 Ply CP30
White Teflon
COS
Pt No.: 10a
Thickness 1/16" 1/4"
Covers .002" Teflon x FS
Carcass 30 lbs. per Ply Polyester 32 oz. C-N
Working Tension
per inch Width		 90 lbs. 150 lbs.
Approx. Weight
lbs per inch Width		 .042 lbs. .120 lbs.
Min. Pulley Diameter 2-1/2" 6"
Temperature Range 0 deg. F / 250 deg. F
Clipper Lace #1D #4
Alligator Lace #1 #25
