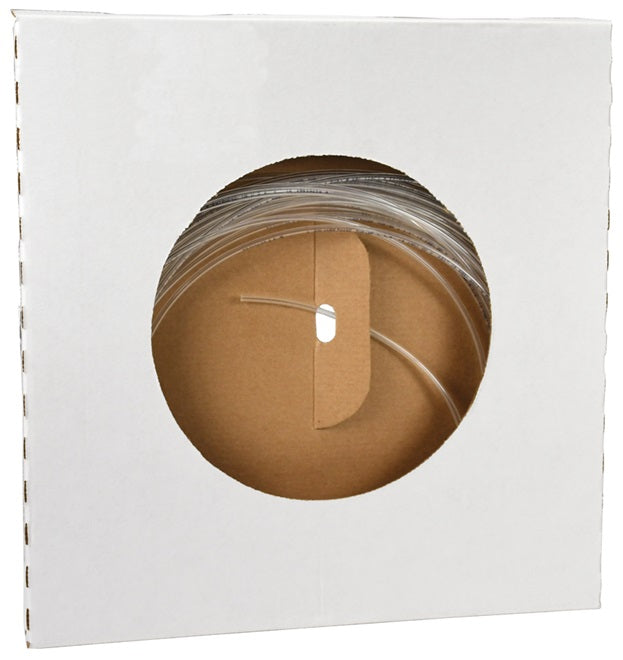

1091U62R00 by Dixon Valve | Polyurethane - 95 Durometer Tubing | 1/2" OD | 0.320" ID | 0.090" Wall Thickness | Clear | 50ft Length
Dixon Valve
Polyurethane - 95 Durometer Tubing
Good for applications where space is tight.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $203.09 |
| 20–59 | $183.64 |
| 60+ | $162.04 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
140
Tubing Construction:
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
| Clear Polyurethane Part Number |
Black Polyurethane Part Number |
Blue Polyurethane Part Number |
Size | Wall Thickness | Working Pressure PSI @ 75°F (24°C) |
Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| O.D. | I.D. | ||||||||||
| 1091U53R00 | 1091U5301 | 1091U5304 | 1/8" | 0.062" | 0.031" | 233 PSI | 50ft | ||||
| 1091U04R00 | 1091U0401 | 1091U0404 | 5/32" | 0.93" | 0.031" | 176 PSI | 50ft | ||||
| 1091U56R00 | 1091U5601 | 1091U5604 | 1/4" | 0.160" | 0.045" | 148 PSI | 50ft | ||||
| 1091U08R00 | 1091U0801 | 1091U0804 | 5/16" | 0.216" | 0.049" | 148 PSI | 50ft | ||||
| 1091U60R00 | 1091U6001 | 1091U6004 | 3/8" | 0.250" | 0.066" | 147 PSI | 50ft | ||||
| 1091U62R00 | 1091U6201 | 1091U6204 | 1/2" | 0.320" | 0.090" | 140 PSI | 50ft | ||||
| 1094U53R00 | 1094U5301 | 1094U5304 | 1/8" | 0.062" | 0.031" | 233 PSI | 100ft | ||||
| 1094U04R00 | 1094U0401 | 1094U0404 | 5/32" | 0.93" | 0.031" | 176 PSI | 100ft | ||||
| 1094U56R00 | 1094U5601 | 1094U5604 | 1/4" | 0.160" | 0.045" | 148 PSI | 100ft | ||||
| 1094U08R00 | 1094U0801 | 1094U0804 | 5/16" | 0.216" | 0.049" | 148 PSI | 100ft | ||||
| 1094U60R00 | 1094U6001 | 1094U6004 | 3/8" | 0.250" | 0.066" | 147 PSI | 100ft | ||||
| 1094U62R00 | 1094U6201 | 1094U6204 | 1/2" | 0.320" | 0.090" | 140 PSI | 100ft | ||||
