BS109 - #109 Beltservice E8/2 U0/V5 White IP FDA Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.


Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Baking
  • Breads
  • Cookies
  • Crackers
  • Sheeters
  • Molders
  • Pastry
  • Dough
  • Vegetables
  • Fish
Features:

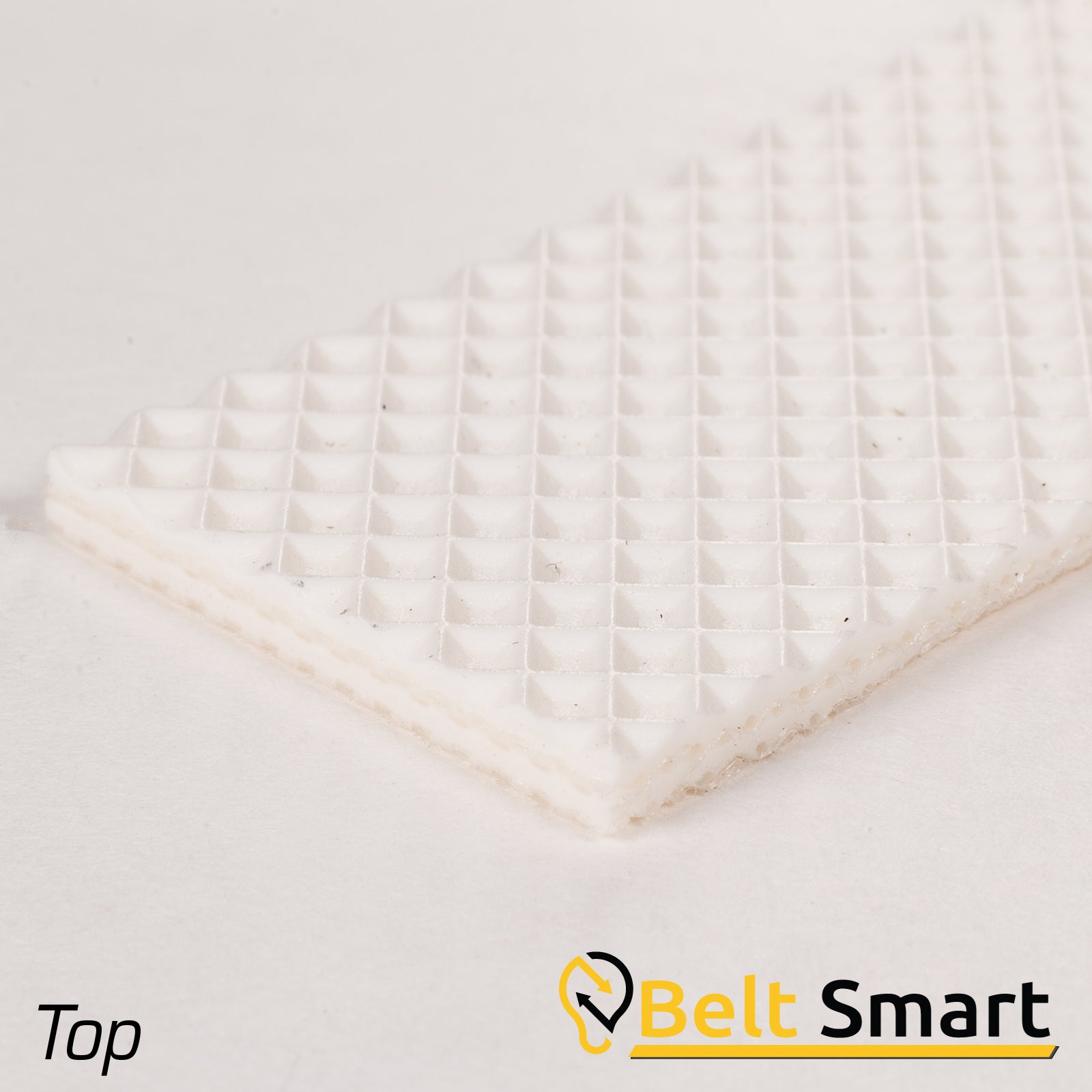

  • This belt's inverted pyramid (IP) top cover increases the grip on product, making it excellent for slight inclines or declines.
  • No. 109 is resistant to mild solvents, oils, greases, and salt. It is often used to convey vegetables and fish.
  • In the baking industry No. 109 is used for handling breads, cookies & crackers, and is ideal for sheeters and molders for pastry and dough.
Specifications:
  • FDA
E8/2 U0/V5 White
IP FDA
Pt No.: 108B
Thickness .083"
Covers C x B
Carcass Mono/Multi
Working Tension
per Inch Width
67 lbs.
Approx. Weight
Lbs. Per Inch Width
.040"
Min. Pulley Diameter 1-1/2"
Temperature Range 10 deg. F / 180 deg. F
Coefficient of Friction .15
Anti-Static No
Clipper Lace #36
Mono = Monofilament
Multi = Multifilament
