BS108BPU - #108BPU Beltservice E8/2 U0/U3 Blue FDA AS Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Direct Food Contact
  • General Purpose Light Duty Conveying
Features:
  • These are all purpose FDA compliant food belts designed for use in direct food contact and general purpose light duty conveying systems.
  • White No. 108B is non-antistatic and an excellent metal detector belt.

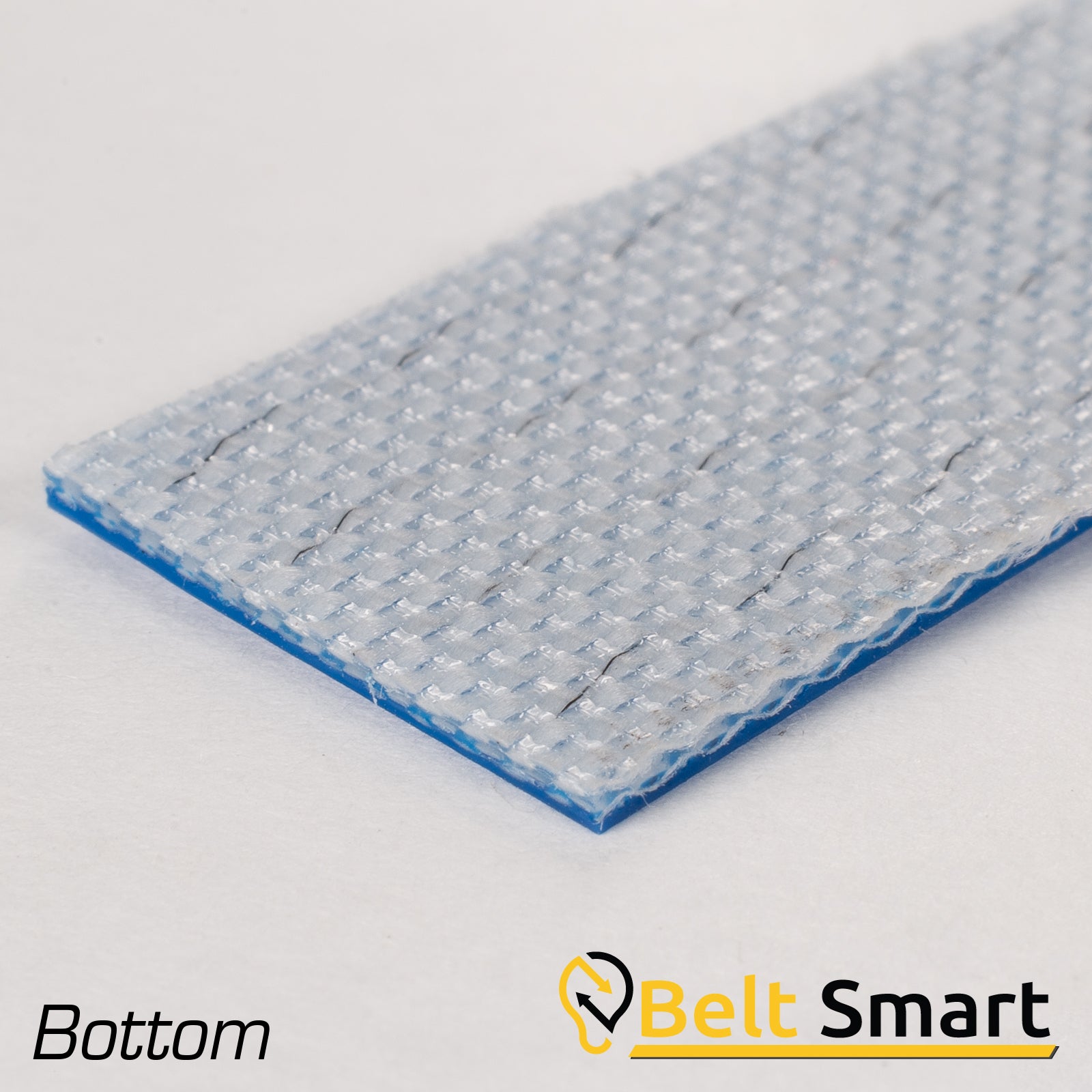

  • Their PU impregnated bottom fabric seals off the ingress of oils, fats, and particulate that cause delamination and shrinkage.
  • Blue No. 108BPU is antistatic.
Specifications:
  • FDA Compliant
E8/2 U0/U3 White
NA FDA
Pt No.: 108B		 E8/2 U0/U3 Blue
FDA AS
Pt No.: 108BPU
Thickness .050" N/A
Covers C x B N/A
Carcass Mono/Multi N/A
Working Tension
per Inch Width		 28 lbs. N/A
Approx. Weight
Lbs. Per Inch Width		 .023" N/A
Min. Pulley Diameter 1/2" N/A
Temperature Range -22 deg. F / 176 deg. F N/A
Coefficient of Friction .20 N/A
Anti-Static No Yes
Clipper Lace #36 N/A
AS = Anti-Static
Mono = Monofilament
Multi = Multifilament
