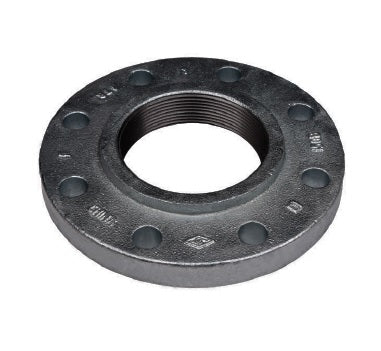

108088 by Midland | Reducing Threaded Companion Flange | 4" x 2" | Class 125 Pattern | Black Ductile Iron
Midland Industries
Reducing Threaded Companion Flange - Class 125 Pattern - Black Ductile Iron
Applications: Waterworks, Pumps, Irrigations
150 PSI
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $151.81 |
| 20–59 | $137.28 |
| 60+ | $121.13 |
Discounts applied in cart/checkout.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Size (Inch) |
A (Inch) |
B (Inch) |
C (Inch) |
D (Inch) |
Bolt Hole Size |
No. of Holes |
Weight (kg) |
| 108075 | 2-1/2X7 1/2 (Pipe Size 2-1/2 x 3) |
3" x 2" | 7.50" | 6.00" | 0.75" | 1.19" | φ0.75 | 4 | 4.3827 |
| 108076 | 1-1/2X9 (Pipe Size 1-1/2 x 4) |
3" x 2-1/2" | 7.50" | 6.00" | 0.75" | 1.19" | φ0.75 | 4 | 4.2013 |
| 108077 | 2 X9 (Pipe Size 2 x 4) |
4" x 1-1/2" | 9.00" | 7.50" | 0.94" | 1.31" | φ0.75 | 8 | 6.8352 |
| 108088 | 2-1/2X9 (Pipe Size 2-1/2 x 4) |
4" x 2" | 9.00" | 7.50" | 0.94" | 1.31" | φ0.75 | 8 | 6.4168 |
| 108089 | 3X9 (Pipe Size 3 x 4) |
4" x 2-1/2" | 9.00" | 7.50" | 0.94" | 1.31" | φ0.75 | 8 | 6.3343 |
| 108090 | 2X10 (Pipe Size 2 x 5) |
4" x 3" | 9.00" | 7.50" | 0.94" | 1.31" | φ0.75 | 8 | 6.081 |
| 108091 | 1-1/2X11 (Pipe Size 1-1/2 x 6) |
5" x 4" | 10.00" | 8.50" | 0.94" | 1.44" | φ0.875 | 8 | 6.8761 |
| 108094 | 2-1/2X11 (Pipe Size 2-1/2 x 6) |
6" x 2" | 11.00" | 9.50" | 1.00" | 1.56" | φ0.875 | 8 | 10.6349 |
| 108095 | 4X11 (Pipe Size 4 x 6) |
6" x 3" | 11.00" | 9.50" | 1.00" | 1.56" | φ0.875 | 8 | 10.1831 |
| 108092 | 5X11 (Pipe Size 5 x 6) |
6" x 4" | 11.00" | 9.50" | 1.00" | 1.56" | φ0.875 | 8 | 9.4563 |
| 108096 | 5X13-1/2 (Pipe Size 5 x 8) |
8" x 4" | 13.50" | 11.75" | 1.12" | 1.75" | φ0.875 | 8 | 17.1296 |
| 108097 | 2X16 R (Pipe Size 2 x 10) |
8" x 6" | 13.50" | 11.75" | 1.12" | 1.75" | φ0.875 | 8 | 15.2184 |
| 108098 | 6X16 150PSI R (Pipe Size 6 x 10) |
8" x 2" | 16.00" | 14.25" | 1.19" | 1.94" | φ1 | 12 | 26.54 |
