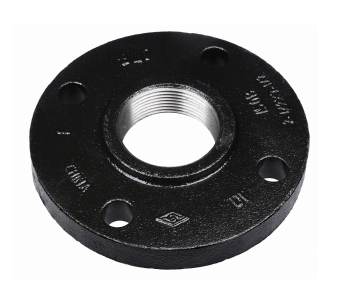

108064 by Midland | Threaded Companion Flange | 1-1/2" Size | Class 150 Threaded | Black Ductile Iron
Midland Industries
Threaded Companion Flange - Class 150 Threaded - Black Ductile Iron
Applications: Waterworks, Pumps, Irrigations
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $34.13 |
| 40–79 | $30.86 |
| 80+ | $27.23 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description (Threaded) |
Size (Inch) |
A (Inch) |
B (Inch) |
C (Inch) |
D (Inch) |
Bolt Hole Size |
No. of Holes |
Weight (kg) |
| 108062 | 1" - 150 | 1" | 4.25" | 3.12" | 0.44" | 0.75" | φ0.625 | 4 | 0.8347 |
| 108063 | 1-1/4" - 150 | 1-1/4" | 4.62" | 3.5" | 0.5" | 0.81" | φ0.625 | 4 | 1.0797 |
| 108064 | 1-1/2" - 150 | 1-1/2" | 5" | 3.88" | 0.56" | 0.88" | φ0.625 | 4 | 1.3217 |
| 108065 | 2" - 150 | 2" | 6" | 4.75" | 0.62" | 1" | φ0.75 | 4 | 2.1457 |
| 108066 | 2-1/2" - 150 | 2-1/2" | 7" | 5.5" | 0.69" | 1.12" | φ0.75 | 4 | 3.4182 |
| 108067 | 3" - 150 | 3" | 7.5" | 6" | 0.75" | 1.19" | φ0.75 | 4 | 3.9051 |
| 108069 | 4" - 150 | 4" | 9" | 7.5" | 0.94" | 1.31" | φ0.75 | 8 | 5.5254 |
| 108071 | 6" - 150 | 6" | 11" | 9.5" | 1" | 1.56" | φ0.875 | 8 | 7.5328 |
| 108072 | 8" - 150 | 8" | 13.5" | 11.75" | 1.12" | 1.75" | φ0.875 | 8 | 13.0201 |
| 108073 | 10" - 150 | 10" | 16" | 14.25" | 1.19" | 1.94" | φ1 | 12 | 22.854 |
| 108074 | 12" - 150 | 12" | 19" | 17" | 1.25" | 2.19" | φ1 | 12 | 26.5451 |
