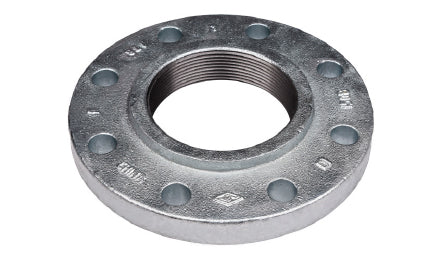

108039 by Midland | Reducing Threaded Companion Flange | 6" x 2-1/2" | Class 125 Pattern | Galvanized Ductile Iron
Midland Industries
Reducing Threaded Companion Flange - Class 125 Pattern - Galvanized Ductile Iron
Applications: Waterworks, Pumps, Irrigations
150 PSI
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $167.22 |
| 20–59 | $151.21 |
| 60+ | $133.42 |
Discounts applied in cart/checkout.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number(Black) | Description(D1 Flange) | Size(Inch) | A(Inch) | B(Inch) | C(Inch) | D(Inch) | Bolt Hole Size | No. of Holes | Weight(kg) |
| 108033 | 1-1/2X9 (Pipe Size 1-1/2 x 4) |
3" x 2-1/2" | 7.50" | 6.00" | 0.75" | 1.19" | φ0.75 | 4 | 4.2013 |
| 108035 | 3X9 (Pipe Size 3 x 4) |
4" x 2-1/2" | 9.00" | 7.50" | 0.94" | 1.31" | φ0.75 | 8 | 6.3343 |
| 108036 | 2X10 (Pipe Size 2 x 5) |
4" x 3" | 9.00" | 7.50" | 0.94" | 1.31" | φ0.75 | 8 | 6.081 |
| 108038 | 2-1/2X11 (Pipe Size 2-1/2 x 6) |
6" x 2" | 11.00" | 9.50" | 1.00" | 1.56" | φ0.875 | 8 | 10.6349 |
| 108039 | 3X11 (Pipe Size 3 x 6) |
6" x 2-1/2 | 11.00" | 9.50" | 1.00" | 1.56" | φ0.875 | 8 | 10.5386 |
| 108037 | 5X11 (Pipe Size 5 x 6) |
6" x 4" | 11.00" | 9.50" | 1.00" | 1.56" | φ0.875 | 8 | 9.4563 |
| 108040 | 5X13-1/2 (Pipe Size 5 x 8) |
8" x 4" | 13.50" | 11.75" | 1.12" | 1.75" | φ0.875 | 8 | 17.1296 |
