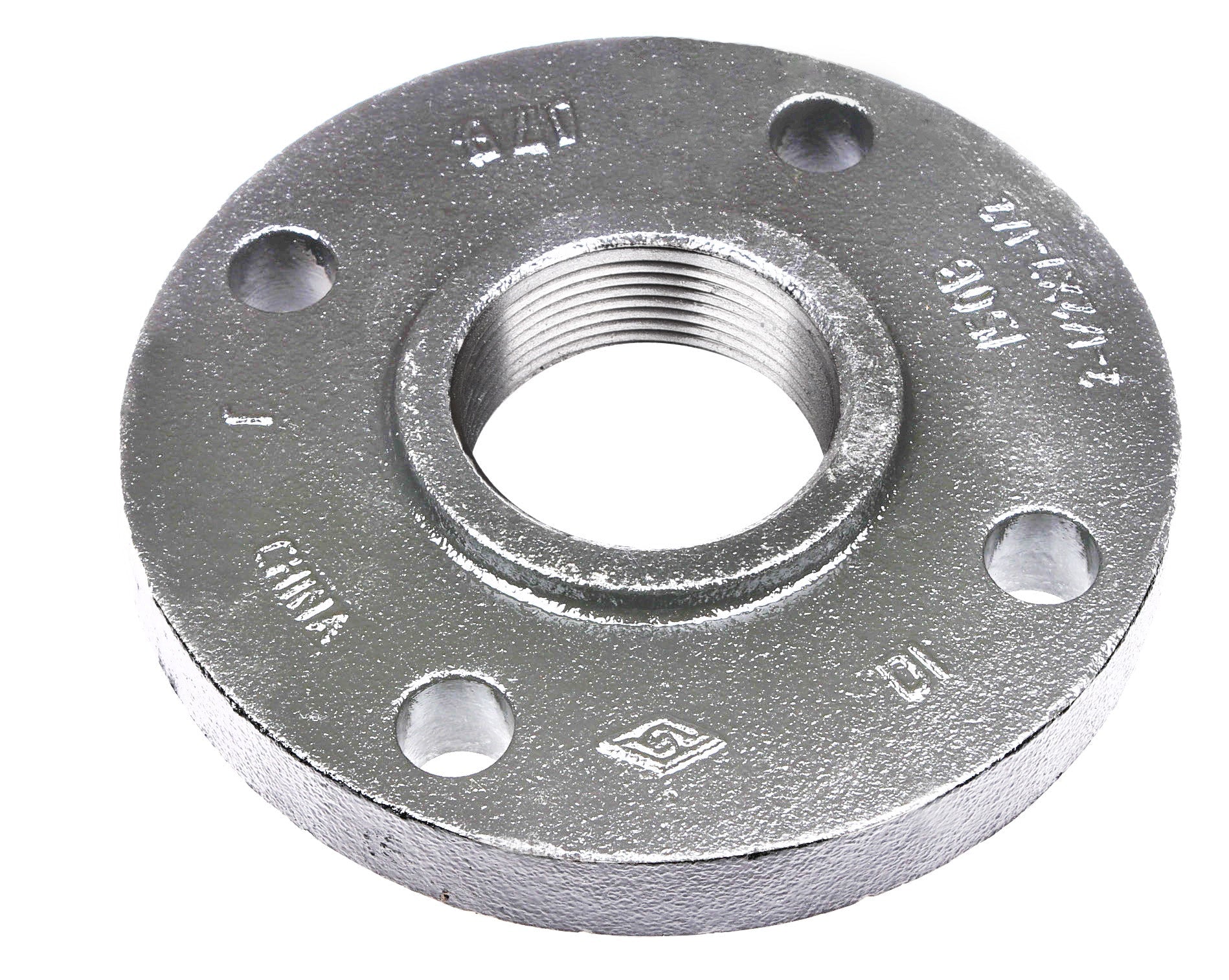

108027 by Midland | Threaded Companion Flange | 3" Size | Class 150 Threaded | Galvanized Ductile Iron
Midland Industries
Threaded Companion Flange - Class 150 Threaded - Galvanized Ductile Iron
Applications: Waterworks, Pumps, Irrigations
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $83.63 |
| 20–59 | $75.62 |
| 60+ | $66.73 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description (Threaded) |
Size (Inch) |
A (Inch) |
B (Inch) |
C (Inch) |
D (Inch) |
Bolt Hole Size |
No. of Holes |
Weight (kg) |
| 108025 | 2" - 150 | 2" | 6" | 4.75" | 0.62" | 1" | φ0.75 | 4 | 2.1457 |
| 108026 | 2-1/2" - 150 | 2-1/2" | 7" | 5.5" | 0.69" | 1.12" | φ0.75 | 4 | 3.4182 |
| 108027 | 3" - 150 | 3" | 7.5" | 6" | 0.75" | 1.19" | φ0.75 | 4 | 3.9051 |
| 108028 | 4" - 150 | 4" | 9" | 7.5" | 0.94" | 1.31" | φ0.75 | 8 | 5.5254 |
| 108029 | 6" - 150 | 6" | 11" | 9.5" | 1" | 1.56" | φ0.875 | 8 | 7.5328 |
