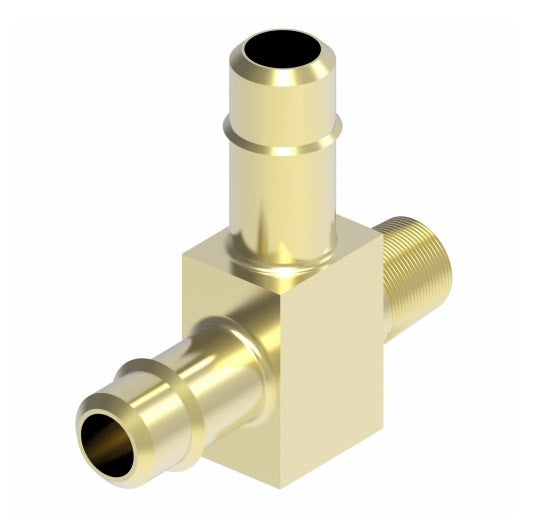

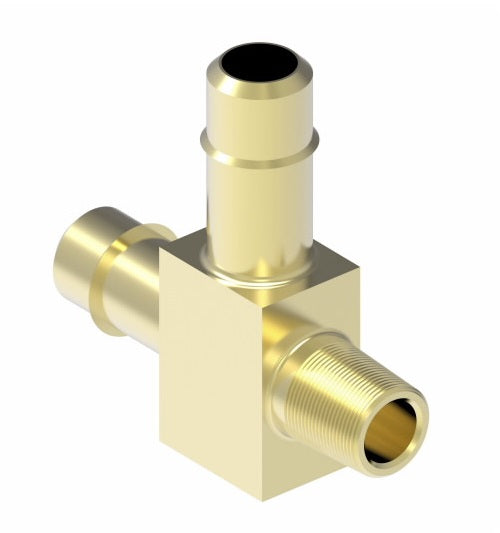

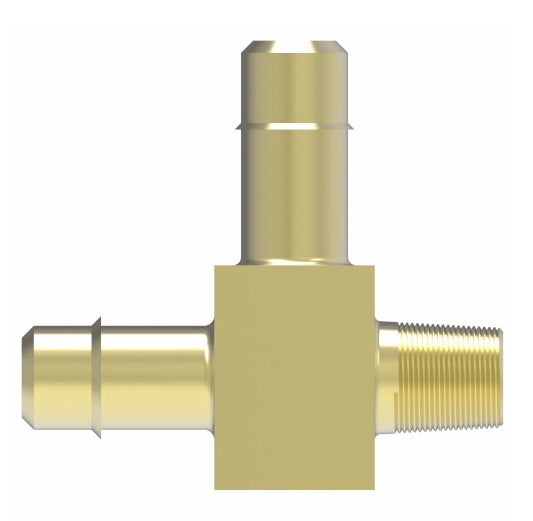

1071X4 by Danfoss | Mini-Barb Fitting | Male Run Tee (Short Thread) | for 1/4" Tubing OD x 1/4" Tubing OD | 1/8" Male Pipe | Brass
1071X4 by Danfoss | Mini-Barb Fitting | Male Run Tee (Short Thread) | for 1/4" Tubing OD x 1/4" Tubing OD | 1/8" Male Pipe | Brass
1071X4 by Danfoss | Mini-Barb Fitting | Male Run Tee (Short Thread) | for 1/4" Tubing OD x 1/4" Tubing OD | 1/8" Male Pipe | Brass

1071X4 by Danfoss | Mini-Barb Fitting | Male Run Tee (Short Thread) | for 1/4" Tubing OD x 1/4" Tubing OD | 1/8" Male Pipe | Brass

Sale price$9.31
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.
Brass
Part Number		 Tubing O.D. Male Pipe Thread D1 L M N
1071X4 1/4" 1/8" 0.188" 1.21" 0.71" 0.59"

* PTF Short Thread

Additional Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Hose Barb
  • 1/8in Male NPT
  • 1/4in Hose Barb
  • Some Ends Match
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
