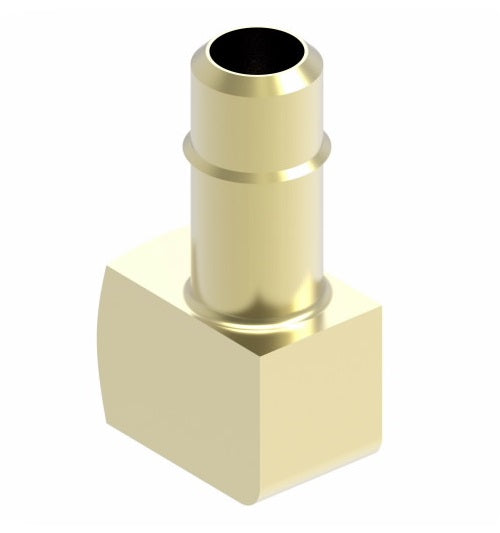

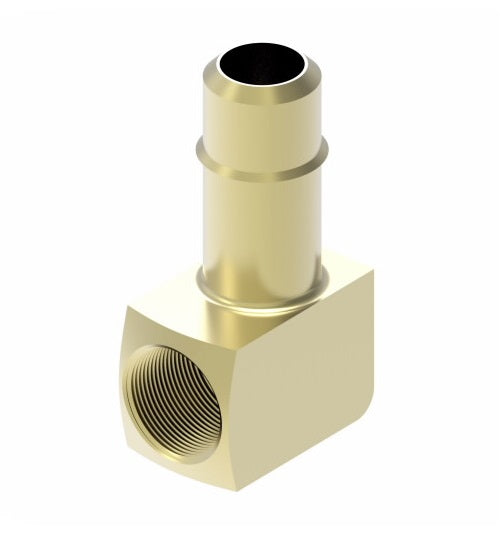

1070X6X2 by Danfoss | Mini-Barb Fitting | Female Connector 90° Elbow | for 3/8" Tubing OD | 1/8" Female Pipe | Brass
1070X6X2 by Danfoss | Mini-Barb Fitting | Female Connector 90° Elbow | for 3/8" Tubing OD | 1/8" Female Pipe | Brass
1070X6X2 by Danfoss | Mini-Barb Fitting | Female Connector 90° Elbow | for 3/8" Tubing OD | 1/8" Female Pipe | Brass

1070X6X2 by Danfoss | Mini-Barb Fitting | Female Connector 90° Elbow | for 3/8" Tubing OD | 1/8" Female Pipe | Brass

Sale price$19.42

Aeroquip® by Danfoss
Mini-Barb Fitting - Female Connector
Buy More, Save More!
Quantity Price Each
10–39 $18.25
40–79 $16.51
80+ $14.57
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/8in Hose Barb
  • 1/8in Female NPT
Material(s):
  • Brass
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.
Brass
Part Number		 Tubing O.D. Female Pipe
Thread		 M N
1070X4 1/4" 1/8" 0.750" 0.580"
1070X6X2 3/8" 1/8" 0.780" 0.480"
1070X6 3/8" 1/4" 0.840" 0.800"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
