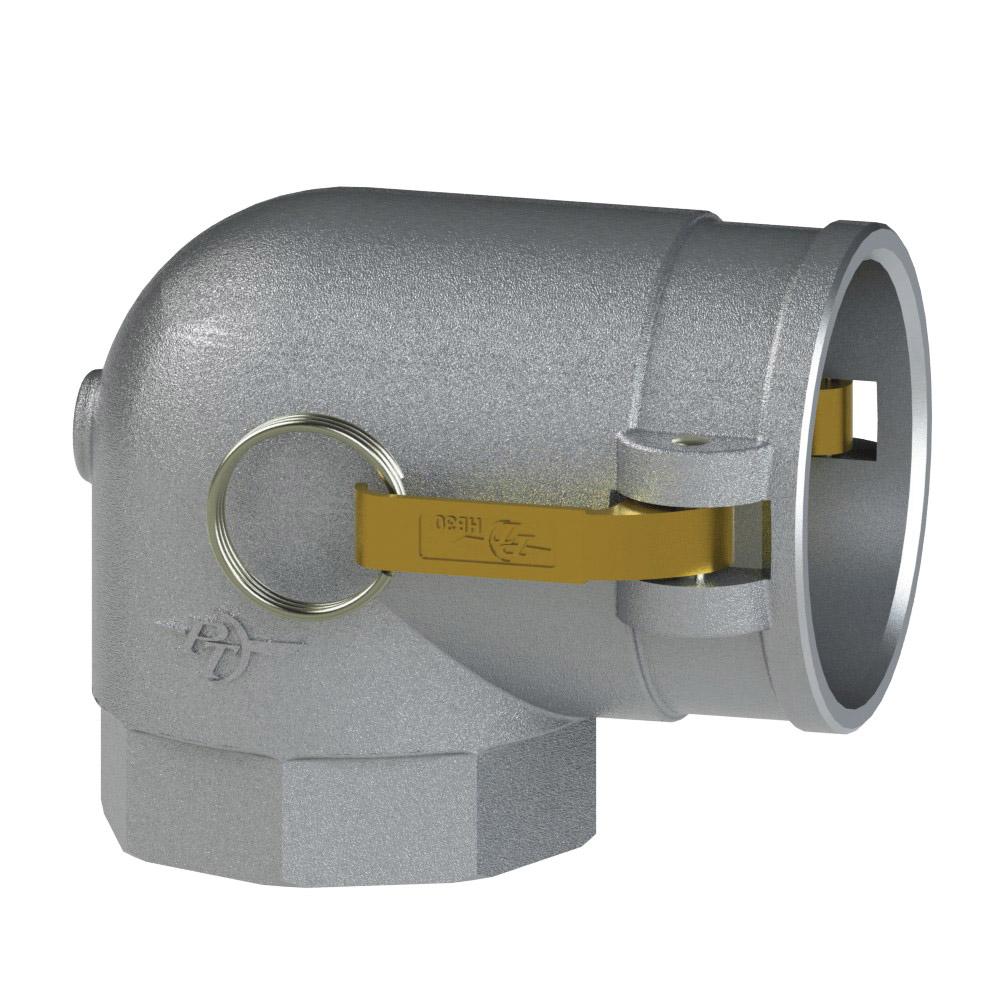

1070840 (40H) by PT-Coupling | Cam & Groove Adapter | Type H | 90° Elbow | 4" Female NPT x 4" Coupler | Aluminum/HB | Buna-N Seal

1070840 (40H) by PT-Coupling | Cam & Groove Adapter | Type H | 90° Elbow | 4" Female NPT x 4" Coupler | Aluminum/HB | Buna-N Seal

Sale price$166.84

PT Coupling
Cam & Groove (Camlock) Adapter | Type H | 90° Elbow | Female NPT x Coupler | Aluminum/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $156.83
20–59 $141.81
60+ $125.13
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Cam & Groove Type:

Type D

Ends Configuration:
  • 4in Female NPT
  • 4in Female Cam & Groove
Features & Applications:
  • HB cam arms are made of Brass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Orientation Female NPT
Thread		 Coupler
Size		 Max. Allowable
Working Press.
(PSI)*
15H 1070815 90° 1-1/2" 1-1/2" 250 PSI
20H 1070820 90° 2" 2" 250 PSI
25H 1070825 90° 2-1/2" 2-1/2" 200 PSI
30H 1070830 90° 3" 3" 200 PSI
40H 1070840 90° 4" 4" 150 PSI
60H 1000860 90° 6" 6" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
