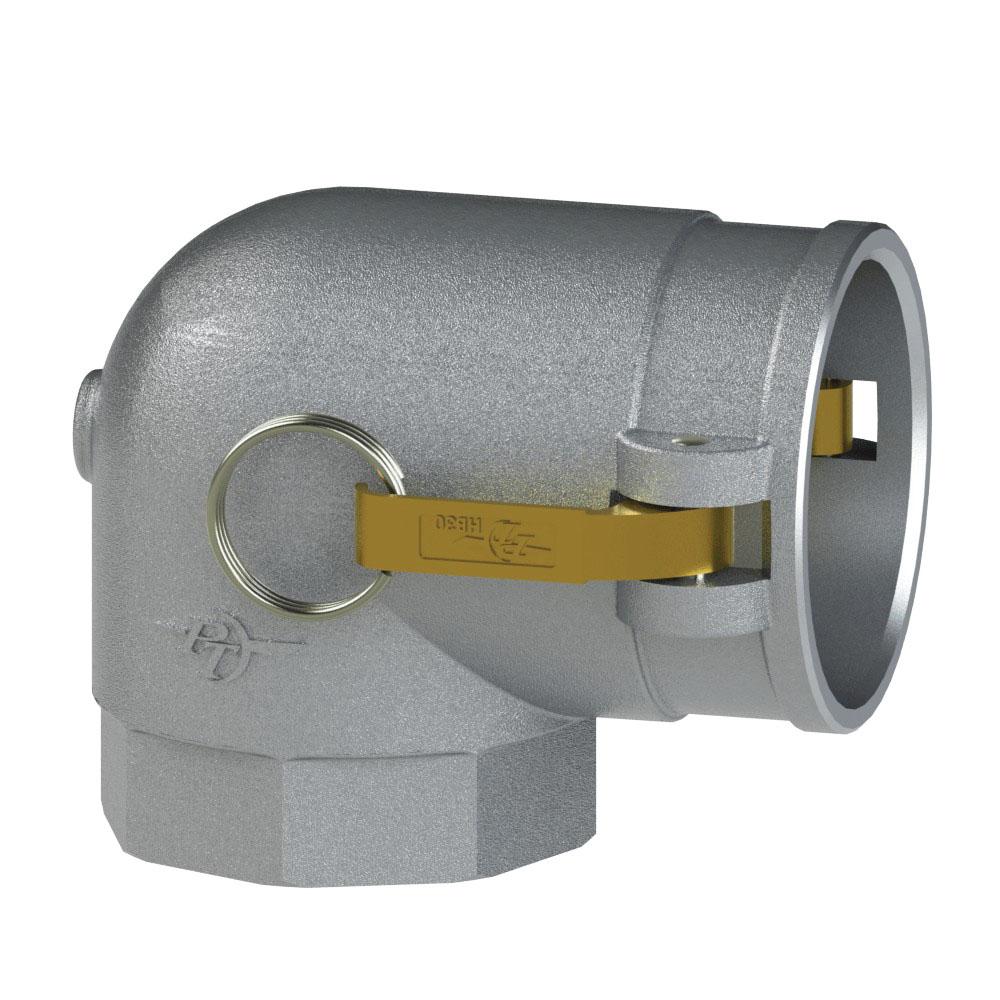

1070720 (20G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 2" Female NPT x 2" Coupler | Aluminum/HB | Buna-N Seal

1070720 (20G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 2" Female NPT x 2" Coupler | Aluminum/HB | Buna-N Seal

Sale price$102.77

PT Coupling
Cam & Groove (Camlock) Adapter with Check Valve | Type G | 90° Elbow | Female NPT x Coupler | Aluminum/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $96.60
20–59 $87.35
60+ $77.08
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Cam & Groove Type:

Type D

Ends Configuration:
  • 2in Female NPT
  • 2in Female Cam & Groove
Features & Applications:
  • HB cam arms are made of Brass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Aluminum & Brass G-Elbows are assembled with Brass check valve assemblies.
  • Less than 5 PSI required to start flow in the full flow direction.
  • Made in the USA
Part
Name		 Item # Orientation Female NPT
Thread		 Coupler
Size		 Max. Allowable
Working Press.
(PSI)*
15G 1070715 90° 1-1/2" 1-1/2" 250 PSI
20G 1070720 90° 2" 2" 250 PSI
30G 1070730 90° 3" 3" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
