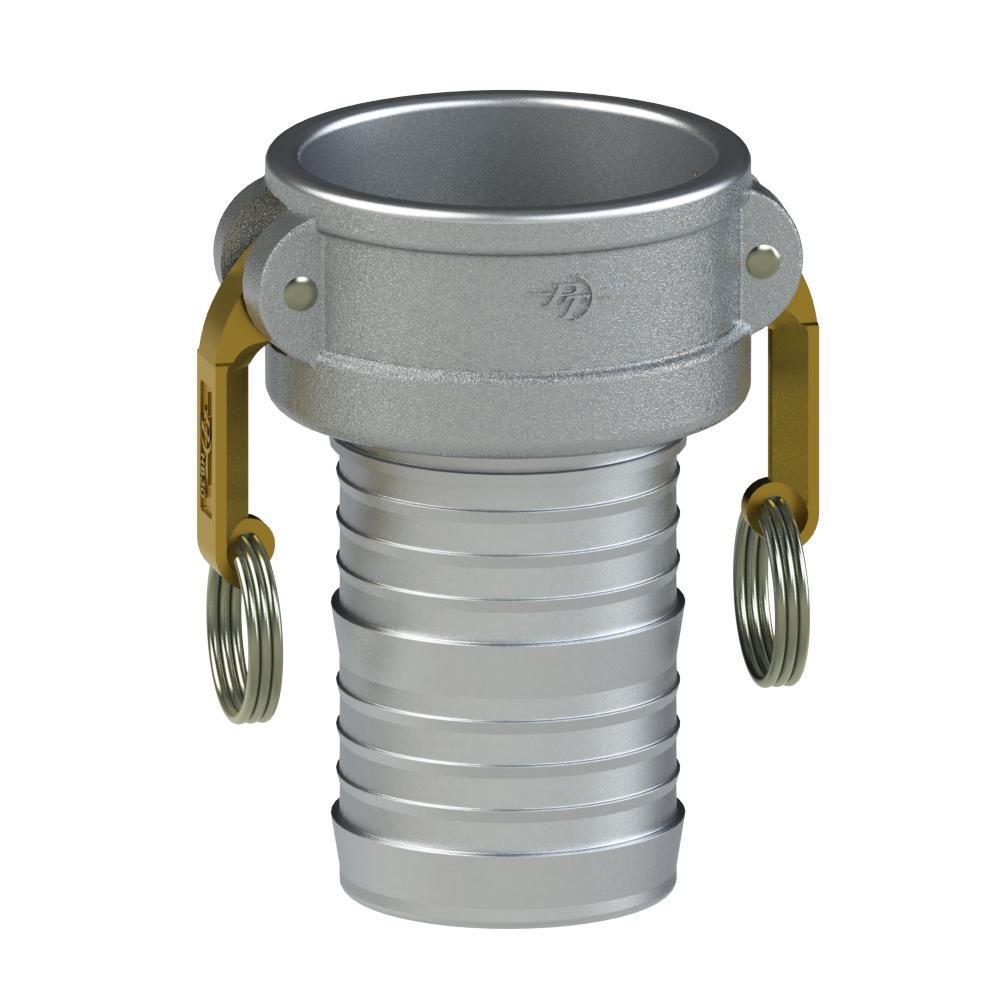

1070325 (25C) by PT-Coupling | Cam & Groove Fitting | Type C | 2-1/2" Coupler x 2-1/2" Hose Shank | Aluminum/HB | Buna-N Seal

1070325 (25C) by PT-Coupling | Cam & Groove Fitting | Type C | 2-1/2" Coupler x 2-1/2" Hose Shank | Aluminum/HB | Buna-N Seal

Sale price$54.96

PT Coupling
Cam and Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Aluminum/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $51.66
40–79 $46.72
80+ $41.22
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 2-1/2in Female Cam & Groove
  • 2-1/2in Hose Barb
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT's specially designed multi-barbed shank with interlocking ring allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • HB cam arms are made of Brass.
  • 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Hose
Shank
Size		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Min.
Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
E05C 1070301 1/2" 1/2" 4.21" 1.82" 2.69" 1.25" 0.38" 0.33" 1.03" 250 PSI 0.225 lbs.
07C 1070307 3/4" 3/4" 4.51" 2.11" 3.55" 1.25" 0.53" 0.40" 0.97" 250 PSI 0.295 lbs.
10C 1070310 1" 1" 5.10" 2.44" 4.06" 1.56" 0.78" 0.69" 1.19" 250 PSI 0.445 lbs.
12C 1070312 1-1/4" 1-1/4" 6.86" 3.26" 4.44" 1.84" 0.97" 0.88" 1.44" 250 PSI 0.791 lbs.
15C 1070315 1-1/2" 1-1/2" 7.16" 3.56" 4.82" 1.88" 1.22" 1.15" 1.48" 250 PSI 0.894 lbs.
20C 1070320 2" 2" 7.54" 3.94" 5.53" 2.15" 1.71" 1.60" 1.75" 250 PSI 1.144 lbs.
25C 1070325 2-1/2" 2-1/2" 8.03" 4.43" 5.93" 2.18" 2.16" 2.06" 1.75" 200 PSI 1.574 lbs.
30C 1070330 3" 3" 9.56" 5.46" 6.32" 2.27" 2.65" 2.55" 1.84" 200 PSI 2.146 lbs.
40C 1070340 4" 4" 10.66" 6.56" 6.64" 2.34" 3.53" 3.43" 1.87" 150 PSI 3.341 lbs.
50C 1070350 5" 5" 11.67" 7.57" 7.24" 2.44" 4.53" 4.43" 1.97" 75 PSI 4.011 lbs.
60C 1070360 6" 6" 16.26" 10.16" 9.50" 2.70" 5.53" 5.43" 2.19" 75 PSI 7.035 lbs.
80C 1070380** 8" 8" 18.23" 12.13" 9.50" 2.72" 7.53" 7.38" 2.15" 50 PSI 11.301 lbs.
100C 1070390** 10" 10" 20.66" 14.56" 12.00" 3.20" 9.40" 9.20" 2.55" 50 PSI 19.331 lbs.

** 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
