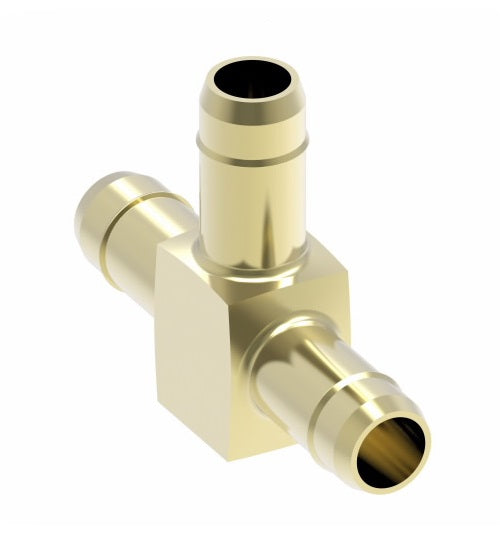

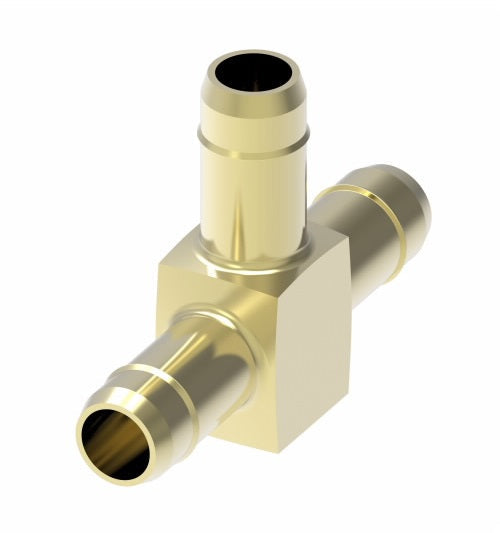

1064X4 by Danfoss | Mini-Barb Fitting | Union Tee | for 1/4" Tubing OD x 1/4" Tubing OD x 1/4" Tubing OD | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Mini-Barb Fitting - Union Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.17 |
| 40–79 | $2.86 |
| 80+ | $2.53 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
 |
|||
|---|---|---|---|
| Tubing OD | D | E | J |
| 5/32" | 0.062" | 0.113" | 0.380" |
| *3/16" | 0.078" | 0.125" | 0.500" |
| 1/4" | 0.127" | 0.189" | 0.500" |
| 3/8" | 0.196" | 0.270" | 0.500" |
| 1/2" | 0.312" | 0.395" | 0.630" |
*No barb on 3/16" size.
 |
||||
|---|---|---|---|---|
| Brass Part Number |
Tubing O.D. | M | N | M1 |
| 1064X4 | 1/4" | 0.70" | 0.70" | 0.70" |
| 1064X6X6X4 | 3/8"x3/8"x1/4" | 0.70" | 0.74" | 0.70" |
| 1064X6 | 3/8" | 0.68" | 0.67" | 0.68" |
| 1064X6X8X6 | 3/8"x1/2"x3/8" | 0.76" | 0.75" | 0.86" |
| 1064X8X8X4 | 1/2"x1/2"x1/4" | 0.86" | 0.80" | 0.86" |
| 1064X8X8X6 | 1/2"x1/2"x3/8" | 0.86" | 0.76" | 0.86" |
| 1064X8 | 1/2" | 0.86" | 0.86" | 0.86" |
