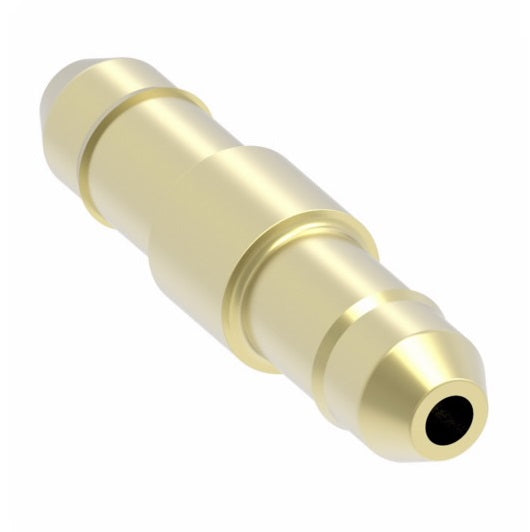

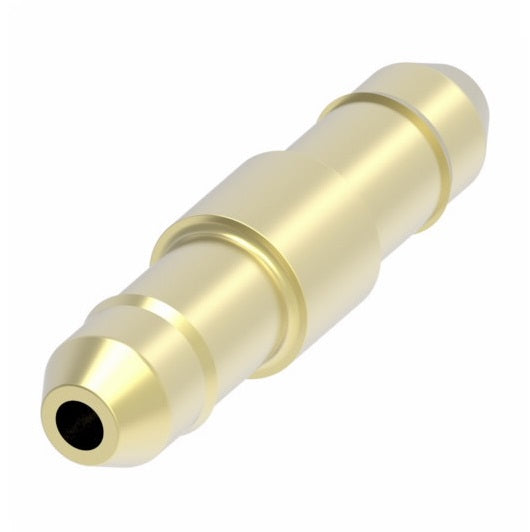

1062X8 by Danfoss | Mini-Barb Fitting | Union | for 1/2" Tubing OD x 1/2" Tubing OD | Brass
1062X8 by Danfoss | Mini-Barb Fitting | Union | for 1/2" Tubing OD x 1/2" Tubing OD | Brass
1062X8 by Danfoss | Mini-Barb Fitting | Union | for 1/2" Tubing OD x 1/2" Tubing OD | Brass

1062X8 by Danfoss | Mini-Barb Fitting | Union | for 1/2" Tubing OD x 1/2" Tubing OD | Brass

Minimum Order Quantity: 5 Units

Sale price$7.68

Aeroquip® by Danfoss
Mini-Barb Fitting - Union

In stock
Buy More, Save More!
Quantity Price Each
20–39 $7.22
40–79 $6.53
80+ $5.76
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 1/2in Hose Barb
  • Some Ends Match
Material(s):
  • Brass
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.
Brass
Part Number		 Tubing O.D. Diameter
C		 L
1062X4X3 1/4 x 3/16* 1/4" 1.25"
1062X4 1/4" 1/4" 0.81"
1062X4L (Long) 1/4" 1/4" 1.25"
1062X6X4 3/8 x 1/4 5/16" 1.19"
1062X6 3/8" 5/16" 1.19"
1062X8X6 1/2 x 3/8" 1/2" 1.33"
1062X8 1/2" 1/2" 1.45"

* No barb on 3/16" end.

"L" Suffix designates long Union.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
