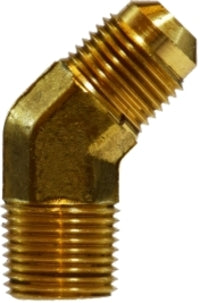

10450 (10-450) by Midland | SAE 45° Flare Fitting | 5/16" Male SAE 45° Flare x 1/8" Male NPTF | 45° Elbow | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - SAE 45° Flare - 45° Elbow - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.63 |
| 40–79 | $5.09 |
| 80+ | $4.49 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
| Applications: | LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. | Used With: | Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | SAE# 010302 | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military standards). |
| Vibration: | Good resistance - use long nut when greater vibration resistance is required. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures |
| Tolerance: | +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. | Lead Free: | Not Lead Free |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" |
| Thread Size B | 5/16-24 | 3/8-24 | 7/16-20 | 1/2-20 | 5/8-18 | 11/16-16 | 3/4-16 | 7/8-14 | 1-1/16-14 |
| Crossover Series: | ||||||||
|---|---|---|---|---|---|---|---|---|
| 54 | 4945 | 40945 | E145 | 159F | 654F | 59FF | 254 | 47 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Male SAE 45° Flare x Male NPTF | A | B | Body Size | Approx. Weight (Lbs.) |
| 10448 (10-448) |
1/4" x 1/8" | 0.67" | 0.64" | 0.41" | 0.04 |
| 10448B* (10-444B) |
1/4" x 1/8" | 0.67" | 0.64" | 0.44" | 0.04 |
| 10449 (10-449) |
1/4" x 1/4" | 0.75" | 0.86" | 0.53" | 0.07 |
| 10450 (10-450) |
5/16" x 1/8" | 0.78" | 0.64" | 0.53" | 0.06 |
| 10451 (10-451) |
5/16" x 1/4" | 0.81" | 0.86" | 0.53" | 0.07 |
| 10452 (10-452) |
3/8" x 1/4" | 0.91" | 0.86" | 0.53" | 0.09 |
| 10452B* (10-452B) |
3/8" x 1/4" | 0.89" | 0.86" | 0.64" | 0.12 |
| 10453 (10-453) |
3/8" x 3/8" | 0.93" | 0.94" | 0.59" | 0.11 |
| 10454 (10-454) |
3/8" x 1/2" | 0.99" | 1.17" | 0.75" | 0.19 |
| 10455 (10-455) |
1/2" x 3/8" | 1.07" | 0.88" | 0.59" | 0.12 |
| 10455B* (10-455B) |
1/2" x 3/8" | 1.06" | 0.94" | 0.76" | 0.18 |
| 10456 (10-456) |
1/2" x 1/2" | 1.12" | 1.18" | 0.75" | 0.20 |
| 10460 (10-460) |
5/8" x 3/8" | 1.13" | 0.95" | 0.81" | 0.22 |
| 10457 (10-457) |
5/8" x 1/2" | 1.12" | 1.17" | 0.78" | 0.18 |
| 10458 (10-458) |
3/4" x 1/2" | 1.28" | 1.16" | 0.88" | 0.26 |
| 10459 (10-459) |
3/4" x 3/4" | - | - | - | 0.31 |
