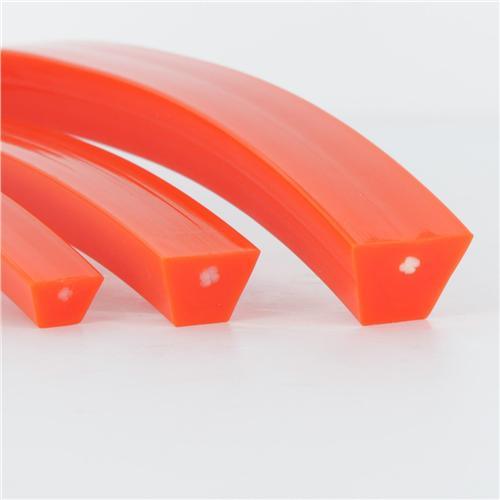

1032062 by Fenner Drives | Eagle 85 V Belting | Cross Section D/32 Ribbed | 1-5/16" w x 3/4" h | Non-Reinforced | Orange | 100ft
Fenner Drives - Conveying - V Belting - Non-Reinforced
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,350.98 |
| 4–9 | $2,250.94 |
| 10+ | $2,000.83 |
Discounts applied in cart/checkout.
| Overview: | |||
|---|---|---|---|
|
|||
| Description: | |||
|
SPECIFICATIONS
| Profile Shape: | D/32 Ribbed | Profile Size: | N/A |
|---|---|---|---|
| Reinforcement: | None | Color: | N/A |
| Compliancy: | N/A | Durometer: | N/A |
| Material: | N/A | Package Length: | 100'/30.5m |
| Part Number | Material & Color | Cross Section | Dimensions Ø | Minimum Pulley Ø | Working Load @ Percent Tension | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4% | 6% | 8% | 10% | |||||||||||||
| in | mm | in | mm | lbs | N | lbs | N | lbs | N | lbs | N | lbs/ft | kg/m | |||
| 1032062 | Eagle Orange 85 | D/32 Ribbed | 1-5/16 x 3/4" | 33.5 x 19mm | 6" | 152mm | 22.9 | 101.8 | 38.8 | 172.5 | 54.4 | 242 | 68.9 | 306.7 | 0.379 lbs | 0.564 kg |
* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
