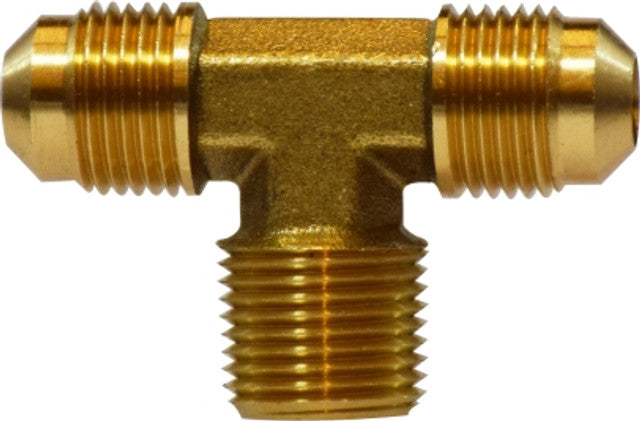

10219 (10-219) by Midland | SAE 45° Flare Fitting | Male Branch Forged | 5/8" Male SAE 45° Flare x 5/8" Male SAE 45° Flare x 3/4" Male NPT | Tee | Brass
Midland Industries
Brass Fitting - SAE 45° Flare - Male Branch Tee - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $25.78 |
| 40–79 | $23.32 |
| 80+ | $20.57 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Specifications and Approvals:
| Applications: | LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. | Used With: | Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | SAE# 010425 | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military standards). |
| Vibration: | Good resistance - use long nut when greater vibration resistance is required. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures |
| Tolerance: | +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. | Lead Free: | Not Lead Free |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" |
| Thread Size B | 5/16-24 | 3/8-24 | 7/16-20 | 1/2-20 | 5/8-18 | 11/16-16 | 3/4-16 | 7/8-14 | 1-1/16-14 |
| Crossover Series: | |||||
|---|---|---|---|---|---|
| 45R | 245 | 405 | T1 | 145F | 45 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Male Flare (1) x Male Flare (2) x Male NPT (3) | A | B | Body Size | Approx. Weight (Lbs.) |
| 10203 (10-203) |
3/16" x 3/16" x 1/8" | 0.75" | 0.75" | 0.36" | 0.10 |
| 10204 (10-204) |
1/4" x 1/4" x 1/8" | 0.78" | 0.75" | 0.36" | 0.05 |
| 10205 (10-205) |
1/4" x 1/4" x 1/4" | 0.88" | 0.88" | 0.44" | 0.08 |
| 10206 (10-206) |
1/4" x 1/4" x 3/8" | 0.92" | 1.00" | 0.47" | 0.10 |
| 10207 (10-207) |
5/16" x 5/16" x 1/8" | 0.89" | 0.78" | 0.44" | 0.08 |
| 10208 (10-208) |
5/16" x 5/16" x 1/4" | 0.94" | 0.94" | 0.44" | 0.08 |
| 10209 (10-209) |
3/8" x 3/8" x 1/8" | 1.00" | 0.91" | 0.44" | 0.14 |
| 10210 (10-210) |
3/8" x 3/8" x 1/4" | 1.00" | 0.94" | 0.44" | 0.12 |
| 10211 (10-211) |
3/8" x 3/8" x 3/8" | 1.00" | 1.00" | 0.47" | 0.13 |
| 10212 (10-212) |
3/8" x 3/8" x 1/2" | 1.12" | 1.22" | 0.69" | 0.22 |
| 10213 (10-213) |
1/2" x 1/2" x 1/4" | 1.16" | 1.00" | 0.59" | 0.20 |
| 10214 (10-214) |
1/2" x 1/2" x 3/8" | 1.16" | 1.14" | 0.59" | 0.19 |
| 10215 (10-215) |
1/2" x 1/2" x 1/2" | 1.22" | 1.22" | 0.69" | 0.24 |
| 10216 (10-216) |
1/2" x 1/2" x 3/4" | 1.38" | 1.41" | 0.88" | 0.22 |
| 10217 (10-217) |
5/8" x 5/8" x 3/8" | 1.38" | 1.25" | 0.69" | 0.24 |
| 10218 (10-218) |
5/8" x 5/8" x 1/2" | 1.41" | 1.31" | 0.69" | 0.29 |
| 10219 (10-219) |
5/8" x 5/8" x 3/4" | 1.41" | 1.41" | 0.88" | 0.36 |
| 10220 (10-220) |
3/4" x 3/4" x 1/2" | 1.63" | 1.59" | 0.88" | 0.49 |
| 10221 (10-221) |
3/4" x 3/4" x 1/2" | - | - | - | 0.48 |
