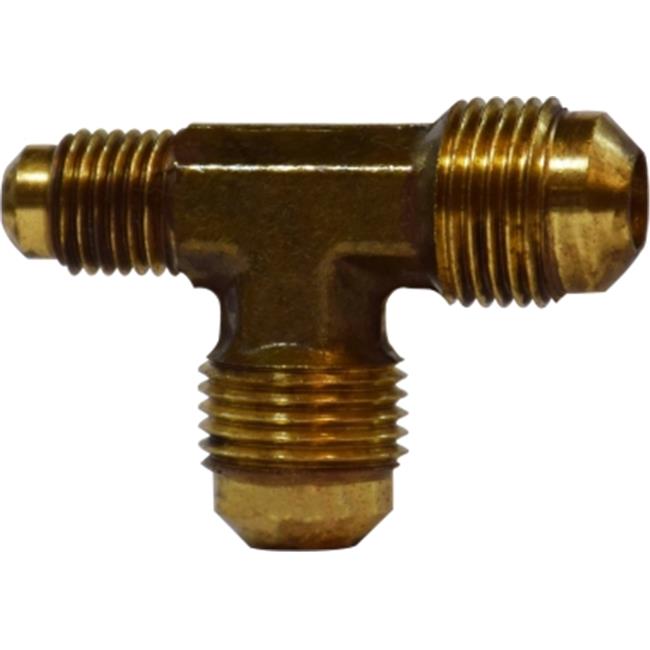

10171 (10-171) by Midland | SAE 45° Flare Fitting | Reducing | 5/16" Male SAE 45° Flare x 5/16" Male SAE 45° Flare x 1/4" Male SAE 45° Flare | Tee | Brass
Midland Industries
Brass Fitting - SAE 45° Flare - Reducing Tee - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.71 |
| 40–79 | $10.59 |
| 80+ | $9.35 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Specifications and Approvals:
| Applications: | LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. | Used With: | Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military standards). |
| Vibration: | Good resistance - use long nut when greater vibration resistance is required. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures |
| Tolerance: | +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. | Lead Free: | Not Lead Free |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" |
| Thread Size B | 5/16-24 | 3/8-24 | 7/16-20 | 1/2-20 | 5/8-18 | 11/16-16 | 3/4-16 | 7/8-14 | 1-1/16-14 |
| Crossover Series: | ||||||
|---|---|---|---|---|---|---|
| 44FR | 509 | 144F | TR2 | 659F | 684F | 44R |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Thread Size UNF 1 x 2 x 3 |
A | C | Body Size | Approx. Weight (Lbs.) |
| 10170 (10-170) |
1/4" x 1/4" x 3/8" | 0.91" | 1.00" | 0.44" | 0.10 |
| 10171 (10-171) |
5/16" x 5/16" x 1/4" | 0.94" | 0.94" | 0.44" | 0.12 |
| 10172 (10-172) |
3/8" x 1/4" x 1/4" | 0.91" | 1.00" | 0.44" | 0.10 |
| 10173 (10-173) |
3/8" x 1/4" x 3/8" | 1.00" | 0.91" | 0.44" | 0.12 |
| 10174 (10-174) |
3/8" x 3/8" x 1/4" | 1.00" | 0.88" | 0.44" | 0.11 |
| 10175 (10-175) |
3/8" x 3/8" x 1/2" | 1.00" | 1.19" | 0.59" | 0.14 |
| 10176 (10-176) |
3/8" x 3/8" x 5/8" | 1.16" | 1.44" | 0.69" | 0.16 |
| 10178 (10-178) |
1/2" x 3/8" x 3/8" | 1.16" | 1.12" | 0.59" | 0.18 |
| 10179 (10-179) |
1/2" x 3/8" x 1/2" | 1.16" | 1.09" | 0.59" | 0.18 |
| 10180 (10-180) |
1/2" x 1/2" x 1/4" | 1.16" | 0.97" | 0.59" | 0.18 |
| 10181 (10-181) |
1/2" x 1/2" x 3/8" | 1.16" | 1.12" | 0.59" | 0.19 |
| 10182 (10-182) |
1/2" x 1/2" x 5/8" | 1.28" | 1.41" | 0.69" | 0.28 |
| 10187 (10-187) |
5/8" x 1/2" x 5/8" | 1.44" | 1.33" | 0.69" | 0.27 |
| 10188 (10-188) |
5/8" x 5/8" x 3/8" | 1.38" | 1.16" | 0.69" | 0.30 |
| 10189 (10-189) |
5/8" x 5/8" x 1/2" | 1.38" | 1.28" | 0.69" | 0.28 |
| 10197 (10-197) |
3/4" x 3/4" x 5/8" | - | - | - | 0.36 |
