10160 by Midland | SAE 45° Flare Fitting | Union Forged | 5/16" Male SAE 45° Flare | Tee | Brass
Midland Industries

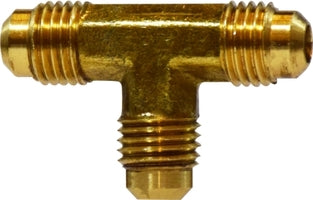

Brass Fitting - SAE 45° Flare - Male Union Forged Tee - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.56 |
| 40–79 | $7.74 |
| 80+ | $6.83 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. | Used With: | Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | SAE# 010401 | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military standards). |
| Vibration: | Good resistance - use long nut when greater vibration resistance is required. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures |
| Tolerance: | +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. | Lead Free: | Not Lead Free |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" |
| Thread Size B | 5/16-24 | 3/8-24 | 7/16-20 | 1/2-20 | 5/8-18 | 11/16-16 | 3/4-16 | 7/8-14 | 1-1/16-14 |
| Crossover Series: | |||||
|---|---|---|---|---|---|
| 44F | 404 | 244 | 244F | T2 | 144F |
 |
||||
|---|---|---|---|---|
| Part Number | Male SAE 45° Flare | A | Body Size | Approx. Weight (Lbs.) |
| 10157 (10-157) |
1/8" | 0.67" | 0.36" | 0.04 |
| 10158 (10-158) |
3/16" | 0.75" | 0.36" | 0.06 |
| 10159 (10-159) |
1/4" | 0.78" | 0.36" | 0.06 |
| 10160 (10-160) |
5/16" | 0.91" | 0.44" | 0.10 |
| 10161 (10-161) |
3/8" | 1.00" | 0.44" | 0.12 |
| 10162 (10-162) |
1/2" | 1.16" | 0.59" | 0.19 |
| 10163 (10-163) |
5/8" | 1.41" | 0.69" | 0.30 |
| 10164 (10-164) |
3/4" | 1.64" | 0.88" | 0.53 |
| 10165 (10-165) |
7/8" | 1.75" | 1.25" | 0.93 |
