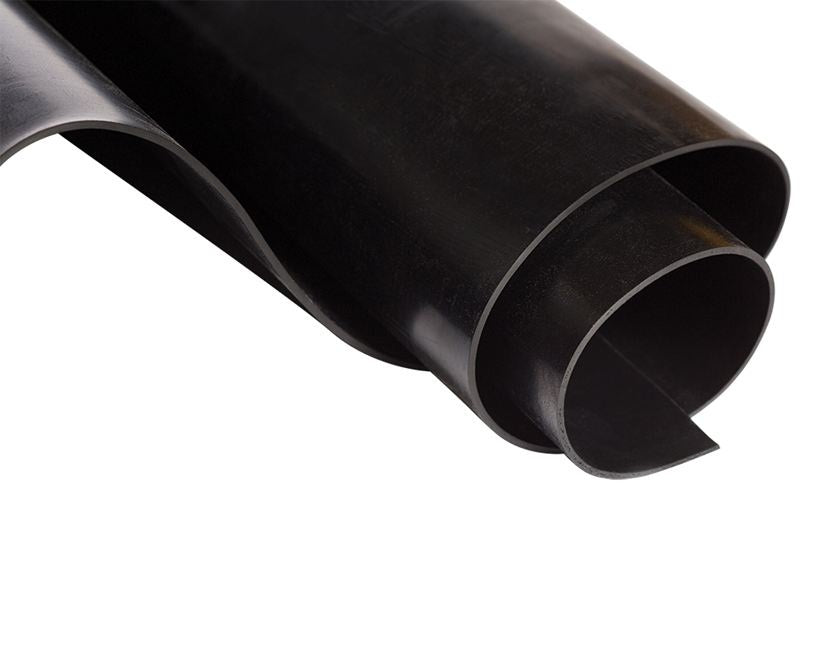

101-08-362 American Biltrite by Kuriyama | IM-2100 Series | Black SBR 2-Ply Cloth Inserted Packing | 1/8" Gauge x 36" Width | 65 +/- 7 Durometer | Nylon Reinforced Rubber | 50ft per Roll
Package Quantity: 50 FT
Buy more, save moreDiscounts applied in cart/checkout.
What are the Applications?
- For use in applications where the stresses are generally static in nature.
What are the Materials?
- An SBR nylon reinforced sheet
- Styrene-Butadiene (SBR)
What are the Specifications?
- ASTM Specification (SI units): ASTM D2240
- Temperature Range: -20° to 180°F (-29° to 82°C)
- Durometer: 65 +/ 7
- Tensile Strength (PSI): 500 PSI typical
- Elongation (%): 250 min.
- Grade: Commercial
- Finish: Smooth
- Powder: No
- Color: Black
- Fabric: Nylon
| Part Number | Gauge x Width (in) |
Fabric Plies |
Avg. Length (Linear Ft. /Roll) |
Surface (sft) |
Approx. Lbs./Roll |
|---|---|---|---|---|---|
| 101-04-362 | 1/16" x 36" | 1 | 100ft | 300 | 148 lbs |
| 101-08-362 | 1/8" x 36" | 2 | 50ft | 150 | 148 lbs |
| 101-12-362 | 3/16" x 36" | 3 | 40ft | 120 | 177 lbs |
| 101-16-362 | 1/4" x 36" | 4 | 40ft | 120 | 236 lbs |
| 102-08-362 | 1/8" x 36" | 1 | 50ft | 150 | 148 lbs |
| 102-12-362 | 3/16" x 36" | 2 | 40ft | 120 | 177 lbs |
Please ensure the product meets your application specification prior to order placement.
Additional Product Data:
Brand:
Series:
Color(s):
Material(s):
