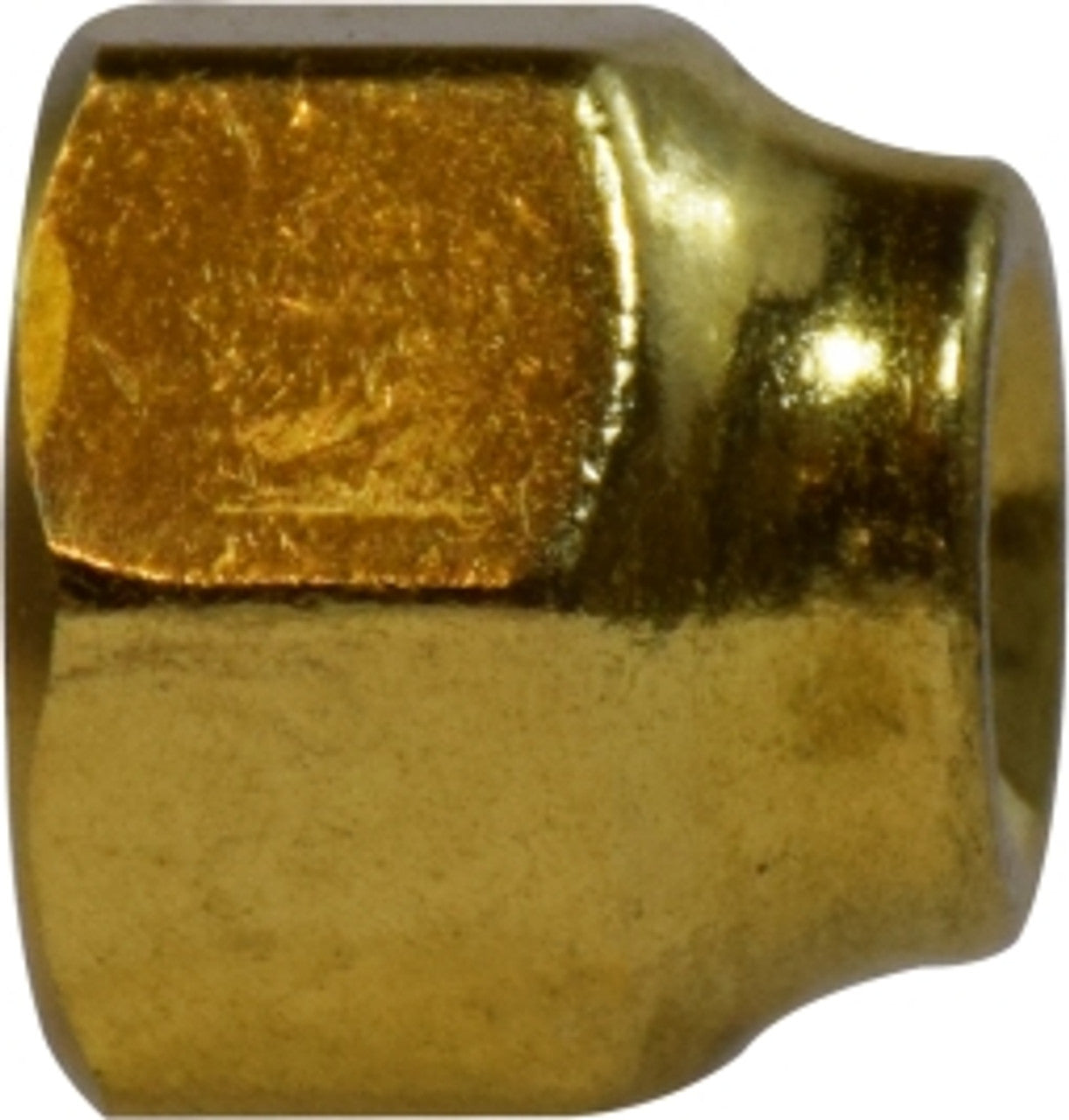

10054 by Midland | SAE 45° Flare Fitting | Forged Reducing Nut | 1/2" Female SAE 45° Flare x 3/8" Hose OD | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - SAE 45° Flare - Forged Reducing Nut - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $4.94 |
| 40–79 | $4.47 |
| 80+ | $3.95 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
Specifications and Approvals:
| Applications: | LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. | Used With: | Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military standards). |
| Vibration: | Good resistance - use long nut when greater vibration resistance is required. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures |
| Tolerance: | +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. | Lead Free: | Not Lead Free |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" |
| Thread Size B | 5/16-24 | 3/8-24 | 7/16-20 | 1/2-20 | 5/8-18 | 11/16-16 | 3/4-16 | 7/8-14 | 1-1/16-14 |
| Crossover Series: | ||||||
|---|---|---|---|---|---|---|
| 660 | 662S | NSR4 | 14FS | 41FRS | 40R | 662-S |
 |
||||
|---|---|---|---|---|
| Part Number | Female SAE 45° Flare x Hose OD | A | Hex | Approx. Weight (Lbs.) |
| 10051 (10-051) |
5/16" x 1/4" | 0.66" | 0.75" | 0.06 |
| 10052 (10-052) |
3/8" x 1/4" | 0.72" | 0.81" | 0.06 |
| 10053 (10-053) |
3/8" x 5/16" | 0.72" | 0.81" | 0.08 |
| 10054 (10-054) |
1/2" x 3/8" | 0.81" | 0.94" | 0.08 |
| 10055 (10-055) |
5/8" x 3/8" | 0.96" | 1.12" | 0.15 |
| 10056 (10-056) |
5/8" x 1/2" | 0.97" | 1.06" | 0.12 |
| 10058 (10-058) |
3/4" x 5/8" | 1.17" | 1.31" | 0.30 |
