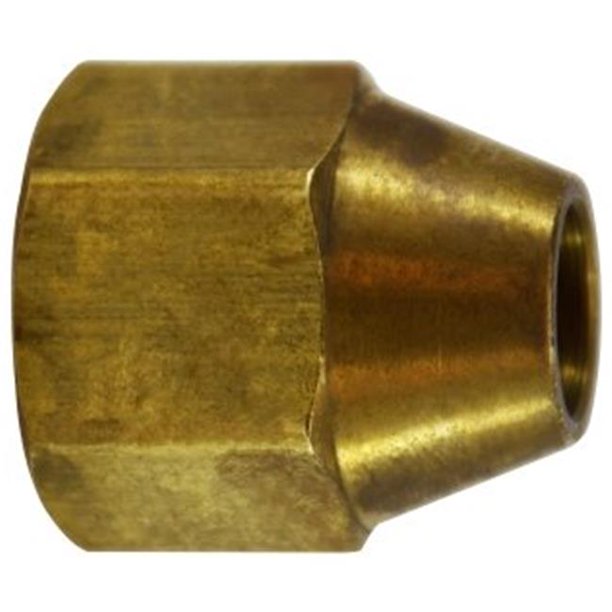

10025 (10-025) by Midland | SAE 45° Flare Fitting | Reducing Short Rod Nut | 5/8" x 1/2" Female SAE 45° Flare | Brass

10025 (10-025) by Midland | SAE 45° Flare Fitting | Reducing Short Rod Nut | 5/8" x 1/2" Female SAE 45° Flare | Brass

Sale price$13.75

Midland Industries
Brass Fitting - SAE 45° Flare - Reducing Short Rod Nut - Brass
Buy More, Save More!
Quantity Price Each
10–39 $12.93
40–79 $11.69
80+ $10.31
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Brass
Specifications and Approvals:
  • ASA
  • ASME
  • SAE
  • MS (Military Standards)
Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Part Number Thread Size UNF A Hex Approx. Weight
(Lbs.)
10023
(10-023)		 3/8" x 1/4" 0.74" 0.81" 0.06
10024
(10-024)		 1/2" x 3/8" 0.86" 0.94" 0.10
10025
(10-025)		 5/8" x 1/2" 0.99" 1.06" 0.12
